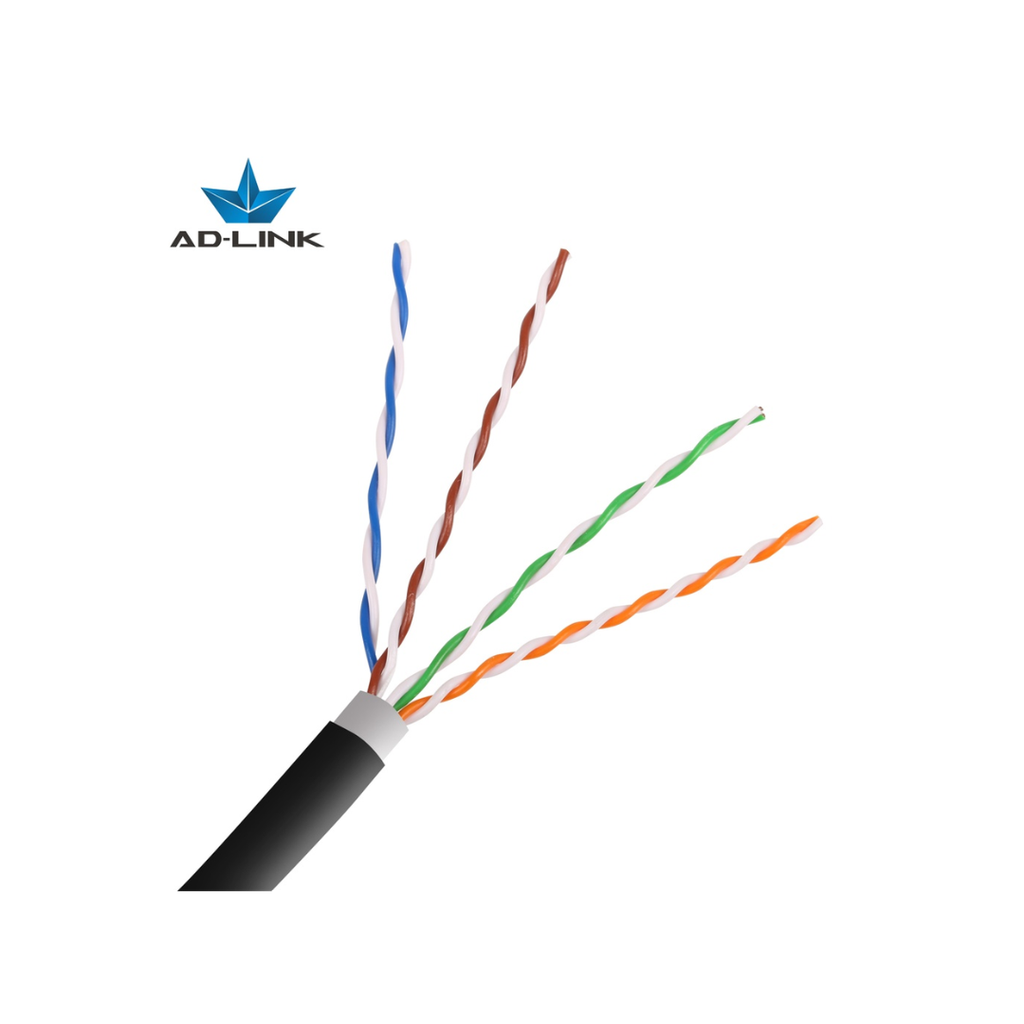

AD-Link Network UTP Cable Double Jacket Cat5e Outdoor Roll 305M
| Brand: AD-LINK |
Categories :
UTP Cables100 Base-TX
100 Base-T4
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155Mbps ATM
Inner Conductor thickness : 0.5mm CCA
Conductor size : 24AWG
Conductor Material : CCA
No. of Conductor : 4P
Insulator Material : HDPE
Jacket : PVC
Shield : Unshielded twisted pairs
Filler : PE
Insulation Thickness : 0.18mm
Jacket Thickness : 0.92-0.95mm
Stretching Resistance : (max)250N
Impedance : 100±15%Ω at 1~100MHz
Transmission Velocity : 65%
Working Capacitance : 5.4nf/100m
Insulation Resistance : 10000Mî©.km
Operating Temperature : ~40 ºC – +70 ºC
