Cudy Outdoor AC1200 Wireless Access Point, Model: AP1200 Outdoor
| Brand: Cudy |

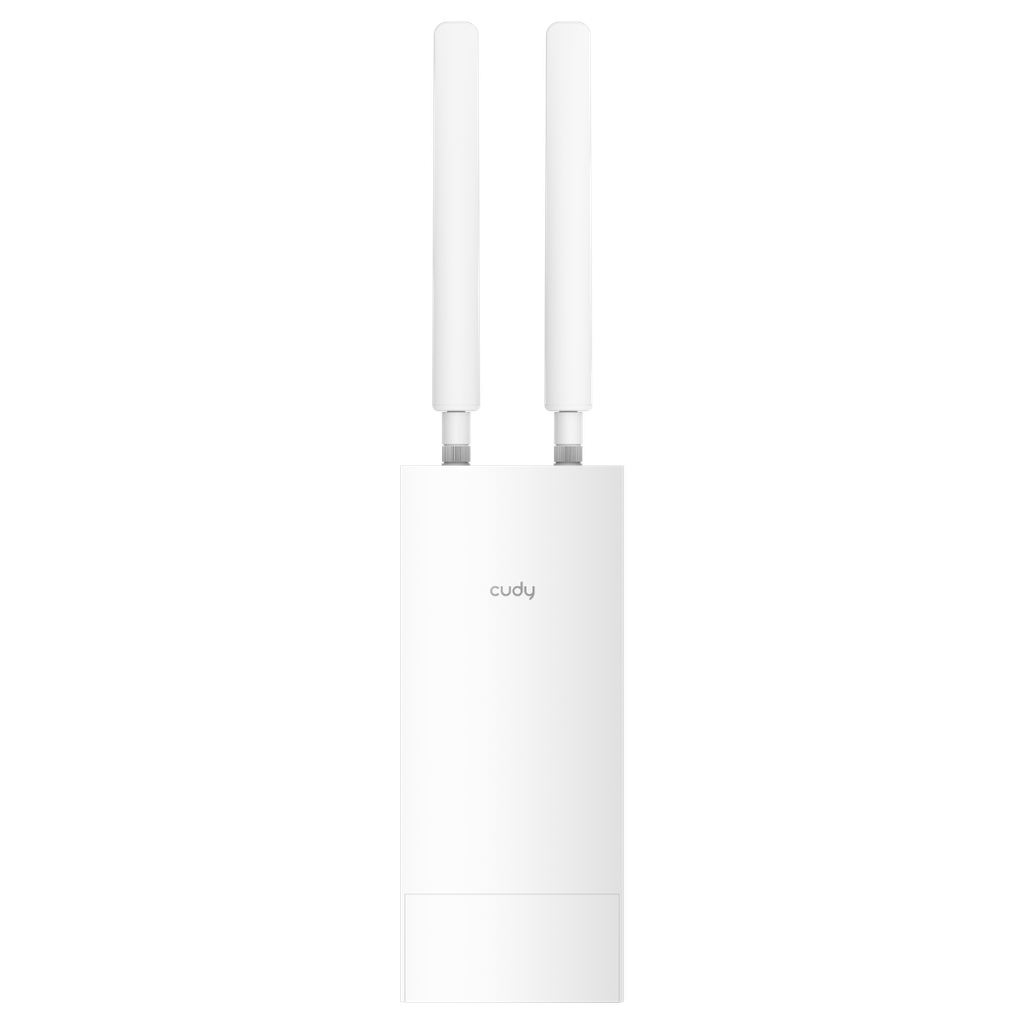

Cudy Outdoor AC1200 Wireless Access Point (Model: AP1200 Outdoor)
Extend reliable and widespread Wi-Fi coverage to your outdoor spaces in Tripoli with the Cudy Outdoor AC1200 Wireless Access Point (Model: AP1200 Outdoor). This robust access point is engineered to deliver stable dual-band AC1200 Wi-Fi (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz), making it an excellent choice for gardens, patios, small farms, parking lots, and outdoor surveillance camera setups.
The AP1200 Outdoor is built to withstand the diverse Lebanese weather, featuring an IP65 weatherproof enclosure that protects it from dust and water. Its 4 KV lightning/surge protection and 8 KV ESD protection at the Ethernet port provide added resilience against electrical disturbances, ensuring continuous operation.
For simplified installation, the AP1200 Outdoor supports 24V Passive Power over Ethernet (PoE), meaning both power and data are delivered over a single Ethernet cable, eliminating the need for a separate power outlet in challenging outdoor locations. While it features a 10/100 Mbps Fast Ethernet port, it still efficiently handles the AC1200 Wi-Fi speeds for typical outdoor usage scenarios.
With detachable high-gain omni-directional antennas, MU-MIMO technology, and versatile operating modes (AP, Router, Repeater, WISP, Client, and Mesh Satellite support), the AP1200 Outdoor provides a flexible and dependable solution to expand your network's reach where traditional indoor routers fall short.
Key Differences from AP1300 Outdoor (for quick comparison):
The AP1200 Outdoor is designed for similar use cases but offers:
- Fast Ethernet Port: It has a 10/100 Mbps Ethernet port (compared to the AP1300's Gigabit port).
- 24V Passive PoE: It supports 24V Passive PoE (compared to the AP1300's 802.3af/at standard PoE and 24-57V Passive PoE).
- CPU/Memory: It typically uses a 580 MHz Single-Core CPU with less RAM/Flash compared to the AP1300's 880 MHz Dual-Core CPU and higher memory.
- Client Capacity: Recommended for up to 30 connected devices, while the AP1300 can handle up to 50 (or 100 on official specs).
Key Features:
- AC1200 Dual-Band Wi-Fi 5: Simultaneous 867 Mbps (5GHz) + 300 Mbps (2.4GHz) for outdoor internet access.
- IP65 Weatherproof & Durable: Dust and water-resistant, built for outdoor resilience (-20°C to 60°C operating temp., extended to -40°C to 65°C).
- 4 KV Lightning/Surge & 8 KV ESD Protection: Enhanced reliability against electrical disturbances.
- Fast Ethernet Port: 10/100 Mbps wired connection for backhaul.
- 24V Passive Power over Ethernet (PoE): Simplifies installation by delivering power and data over one cable (24V PoE Adapter included).
- Detachable Omni-directional Antennas: Two external high-gain antennas (RP-SMA connectors) for customizable signal.
- MU-MIMO & Beamforming: Improves efficiency and signal strength for multiple devices.
- Multiple Operating Modes: Functions as an Access Point, Wi-Fi Router, Range Extender, WISP, Client, or Cudy Mesh Satellite.
- VPN Client Support: Includes WireGuard, PPTP, and L2TP for secure connections.
- Easy Installation: Includes pole and wall mounting kits.
Technical Specifications:
Feature | Specification |
Model | AP1200 Outdoor (V1.0) |
Wi-Fi Standards | IEEE 802.11ac/n/g/b/a (Wi-Fi 5) |
Wi-Fi Speed | AC1200 Total |
5 GHz: Up to 867 Mbps (2x2 MIMO) | |
2.4 GHz: Up to 300 Mbps (2x2 MIMO) | |
Antennas | 2 × Detachable Omni-Directional Antennas (RP-SMA Female Connector) |
Antenna Gain | 2.4 GHz Max: 4.6 dBi; 5 GHz Max: 4.4 dBi |
CPU | 580 MHz Single-Core CPU (MediaTek MT7628DA) |
Memory | 8 MB NOR Flash / 64 MB DDR2 RAM |
Ethernet Ports | 1 × 10/100 Mbps RJ45 Port (Shielded, supports PoE In) |
Power Supply | 24V Passive PoE (+4,5pins; -7,8pins) |
PoE Adapter | 24V Passive PoE Adapter (included) |
Max Power Consumption | ~12 W |
Operating Modes | Access Point (AP), Wireless Router, Range Extender (Repeater), WISP, Client, Cudy Mesh Satellite |
Mesh Support | Cudy Mesh (Wireless backhaul for seamless roaming when paired with a compatible Cudy Mesh router/AP) |
Wireless Features | MU-MIMO, Beamforming, Band Steering, Multiple SSID (up to 8), Transmit Power Control, QoS (WMM), Wireless Schedule |
Security | WPA-PSK, WPA2-PSK, WPA3, MAC Filtering, Wireless Isolation Clients |
VPN Client Support | WireGuard, PPTP, L2TP |
DNS | DNS over TLS (Cloudflare, Google, Quad9, Custom) |
Weather Protection | IP65 (Dustproof and Water-Resistant when installed vertically) |
Lightning Protection | 4 KV Lightning/Surge protection at Ethernet port |
ESD Protection | 8 KV Contact / 15 KV Air ESD Protection |
Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) (Extended operating temperature: -40°C ~ 65°C with industrial grade SIM/storage) |
Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
Dimensions (WxDxH) | 240 × 100 × 53.7 mm (9.45 × 3.94 × 2.11 inches) - Device Body Only |
Mounting | Pole Mounting / Wall Mounting (Kits Included) |
Buttons | Reset Button, WPS Button |
Max Client Capacity | 128 (Recommended Client Upper Limit: 30) |
Certifications | FCC, CE |
Package Contents | AP1200 Outdoor Unit, 2x Detachable Wi-Fi Antennas, 24V Passive PoE Adapter, Power Cord, Mounting Kits, Ethernet Cable, Installation Guide |
