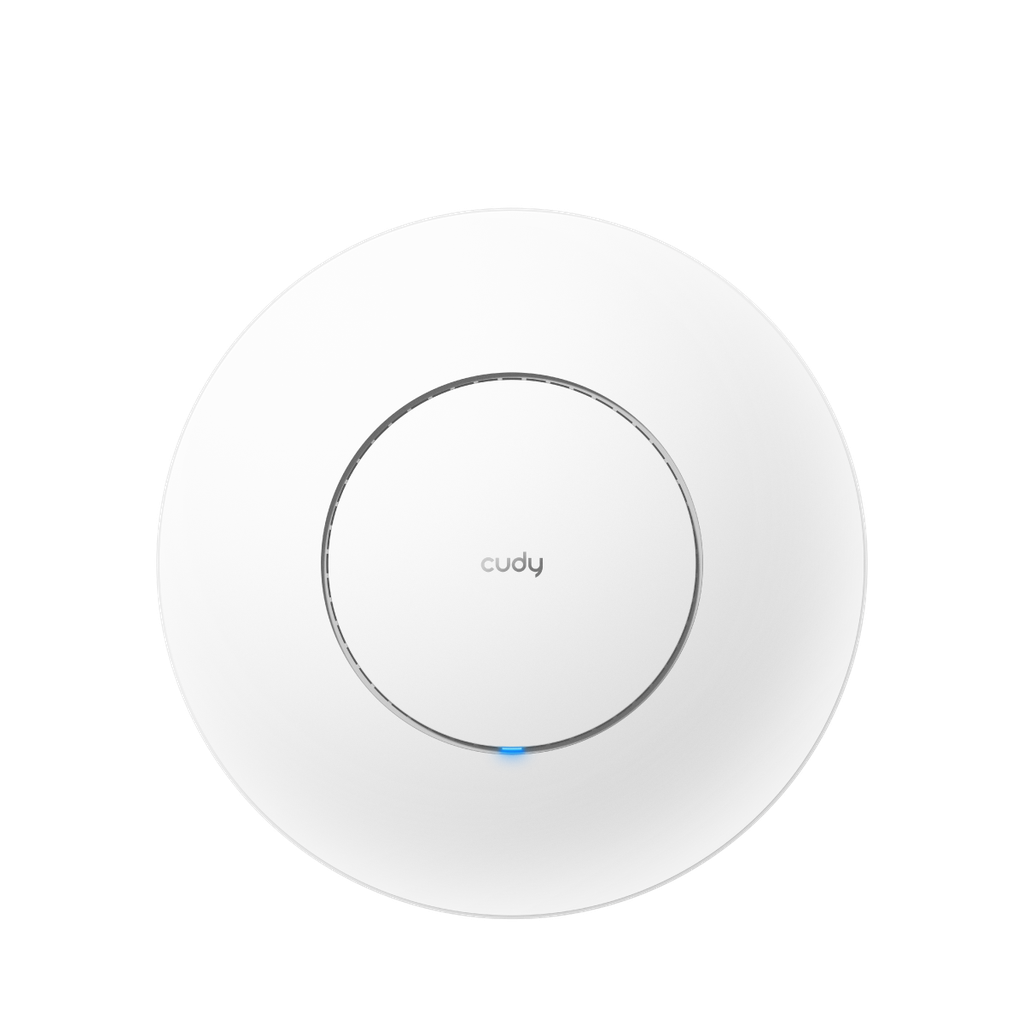

Cudy AC1200 Gigabit Wireless Access Point, Model: AP1300 Indoor
Brand: Cudy |
Model Number :
AP1300Tags :
Cudy AC1200 Gigabit Wireless Access Point, Model: AP1300 Indoor
● AC1200 Dual Band Wi-Fi Speed
● MT7621DA+MT7613B+MT7603E
● 1× Gigabit WAN/LAN (PoE In)
● 802.3at/af PoE, Passive PoE, or DC (DC adapter included)
● Multi-Mode: AP/Router/RE/WISP
● Mesh
Specifications:
Hardware Specs
Model Version | AP1300 1.0 | |
---|---|---|
CPU | Chipset | MT7621DAT+MT7613BEN+MT7603EN |
CPU Details | 880 MHz Dual-Core CPU | |
Memory/Stroage | Flash/ROM | 16 MB (128 Mbit) NOR |
DDR/RAM | 128 MB (1 Gbit) DDR3 | |
Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
Wi-Fi Bands | EU | |
2.4 GHz Wi-Fi Speed | 300 Mbps | |
5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
Wi-Fi Antennas | 4× Internal | |
5 GHz Anntenna Gain Max | 4.64dBi | |
2.4 GHz Antenna Gain Max | 5.31 dBi | |
Range Performance | Max: 120 m (394 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
Wall Performance | Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') | |
Wi-Fi Transmission Power |
| |
Interfaces | Gigabit RJ45 Ports | 1 |
Ethernet Notes | Accepts PoE powering | |
LED | System | |
Physical Buttons | Reset Button | |
Power Input | DC Jack, PoE via Ethernet Port | |
Power | Power Methods |
|
DC | 12V 1A | |
Passive PoE | 24 ~ 57V | |
AC | Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE | |
Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
Max Power Consumption (W) | Max (PoE): 11 W Max (DC): 7.5 W | |
Idle Power Consumption (W) | 4.008W | |
Reliability | System Stability | Watchdog |
ESD Air Protection | 4kV | |
ESD Contact Protection | 8kV | |
Environment | Operating Temperature: -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing | |
Mechanical | Installation |
|
Power | Basic Power Saving | 0 |
Mechanical | Dimension | Φ231.9×57.1 mm Φ9.13×2.25 inches |
Package Content |
| |
Ordering Informaiton | Retail Package Dimension | 283×238×68 mm 11.14×9.37×2.68 inches |
Carton Net Weight | 16.2 kg (35.71 lbs) | |
Carton Gross Weight | 17.2 kg (37.92 lbs) | |
Units per Carton | 20 | |
Carton Dimension | 58×37.5×49.5 cm |
Software Specs
Model Version | AP1300 1.0 | |
---|---|---|
Wireless | Wi-Fi Standards | Wi-Fi 5 |
Max Wi-Fi Modulation | 256-QAM | |
Wi-Fi Efficiency | MU-MIMO | |
Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
Max Capacity | 128 | |
Recommended Client Upper Limit | 50 | |
Max Wi-Fi Channel Width | 80 MHz | |
Wi-Fi Security | WPA-PSK (WPA/WPA2) | |
WPS | true | |
General | Operation Modes |
|
Mesh | Cudy Mesh | |
Mesh Backhaul |
| |
Multi-Band Backhaul | true | |
WAN Mode |
| |
Network | QoS | Per-User Rate Limiting |
DHCP |
| |
IP Versions | IPv4/IPv6 | |
IPv6 Protocols |
| |
IPTV/VLAN |
| |
TTL Customization |
| |
IGMP |
| |
Forwarding |
| |
Firewall |
| |
Application Layer Gateway |
| |
Utilities | VPN Server |
|
VPN Client |
| |
DNS Options |
| |
DNS over TLS Providers |
| |
Captive Portal | true | |
Wake on LAN | true | |
Online Detection | true | |
Management | All Devices Management |
|
Per-Devices Management |
| |
Content Management |
| |
System | LED Control | true |
Local Control Method |
| |
Remote Control Method |
| |
Firmware Upgrade |
| |
Reliability |
| |
Diagnostic Tools |
| |
Languages |
| |
Dashboard | Panel | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
