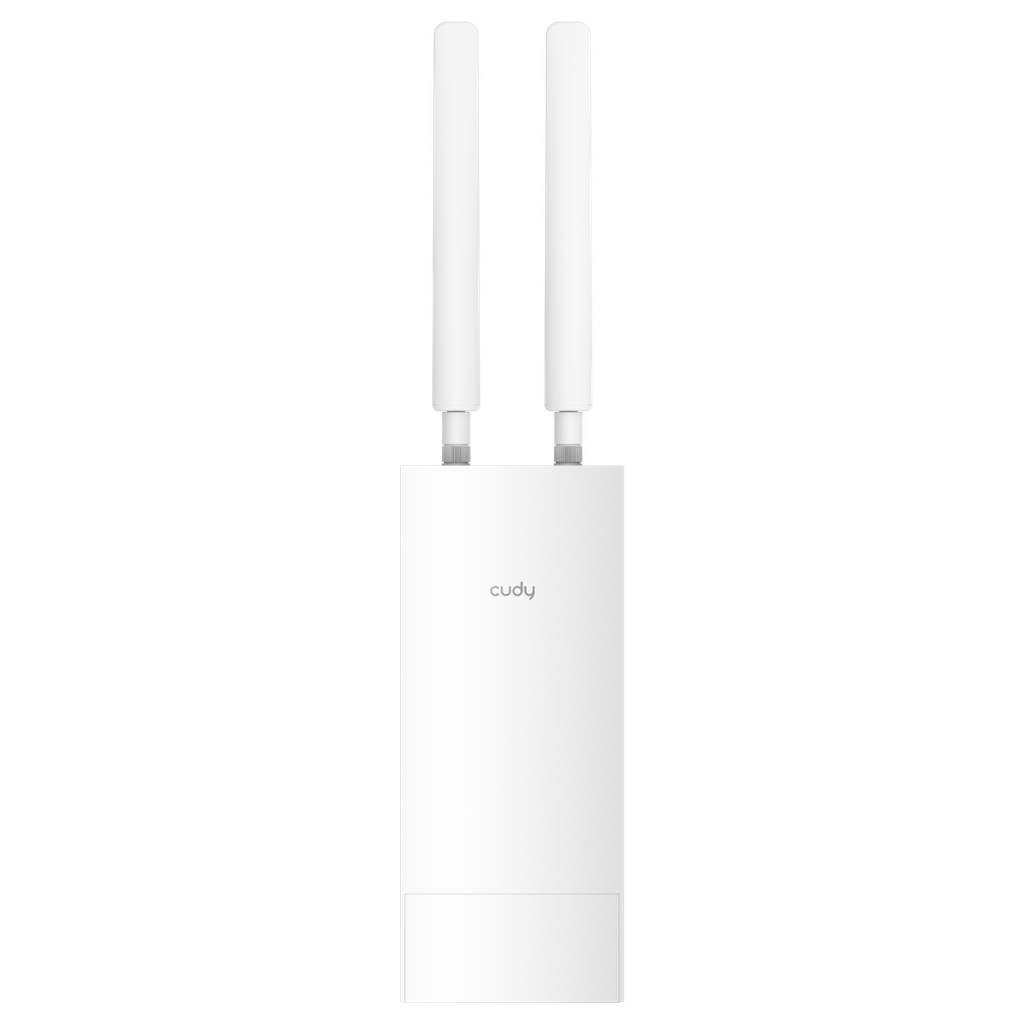

Cudy Outdoor AX3000 High-Power Wi-Fi 6 Access Point, Model: AP3000 Outdoor
| Brand: Cudy |
Cudy Outdoor AX3000 High-Power Wi-Fi 6 Access Point, Model: AP3000 Outdoor
● AX3000 Wi-Fi 6
● Five Independant PA for High-Power Coverage
● Hardware Watchdog Improves Reliability
● MT7981 or IPQ5018
● 1× Gigabit WAN/LAN Port
● WPS Button, Reset Button
● 802.3at/af PoE or 48~57 V Passive PoE
● MU-MIMO/OFDMA
● IP65, -40~65°C (Ext. -40~70 °C)
● 8/15 KV Contact/Air ESD + 6 KV Surge/Lightning Protection
Specifications:
Hardware Specs
| Model Version | AP3000 Outdoor 1.0 | |
|---|---|---|
| CPU | Chipset | MT7981BA+MT7976DAN |
| CPU Details | 1.3 GHz Dual-Core CPU | |
| Memory/Stroage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402Mbps |
| Wi-Fi Bands | EU + DFS | |
| 2.4 GHz Wi-Fi Speed | 574Mbps | |
| 5 GHz Wi-Fi Streams | 3T3R (3×3 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 1× Internal+2× External | |
| 5 GHz Anntenna Gain Max | 6 dBi | |
| 2.4 GHz Antenna Gain Max | 4 dBi | |
| FEM or PA/LNA |
| |
| Detachable Wi-Fi Antennas Connector | RP-SMA Female | |
| Range Performance | Max: 320 m (1050 ft) Park: 280 (919 ft) Street: 70 (230 ft) Woods: 40 (131 ft) | |
| Wi-Fi Transmission Power |
| |
| Interfaces | Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering | |
| LED | System | |
| Physical Buttons |
| |
| Power Input | PoE via Ethernet Port | |
| Power | Power Methods |
|
| Passive PoE | 48 ~ 57V | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE | |
| Max Power Consumption (W) | 18W | |
| Idle Power Consumption (W) | 5W | |
| Reliability | System Stability | Watchdog |
| Lightning/Surge Protection | 6kV | |
| ESD Air Protection | 4kV | |
| ESD Contact Protection | 8kV | |
| Environment | Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 10% ~ 95% non-condensing | |
| Ingress Protection Rating | IP65 | |
| When devices is installed vertically | ||
| Mechanical | Installation |
|
| Dimension | Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches | |
| Product Weight | EU: 455 g (16.05 oz.) | |
| Package Content |
| |
| Ordering Informaiton | Retail Package Weight | EU: 856 g (16.05 oz.) |
| Retail Package Dimension | 324×107×86 mm 12.76×4.21×3.39 inches | |
| Carton Net Weight | EU: 20.6 kg (45.42 lbs) | |
| Carton Gross Weight | EU: 21.4 kg (47.18 lbs) | |
| Units per Carton | 20 | |
| Carton Dimension | 46×33.7×45 cm |
Software Specs
| Model Version | AP3000 Outdoor 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency |
| |
| Max Capacity | 512 | |
| Recommended Client Upper Limit | 200 | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2/WPA3) | |
| WPS | true | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | true | |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Captive Portal | true | |
| Wake on LAN | true | |
| Online Detection | true | |
| Management | All Devices Management |
|
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | true |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
