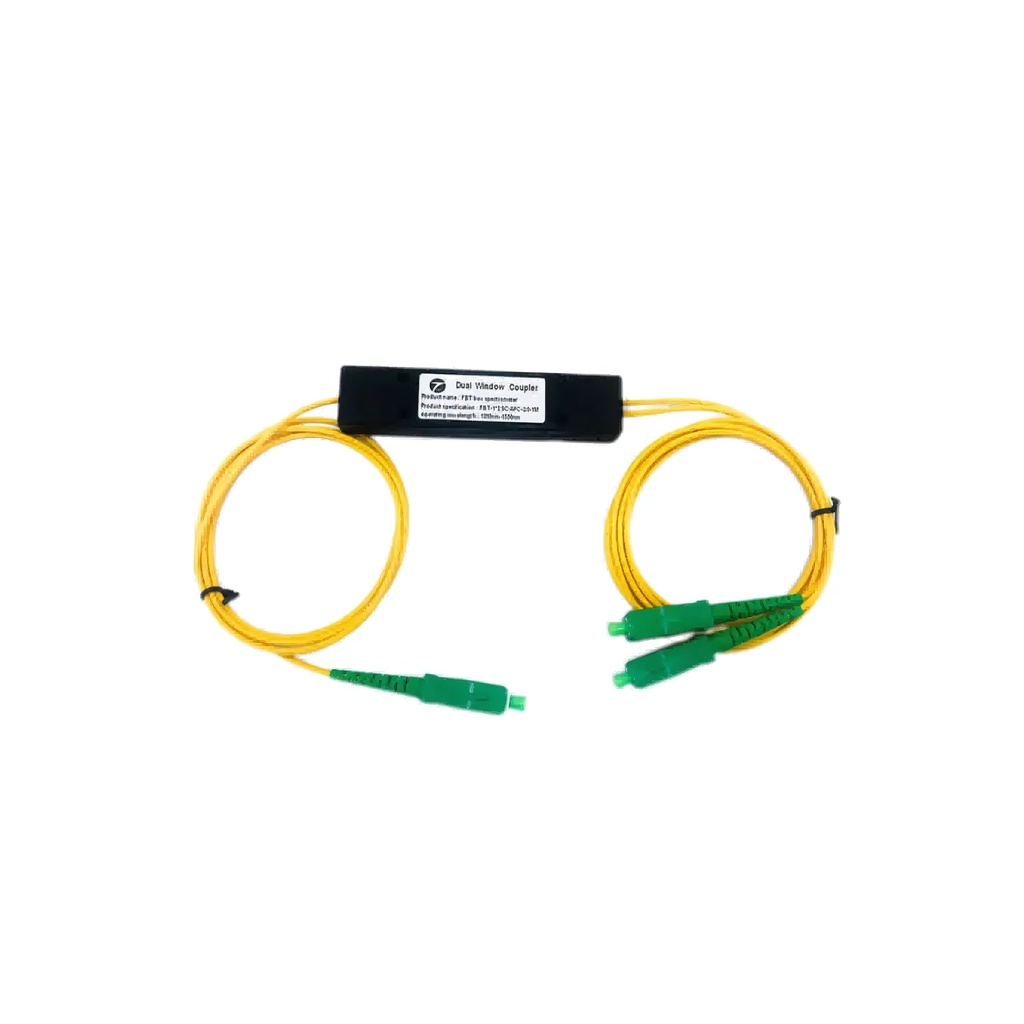

Unionfiber FTB Splitte, 3.0MM, SC/APC 1M (20/80)
Description
Unionfiber’s FBT splitter is an optical power management device manufactured using Fused Biconical Taper (FBT) technology. Compact, reliable, and cost-effective, it ensures excellent signal uniformity and is widely used in PON networks to split optical signals with precision. The 20/80 split ratio is ideal for monitoring or partial signal tapping applications.
Product Features
- Low insertion loss
- Low polarization-dependent loss (PDL)
- Excellent channel-to-channel uniformity
- High return loss and stable repeatability
- Wide operating wavelength range
- Compact and rugged design for indoor deployment
- Applications
- LAN, WAN, and Metro Networks
- FTTH & FTTX deployments
- CATV systems
- GPON, EPON, XPON networks
- Fiber optic test instruments
- Broadband data transmission systems
Compliance
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- YD/T 2000.1-2009
- RoHS, CE, ISO9001
Product Specifications
| Attribute | Description |
|---|---|
| Type | FBT (Fused Biconical Taper) Splitter |
| Configuration | 1×2 Split Ratio: 20% / 80% |
| Connector Type | SC/APC (Angled Physical Contact) |
| Cable Diameter | 3.0mm simplex fiber |
| Fiber Type | Singlemode G657A1 or G652D |
| Cable Length | 1 meter input / 1 meter output |
| Operating Wavelength | 1260–1650nm (dual window) |
| Insertion Loss | ≤ 4.0 dB (typical for 20/80 split) |
| Return Loss | ≥ 55 dB |
| PDL | ≤ 0.2 dB |
| Temperature Range | –40°C to +85°C |
| Housing Type | Mini steel tube or ABS box (varies by supplier) |
| Compliance | Telcordia GR-1209/1221, RoHS, CE, ISO9001 |
