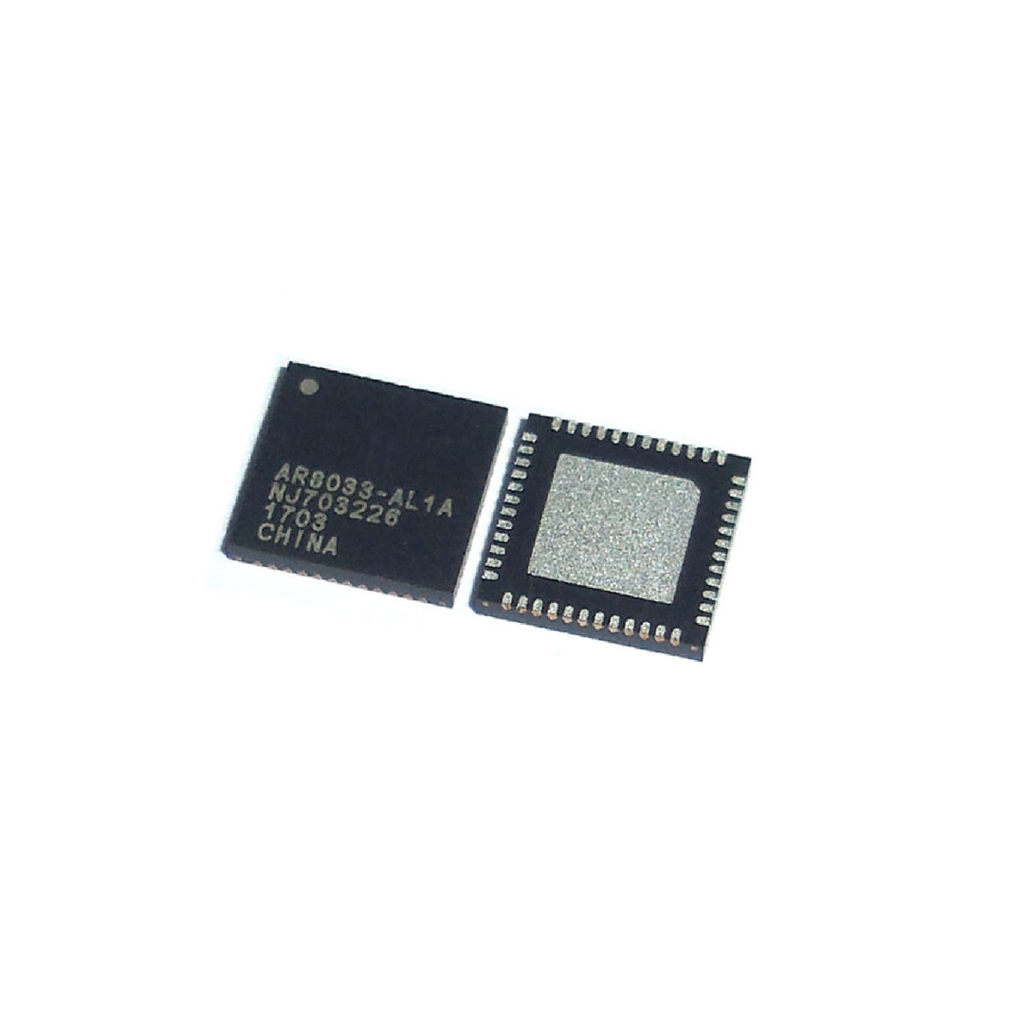

AR8033-AL1A Ethernet PHY®
| Brand: D-T Electronic |
Specifications
| ECCN (US) | 5A991b. | Part Status | Unconfirmed |
|---|---|---|---|
| HTS | 8542.39.00.01 | Automotive | No |
| PPAP | No | Number of Channels per Chip | 3 |
| Maximum Data Rate | 1Gbps | PHY Line Side Interface | Yes |
| JTAG Support | No | Integrated CDR | Yes |
| Standard Supported | IEEE 802.3az | Ethernet Interface Type | RGMII/SGMII |
| Minimum Operating Supply Voltage (V) | 1.04|2.4|3.15 | Typical Operating Supply Voltage (V) | 1.1|2.62|3.3 |
| Maximum Operating Supply Voltage (V) | 1.17|2.75|3.45 | Power Supply Type | Analog|Digital |
| Minimum Operating Temperature (°C) | 0 | Maximum Operating Temperature (°C) | 70 |
| Supplier Temperature Grade | Commercial | Packaging | Tray |
| Mounting | Surface Mount | PCB changed | 48 |
| Pin Count | 48 | Lead Shape | No Lead |
| Package/Case | QFN-48 |
