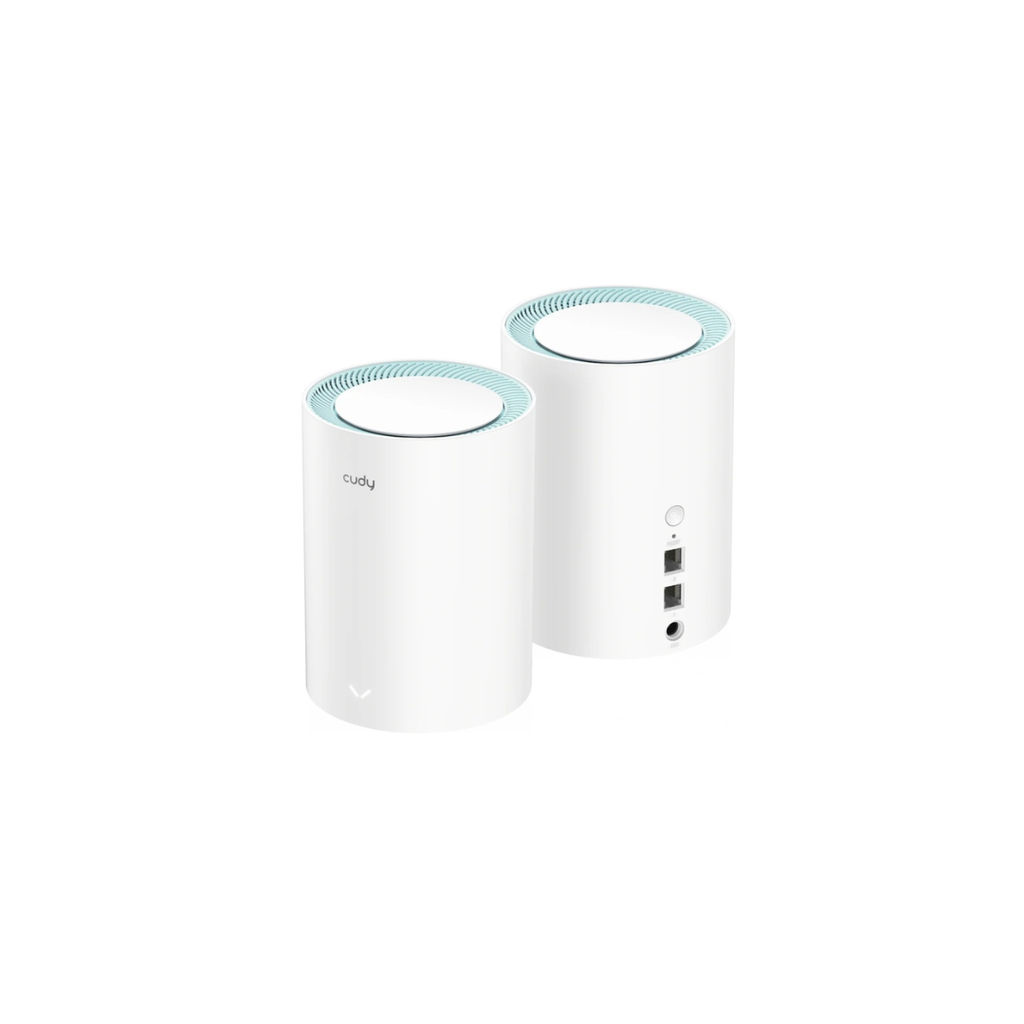

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 2-pack

Price:

$ 1.00
  2. Shop
  3. Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 2-pack
Cudy BE3600 Gigabit Mesh Wi-Fi 7 Router Model: WR3600 1.0
Cudy BE3600 Gigabit Mesh Wi-Fi 7 Router Model: WR3600 1.0
$ 60.00
$ 60.00
Cudy 4-FE PoE Switch with 2 Uplink FE Model: FS1006P 2.0
Cudy 4-FE PoE Switch with 2 Uplink FE Model: FS1006P 2.0
$ 20.00
$ 20.00
Coming Soon

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 2-pack

https://danoun.odoo.com/web/image/product.template/2485/image_1920?unique=972d618

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
Brand: Cudy
Cudy
Cudy
Categories :
Access Points , Coming Soon
Tags :

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 2-pack


  •  4-Stream Dual-Band Wi-Fi 5
  •  867 Mbps + 300 Mbps Wi-Fi 1
  •  2× Gigabit Ethernet Ports
  •  Fast Roaming
  •  MU-MIMO, Beamforming 2
  •  Cudy Mesh, VPN Server and Client
  •  Multi-Band Simultaneous Backhaul
  •  Cudy App, Cloud Control

Hardware Specs

Model VersionM1300 2.0
CPUChipsetMT7621
CPU Details880 MHz Dual-Core, MIPS1004Kc
Memory/StorageFlash/ROM16 MB (128 Mbit) NOR
DDR/RAM128 MB (1 Gbit) DDR3
Wireless5 GHz Wi-Fi Speed867 Mbps
2.4 GHz Wi-Fi Speed300 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Internal
5 GHz Antenna Gain Max6.04dBi
2.4 GHz Antenna Gain Max4.22dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
BeamformingTrue
Range PerformanceMax: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall PerformanceOne wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Multi-Pack Indoor Coverage2 Pack: 300 m² (3200 sq ft)
3 Pack: 400 m² (4500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
InterfacesGigabit RJ45 Ports2
Ethernet NotesPort 1 as default WAN port, both as LAN ports on Mesh satellite units
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallationDesktop
DimensionΦ110×154.5 mm
Φ4.33×6.08 inches
Product Weight298 g (10.51 oz.)

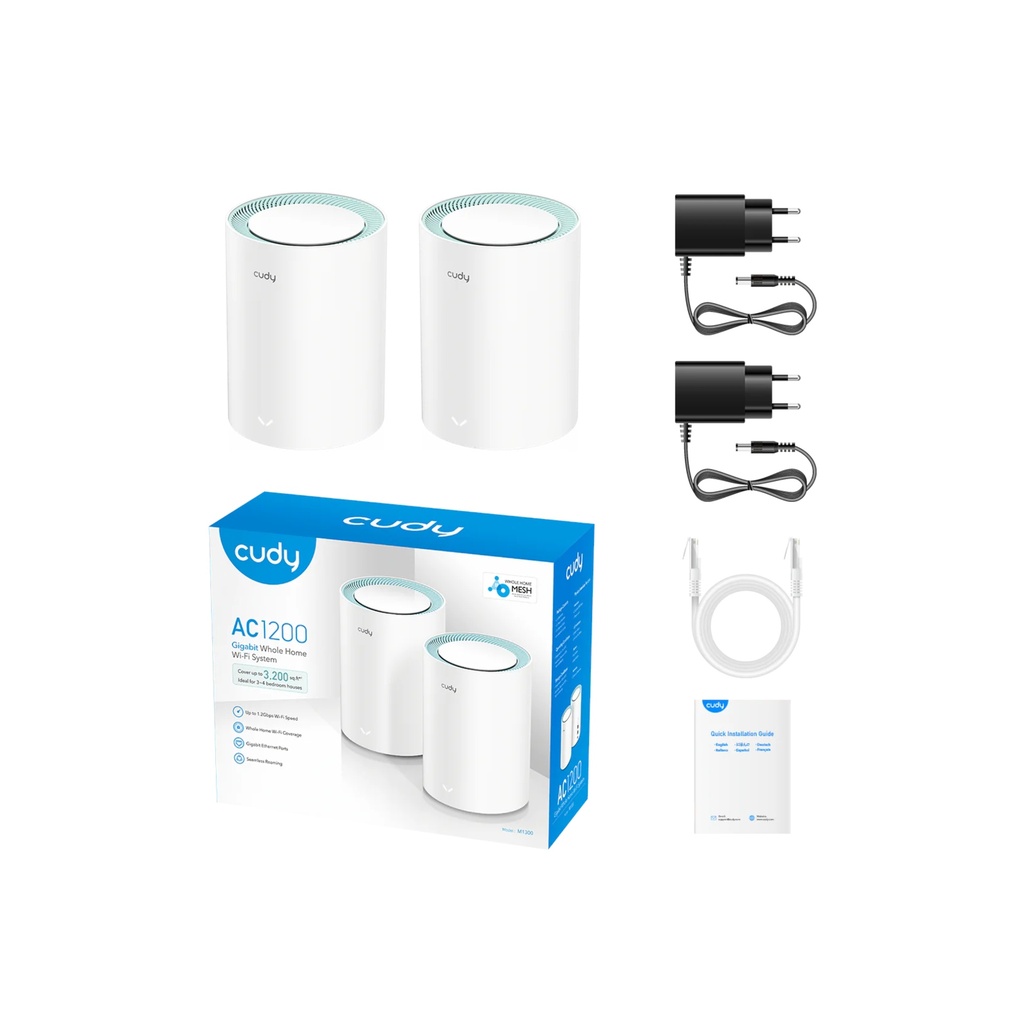

Package Content
  • M1300
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformationRetail Package Weight
  • 1-Pack | EU: 672 g (23.7 oz.)
  • 1-Pack | US: 628 g (22.15 oz.)
  • 2-Pack | EU: 1188 g (41.91 oz.)
  • 2-Pack | US: 1158 g (40.85 oz.)
  • 3-Pack | EU: 1674 g (59.05 oz.)
  • 3-Pack | US: 1650 g (58.2 oz.)
Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
Carton Gross Weight
  • 1-Pack | EU: 12.1 kg (26.68 lbs)
  • 1-Pack | US: 11.4 kg (25.13 lbs)
  • 2-Pack | EU: 11.1 kg (24.47 lbs)
  • 2-Pack | US: 10.9 kg (24.03 lbs)
  • 3-Pack | EU: 7.7 kg (16.98 lbs)
  • 3-Pack | US: 7.6 kg (16.76 lbs)
Carton Net Weight
  • 1-Pack | EU: 10.8 kg (23.81 lbs)
  • 1-Pack | US: 10.0 kg (22.05 lbs)
  • 2-Pack | EU: 9.5 kg (20.94 lbs)
  • 2-Pack | US: 9.3 kg (20.5 lbs)

Software Specs

Model VersionM1300 2.0
WirelessWi-Fi StandardsWi-Fi 5
Max Wi-Fi Modulation256-QAM
Wi-Fi EfficiencyMU-MIMO
Wi-Fi Efficiency NoteMU-MIMO available on 5 GHz
Max Capacity128
Recommended Client Upper Limit50
Max Wi-Fi Channel Width80 MHz
Wi-Fi SecurityWPA/WPA2/WPA3
Guest Network2.4 GHz, 5 GHz
WPSTrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
MeshCudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaultrue
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Internet Failover Sequence
  • WAN
  • WISP
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Performance
  • OpenVPN Client (UL/DL): 22 / 24.7 Mbps
  • OpenVPN Server (UL/DL): 22 / 20.9 Mbps
  • WireGuard Client (UL/DL): 142 / 233.9 Mbps
  • WireGuard Server (UL/DL): 213 / 152 Mbps
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LANTrue
Online DetectionTrue
Max Concurrent VPN Tunnels
  • IPSec: 20
  • PPTP/L2TP: 16
  • OpenVPN: 16
GeneralMax Concurrent Sessions25000
ManagementAll Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLED Controlture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
DashboardPanel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
