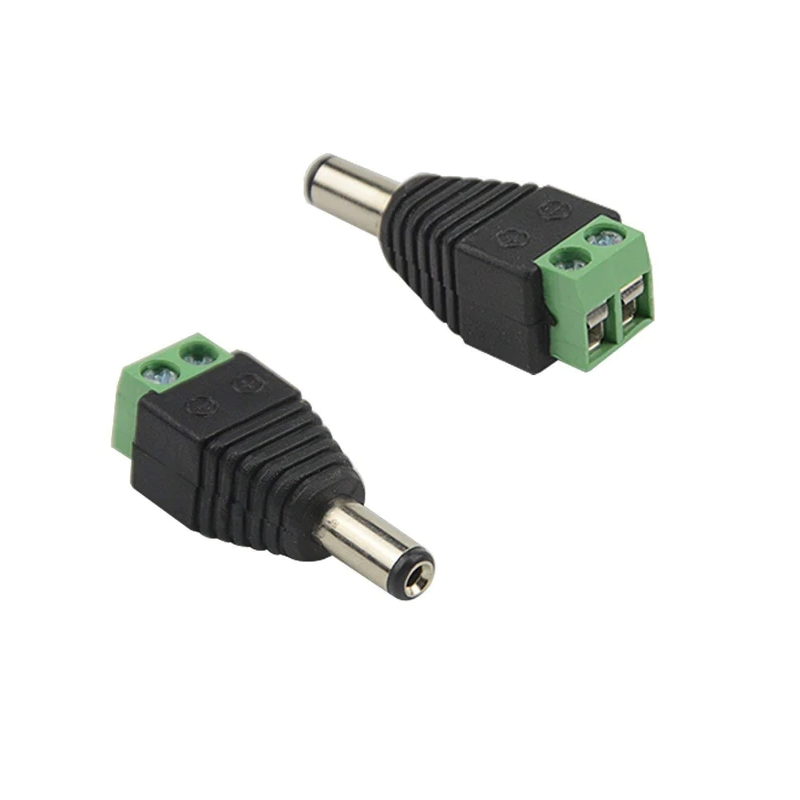

DC 5.5x2.1 mm Connector Male

DC 5.5x2.1 mm Connector Male Description

The DC 5.5x2.1mm connector is a widely used type of power connector. It is often used in consumer electronics such as laptops, smartphones, and tablets. The connector consists of a male plug and a female socket. The male plug has a center pin that is surrounded by a cylindrical barrel. The female socket has a matching center hole and a cylindrical barrel that is slightly larger than the barrel of the male plug.

The DC 5.5x2.1mm connector is a polarized connector, which means that it can only be connected one way. The positive terminal of the connector is located on the center pin of the male plug, and the negative terminal is located on the cylindrical barrel of the male plug.

The DC 5.5x2.1mm connector is a versatile connector that can be used for a variety of applications. It is a popular choice for power supplies, chargers, and other electronic devices. It is also used in some automotive applications, such as cigarette lighter adapters.

Specification

* Diameter: 5.5mm

* Inner Diameter: 2.1mm

* Length: 12mm

* Material: Brass, Nickel Plated

* Current Rating: 3A

* Voltage Rating: 12V

* Operating Temperature: -20°C to 85°C

* Contact Resistance: 50mΩ

* Insulation Resistance: 100mΩ

* Withstand Voltage: 1000V AC

* Insertion Force: 2N

* Withdrawal Force: 1N

* Durability: 10,000 mating cycles

The DC 5.5x2.1mm connector is a reliable and cost-effective solution for a variety of power connection applications
