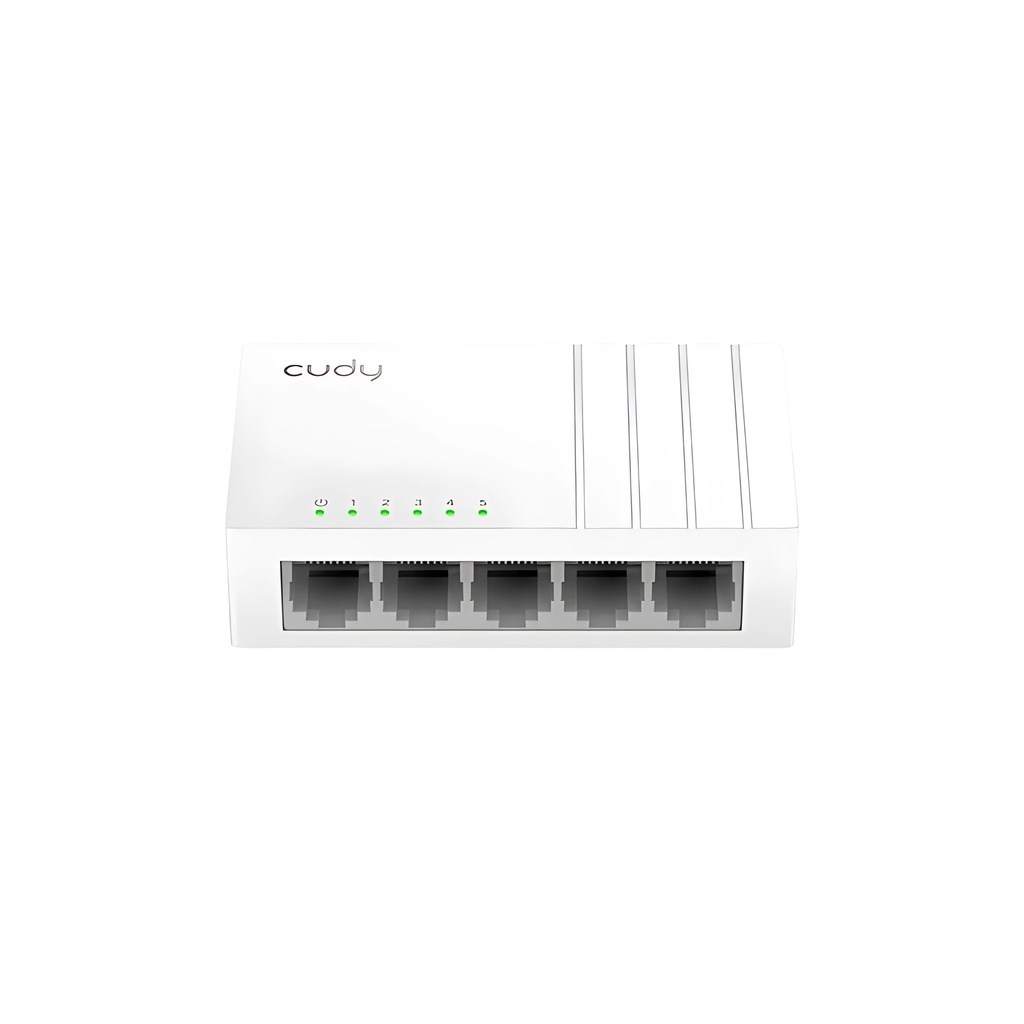

Cudy 5-Port 10/100Mbps Desktop Switch, Model: FS105D
| Brand: Cudy |
Cudy 5-Port 10/100Mbps Desktop Switch, FS105D
● 5 x 10/100Mbps Auto-Negotiation RJ45 ports
● Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
● Supports MAC address auto-learning and auto-aging
● Supports IEEE802.3x flow control for Full-duplex
Mode and backpressure for Half-duplex Mode
● Plug & Play, Desktop design
Specifications:
| Model | FS105D |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Protocol | CSMA/CD |
| Data Rate | Ethernet: 10Mbps (Half Duplex)/20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex)/200Mbps (Full Duplex) |
| Transmission Method | Store-and-Forward |
| Switching Features | MAC address auto-learning and auto-aging Half and Full Duplex 1Gbps backplane bandwidth |
| Interfaces | 5x 10/100Base-TX Port |
| LED Indicators | LAN~LAN5, Power |
| MAC Address Table | 2K entries per device |
| Power Supply | DC 5V 0.5A |
| Dimensions W*D*H | 88.2mm x 52.7mm x 21.8mm |
| Weight | 160g |
| Operating Temperatur | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Relative Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
Package Contents | 1 x Power Adapter；1 x Switch；1 x User Manual |
