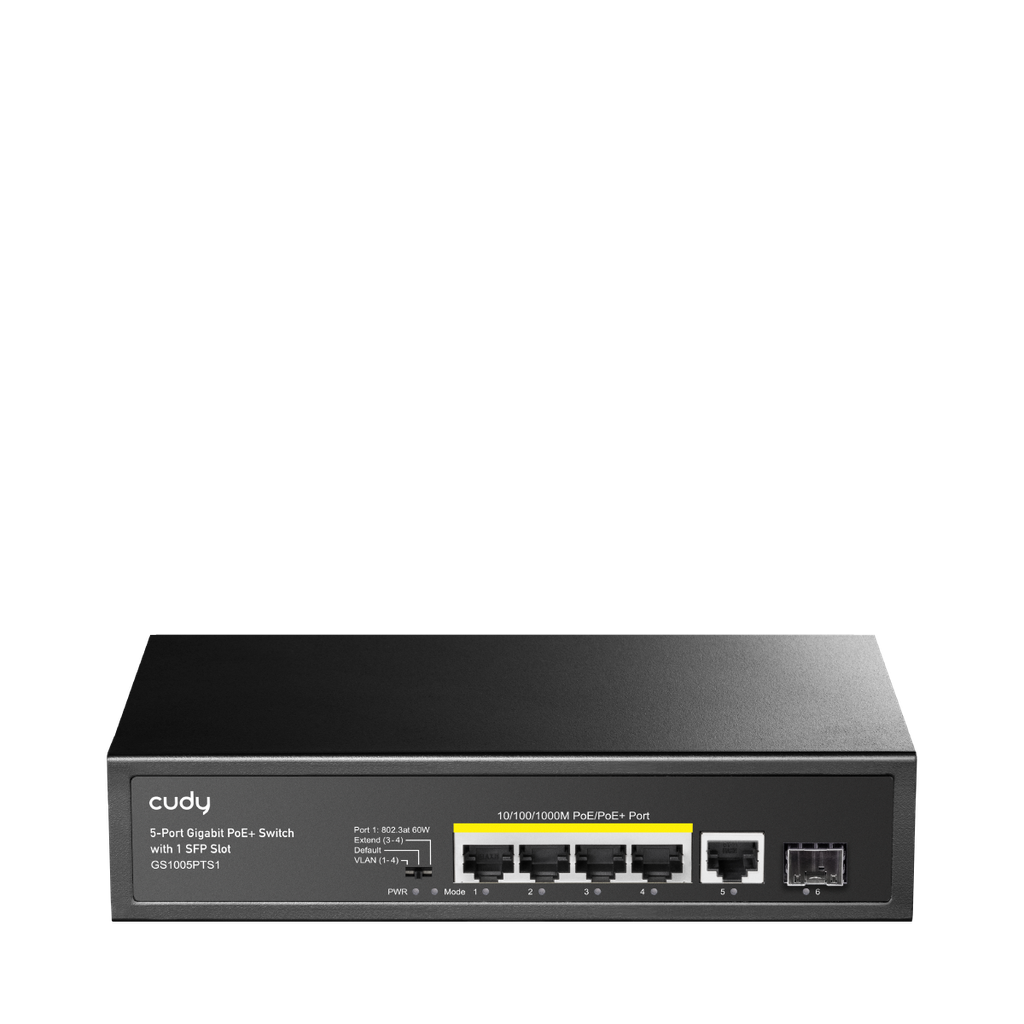

Cudy 5-Port Gigabit PoE+ Switch with 1 SFP Slot, Model: GS1005PTS1
Brand: Cudy |
Cudy 5-Port Gigabit PoE+ Switch with 1 SFP Slot, Model: GS1005PTS1
● 120 watts PoE power supply
● 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● Watchdog reactivates the abnormal PD by resuming POE power
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug & play, simple setup with no configuration needed
Specifications:
Model Version | GS1005PTS1 1.0 | |
---|---|---|
Protocols | 802.3 Protocols |
|
Interfaces | Physical Buttons | VLAN/Default/Extend DIP Switch |
PoE+ Ethernet Ports | 4× GbE | |
PoE Notes | Port #1 supports 802.3at 60W output | |
Uplink Ethernet Ports | 1× GbE, 1× SFP | |
Extend Mode Ports | #3~#4 | |
VLAN Mode Ports | #1~#4 | |
LED |
| |
Power Input | AC Inlet | |
Performance | Max Forwading Rate | 8.928 Mpps |
Max Switching Capcity | 12 Gbps | |
MAC Address Table | 2048 | |
Jumbo Frame | 9 KB | |
Packet Buffer | 1 Mbit | |
Power | Power Methods | AC |
AC | 100-240V 50/60Hz | |
Idle Power Consumption (W) | 5 | |
Max Power Consumption (W) | 120 | |
Reliability | Grounding Methods | Three-Prong Plug |
Environment | Operating Temperature: -10~50 ℃ (14~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing | |
Mechanical | Installation |
|
Casing Material | Metal | |
Dimension | 200×118×44 mm 7.87×4.65×1.73 inches | |
Package Content |
| |
Ordering Informaiton | Carton Net Weight | 14.8 kg (32.63 lbs) |
Carton Gross Weight | 15.8 kg (34.83 lbs) |
