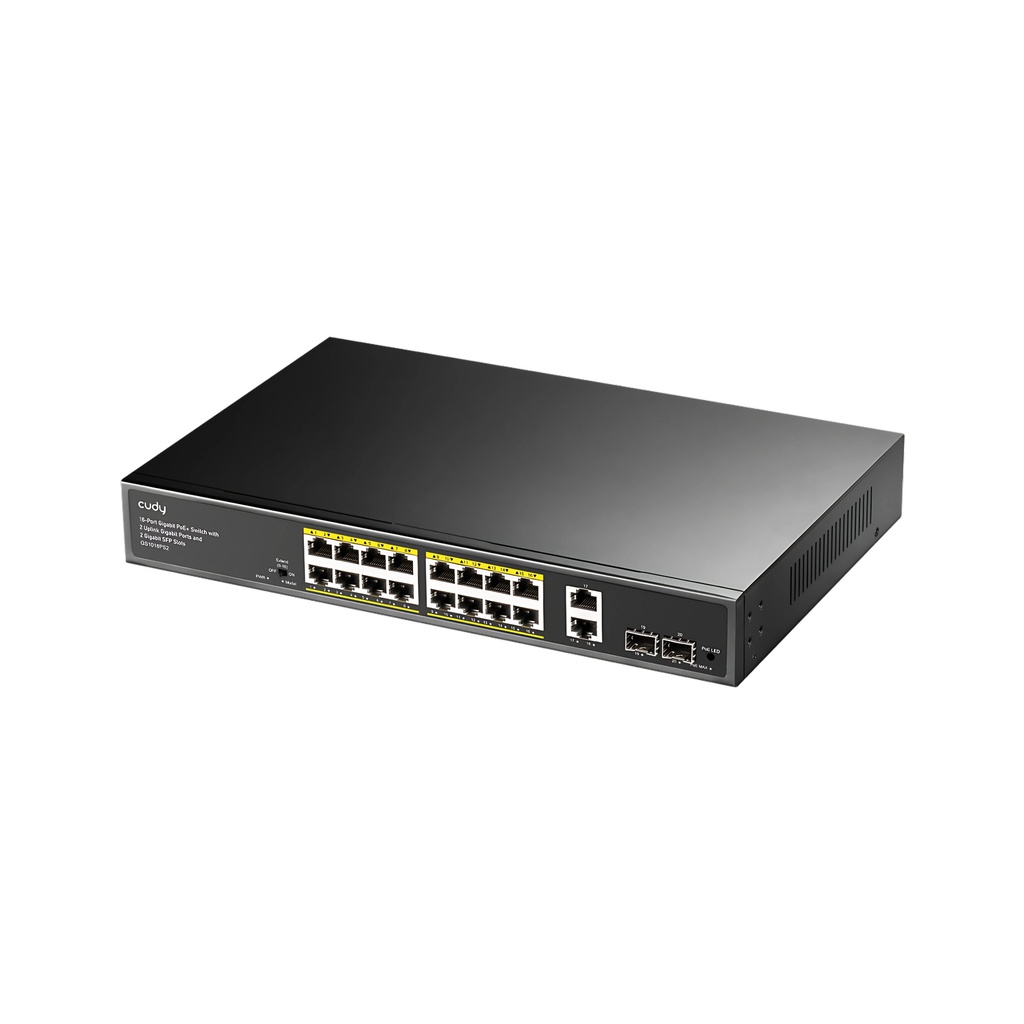

Cudy 16-Port Gigabit PoE+ Switch with 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 200W, Model: GS1018PS2
| Brand: Cudy |
Cudy 16-Port Gigabit PoE+ Switch with 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 200W GS1018PS2
● Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
● 16× GbE PoE Ports, 802.3at / 802.3af (30W per port)
● 2× Uplink GbE, 2× Uplink SFP
● Port 9-16 Supports Extend (CCTV) Mode for max 250 meters transmission
● 200-watt total power supply
● Watchdog detects unresponsive PoE clients and restores them under Extend mode
● PoE Port Priority streamlines device power management
Specifications:
| Model | GS1018PS2 | ||
| Connector Type | 16× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots | ||
| Network Protocol | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) | ||
PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) | |||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media | 10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | ||
| Optical | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um | ||
| Performance Specification | Bandwidth: 40Gbps | ||
| MAC: 8K | |||
| Packet Buffer Memory: 3 Mbit | |||
| Packet Forwarding Rate: 29.76 Mpps | |||
| Power Supply | Power input: AC100-240V 50/60Hz, Power Budget: 200 W | ||
| LED Indicator | PWR | Power supply indicator (Red) | Lighting: Powered Un-Light: No Power |
| 1-16 | PoE/RJ-45 Status indicator (Yellow) | On: POE power supply is normal Off: POE not powered | |
| 1-20 | PoE/RJ-45 StatUs indicator (Green) | On: Link normal Off: Link blocked Flashing: Data transmitting | |
| Note | Press the PoE Status Button to switch between PoE and RJ-45 displaying modes | ||
| Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
