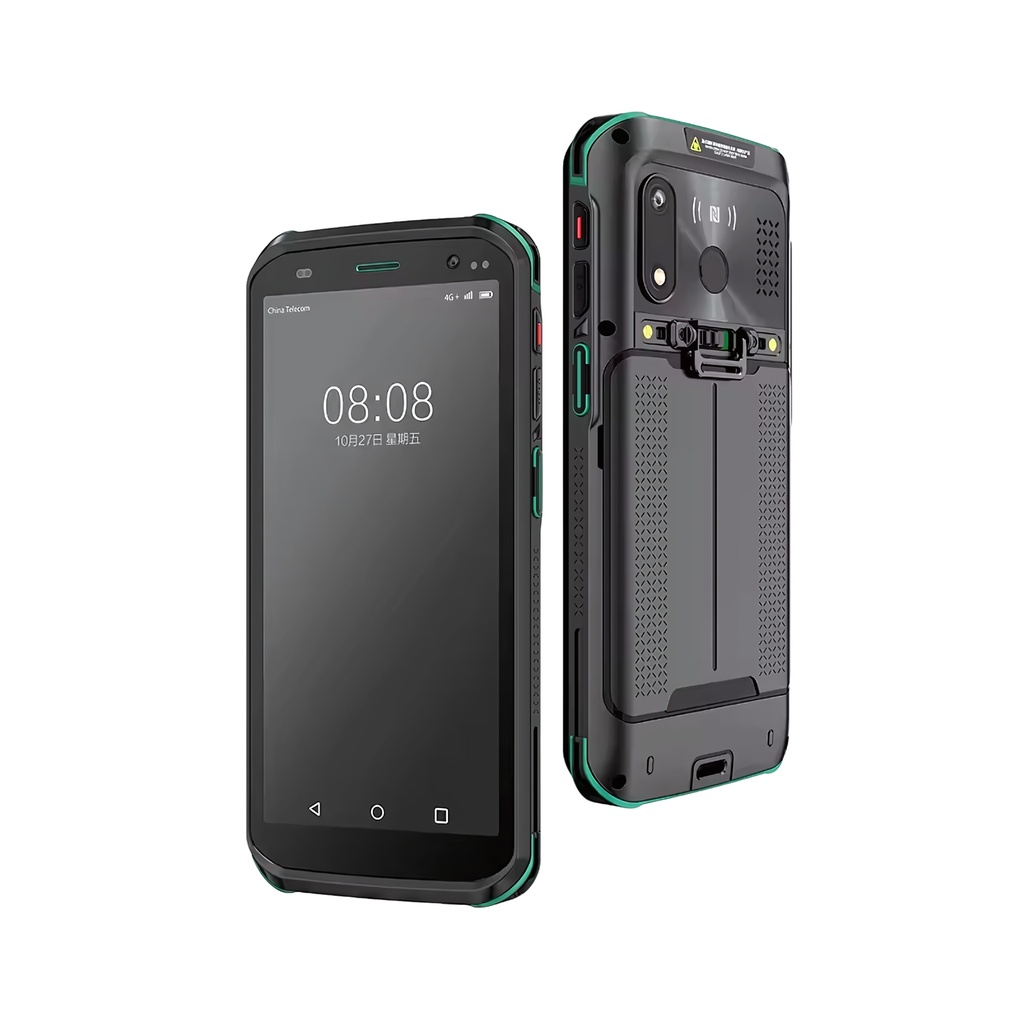

HENEX Mobile Data Collector 5.5in 1440*720 Model: H5
Brand: HENEX |
Model Number :
H5Categories :
Mobile Data CollectorHENEX Mobile Data Collector 5.5in 1440*720 Model: H5
Model No. | H5 |
Features | ● 5.5 in. High Definition (1440 × 720), industrial-grade IPS display |
● Immediate code sending function | |
● Large-capacity lithium battery (3.7V,5000mAh), Rechargeable | |
● Code collection function | |
● 433MHz long distance wireless transmission. also works wired | |
● Plug & Play, no drivers needed, Compatible with Windows and Mac | |
● Memory: ROM 32MB (100000+ item records can be saved) | |
Application | Mainly used in warehousing, express delivery, logistic, commercial and industries etc. |
Technical Parameter | |
Main Unit | |
Color | black |
OS | Android 11.0 |
CPU | single core |
CPU frequency | 72MHz |
Keypad | T9 numeric keypad |
Input | hardware buttons |
Memory | |
RAM | 32KB |
ROM | 32MB (100000+ item records can be saved) |
Memory card | N/A |
Screen | |
Size | 5.5” |
Color | High Definition (1440 × 720), industrial-grade IPS display |
Resolution | 1440 × 720 |
Touch screen | N/A |
Physical | |
Battery | Rechargeable Lithium-ion (3.7V, 2800mAh) |
Working time | 16 hours |
Standby | 15 days |
Interface | USB-type C interface |
Rated Voltage | DC5V/1A |
Dimension | 156mm×75mm×14.5mm |
Material | ABS + silicon |
Charging indicator | LCD |
Working current | 160mA |
Standby current | 8mA |
Safety regulation | National safety standard II |
EMC | CE compliance |
Scanning | |
Light source | 650nm |
Light type | single beam |
Decode rate | 48±2 scans/second |
Resolution | 20mil |
Scan width | 20 mil: 30 mm – 880 mm 5 mil: 38 mm – 250 mm |
Depth of field | 0~250mm(0.33mm, PCS 90%) |
Print contrast | min. 30% reflectivity |
Scan type | continuous scan / manual scan |
Error rate | 1/5 million |
Indicator | beeper LCD |
Barcode supported | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, etc. |
Transmission | |
Wi-Fi | N/A |
Bluetooth | N/A |
Wired Cable | USB 2.0 |
Wireless freq. | 433MHz |
Environment | |
Storing temperature | -20℃~60℃ |
Working temperature | 0℃~45℃ |
Humidity | 5%~95%(non-condensing) |
Lumination | max.5,000 Lux fluorescence) |
Package Size(cm) | 18.8*10*10cm, 454g |
