HENEX Mobile Data Collector 5.93in 2160*1080 Model: H6

https://www.danoun-tech.com/web/image/product.template/2384/image_1920?unique=dccfaed

490.00 490.0 USD 490.00

460.00

Not Available For Sale


  • Brand

This combination does not exist.

Brand: HENEX


Model Number :
H6
Categories :
Mobile Data Collector

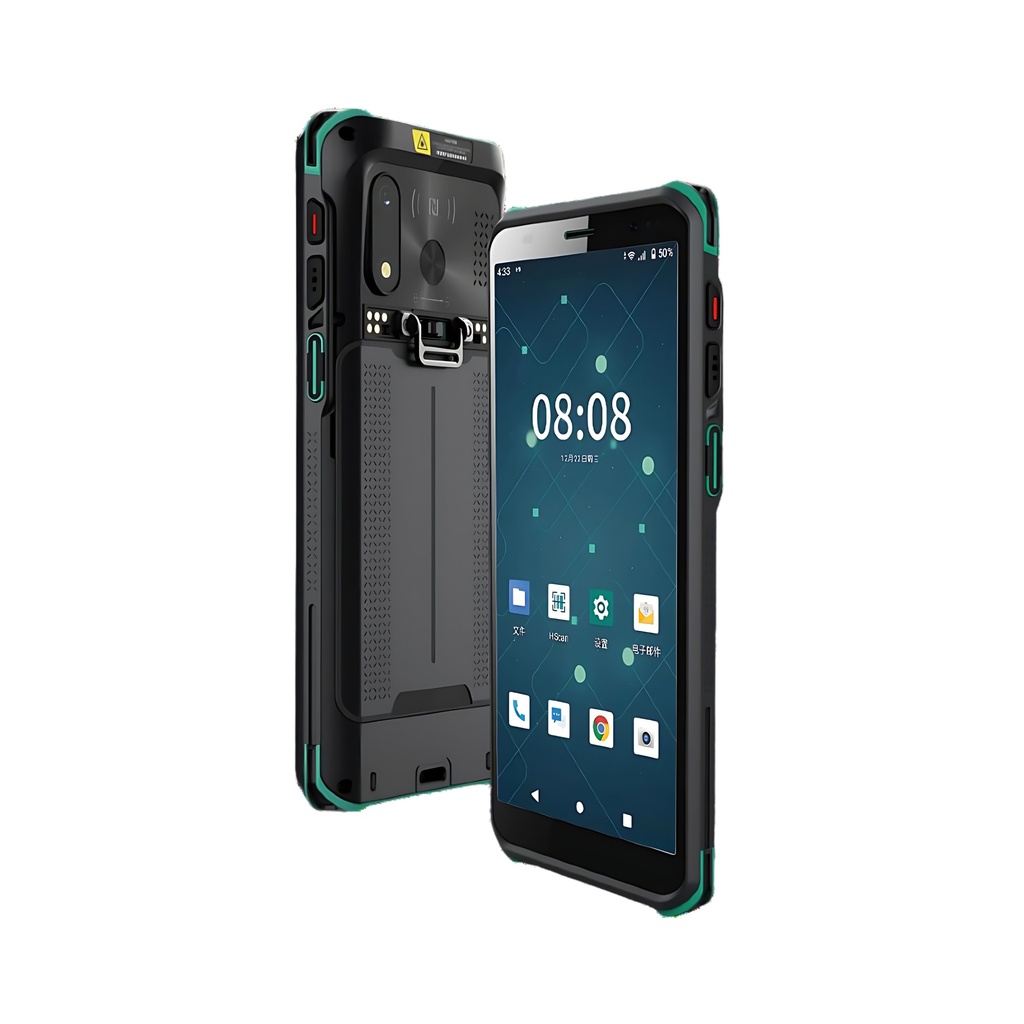

HENEX Mobile Data Collector 5.93in 2160*1080 Model: H6

Model NoH6
Physical Characteristics
Dimensions177.6(L)×77.2(W)×45(H)mm
7.0(H)×3.0(W)×1.77 (T)inch
Weight580 g / 20.45 oz.(with battery)
Screen Display6inch,2160(H)×1080(W) FHD+,industrial-grade IPS display
Imager WindowCorning® Gorilla® Glass
Touch PanelCorning® Gorilla® Glass Capacitive touch panel,Support Water&Gloves
Touch Mode
Backlight450 NITS, LED backlight
BatteryRechargeable /removeable battery/removeable
battery3.85V/10000mAh,QC3.0 fast charge(2.8A),charge time<5h
Expansion SlotMicroSD card,support SDHC、SDXC,256GB(max)
Expansion PortsBottom POGO PIN: USB 2.0,5V/3A charge port
SIM card slot2 x Nano SIM 1 x e-SIM(option)
SAM card slot1 x PSAM + 1x Micro PSAM(option)
NotificationsAudible tone; Multi-color LEDs; Vibration
Network Connections2G/3G/4G ,Wi-Fi, Blue tooth
Operate SystemAndroid 11.0
Voice and Audio
Speaker, Receiver,Dual Mic,USB Type-C headset supp
KeypadOn-screen keypad and enterprise keyboard
ButtonsProgrammable; Scan on each side; volume up/down; power; push-to-talk
(PTT)
Interface PortsBottom USB 2.0 OTG - host/client (Type-C)
Performance Characteristics
CPUQualcomm Snapdragon, 8Core,  2.0GHz
RAM4GB LPDDR4X(6GB option)
Flash64GB eMMC 5.1(128GB option)
SealingIP68
Drop Specification1.2 m (Concrete Surface)
Tumble Specification300times from 1.6 ft./0.5 m droped
Light SensorAutomatically adjusts display backlight brightness
MagnetometerSupport electronic compass
Motion sensor6-axis gyroscope, 3-axis accelerometer
Proximity sensorAutomatically disable touchscreen and turn off display display in handset mode (voice call)
Data Capture
Scaning2D Standard range omnidirectional imager
CameraFront 5 MP fixed focus; f/2.4 aperture Rear 16 MP auto focus; f/1.85
aperture; Flash LED
NFCSupport ISO14443A/B、ISO15693、MIFARE、FeliCa,Support card reading,
point-to-point, card simulation
Positioning System (GPS)GPS L1 with A-GPS: Glonass; BeiDou; Galileo
RFIDChina Frequancy : 920-925 MHzUSA Frequancy :902-928 MHz
Europe Frequancy: 865-868 MHz(ETSI EN 302 208)
Other Frequancy : Other multinational frequency standards (customizable)
Engine: SIM7100, base on Impinj Indy E710 chips
SIM3100, base on Impinj Indy E310 chips
Protocol standard: EPC C1 GEN2 / ISO18000-6C
Antenna parameters: ceramic antenna(3 dBi)/ circular polarized antenna(5dBi)
Sensitivity: -87dBM(SIM7100),-75dBM(SIM3100) Power : 2 W(33 dBm,+5 dBm ~ +33 dBm,SIM3100/SIM7100)
Reading distance: ≥ 15M(33dBm,Circular polarization, open outdoor environment, white card label)
Group read rate: ≥ 900 tags/s(SIM7100);≥ 300 tags/s(SLR3100)
AccessoriesPower adapter×1,USB Type-C×1,rechargeable battery×1
