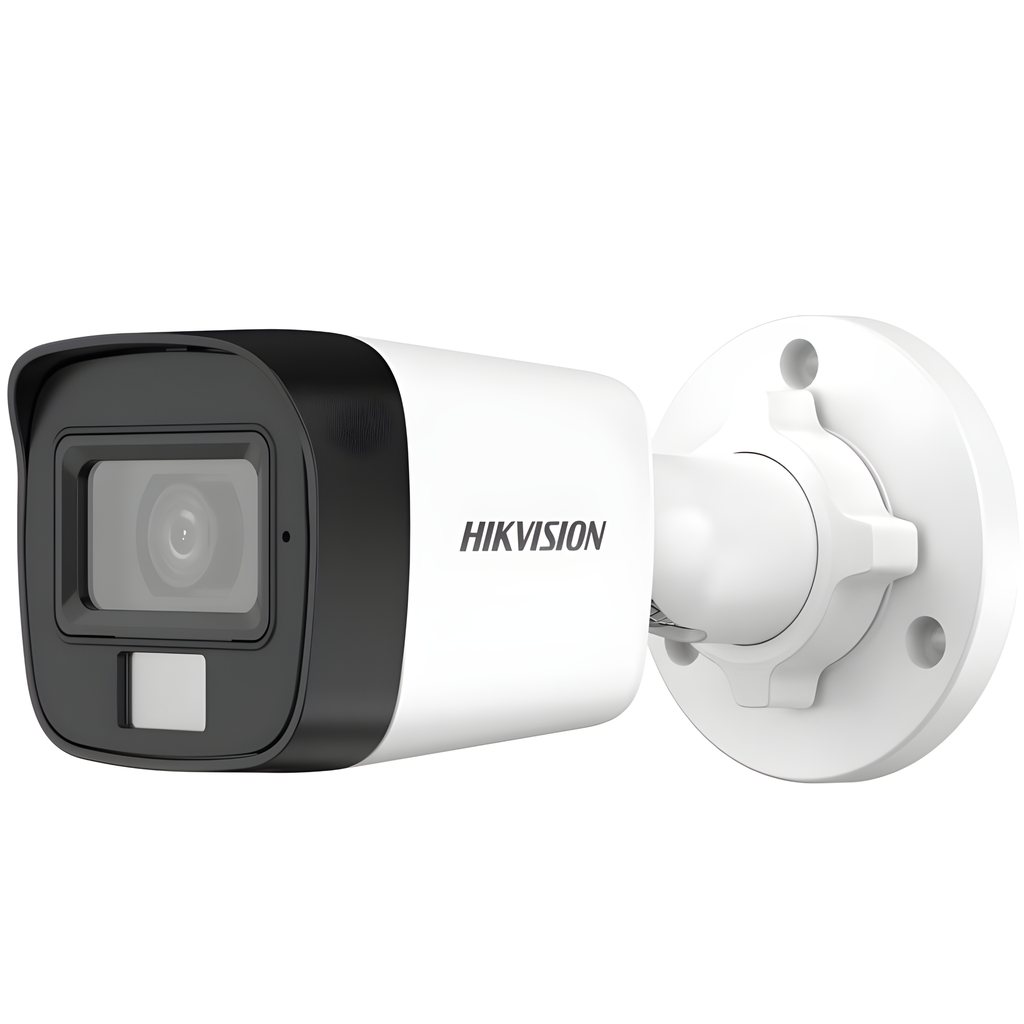

HIKVISION Camera 3K Smart Hybrid with audio Outdoor Model: DS-2CE16K0T-LPFS

• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 25 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options

• Camera

Image Sensor3K CMOS

Max. Resolution2960 (H) × 1665 (V)

Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Day & NightICR

Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Signal SystemPAL/NTSC

• Lens

Lens Type2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 132°
3.6 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 112°

Lens MountM12

• Microphone

Pickup DistanceIn a radius of 5 m

Amount1

Illuminator

Supplement Light Range
IR : Up to 25 m
White Light : Up to 20 m

Supplement Light TypeSmart,IR,White Light

• Image

Image SettingsBrightness, Sharpness, Smart IR

Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC

Day/Night ModeAuto/Color

Wide Dynamic Range (WDR)Digital WDR

Image EnhancementDWDR/BLC/HLC/Global

White BalanceAuto/Manual

AGCYes

• Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

• General

MaterialPlastic

Dimension138.8 mm × Ø70 mm (5.47" × Ø2.76")

Approx. 160 g (0.35 lb.)

Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

CommunicationHIKVISION-C

LanguageEnglish

Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.

ConsumptionMax. 2.9 W

• Approval

ProtectionIP67
