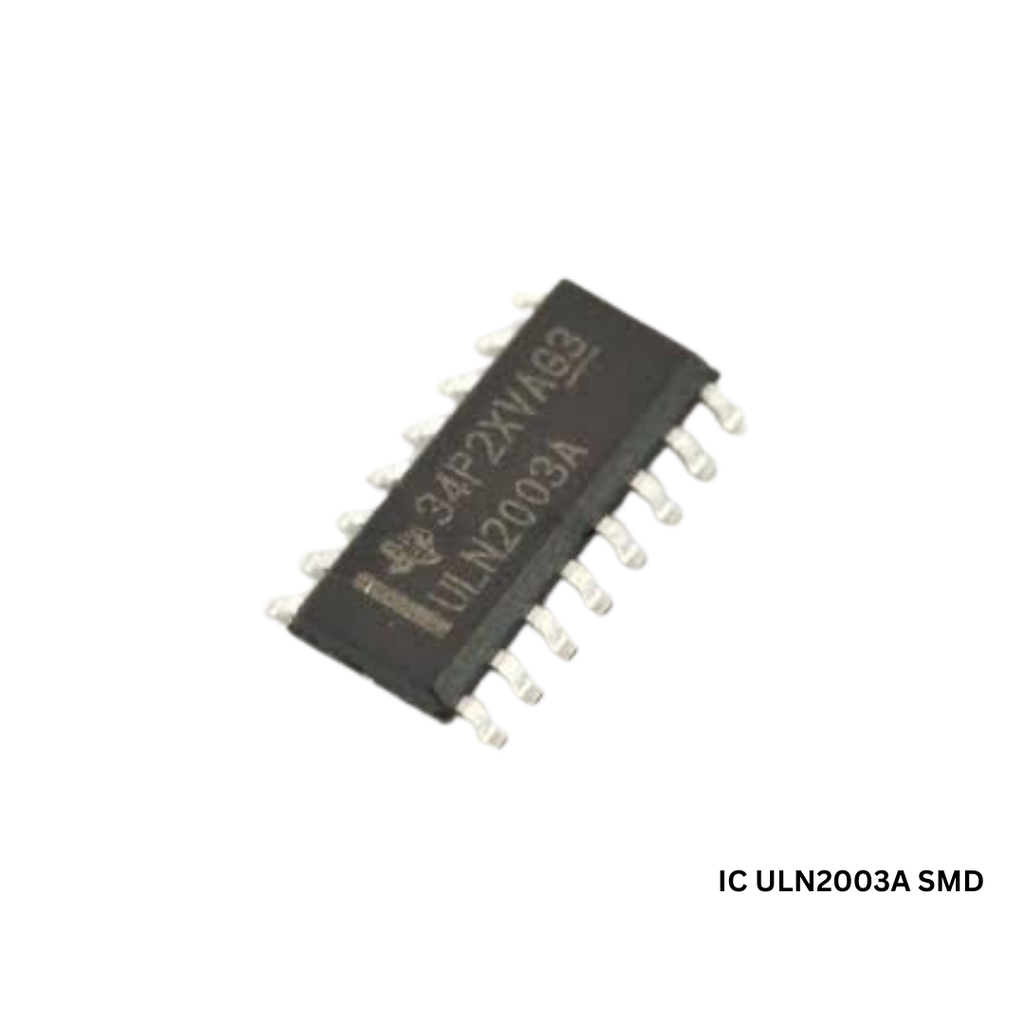

IC ULN2003A SMD®

The ULN2003A SMD® is a high-voltage, high-current Darlington transistor array. It is designed for interfacing between low-power control signals and high-power loads such as solenoids, relays, and motors. The ULN2003A SMD® is available in a 16-pin surface-mount package. It is also available in a DIP package.

**Specification**

* **Number of channels:** 7

* **Output current:** 500mA per channel

* **Output voltage:** 50V

* **Input voltage:** 5V to 25V

* **Package:** 16-pin surface-mount package

**Features**

* High-voltage, high-current Darlington transistor array

* Seven channels in a single package

* Surface-mount package for easy assembly

* Can be used to interface between low-power control signals and high-power loads

**Benefit**

* The ULN2003A SMD® is a versatile and reliable component that can be used in a wide variety of applications.

* The surface-mount package is easy to assemble and reduces the size of the finished product.

* The high-voltage and high-current output capabilities make the ULN2003A SMD® ideal for driving high-power loads.

**Application**

* The ULN2003A SMD® can be used in a wide variety of applications, including:

* Solenoid control

* Relay control

* Motor control

* LED control

* Switching circuits

* Audio amplifiers
