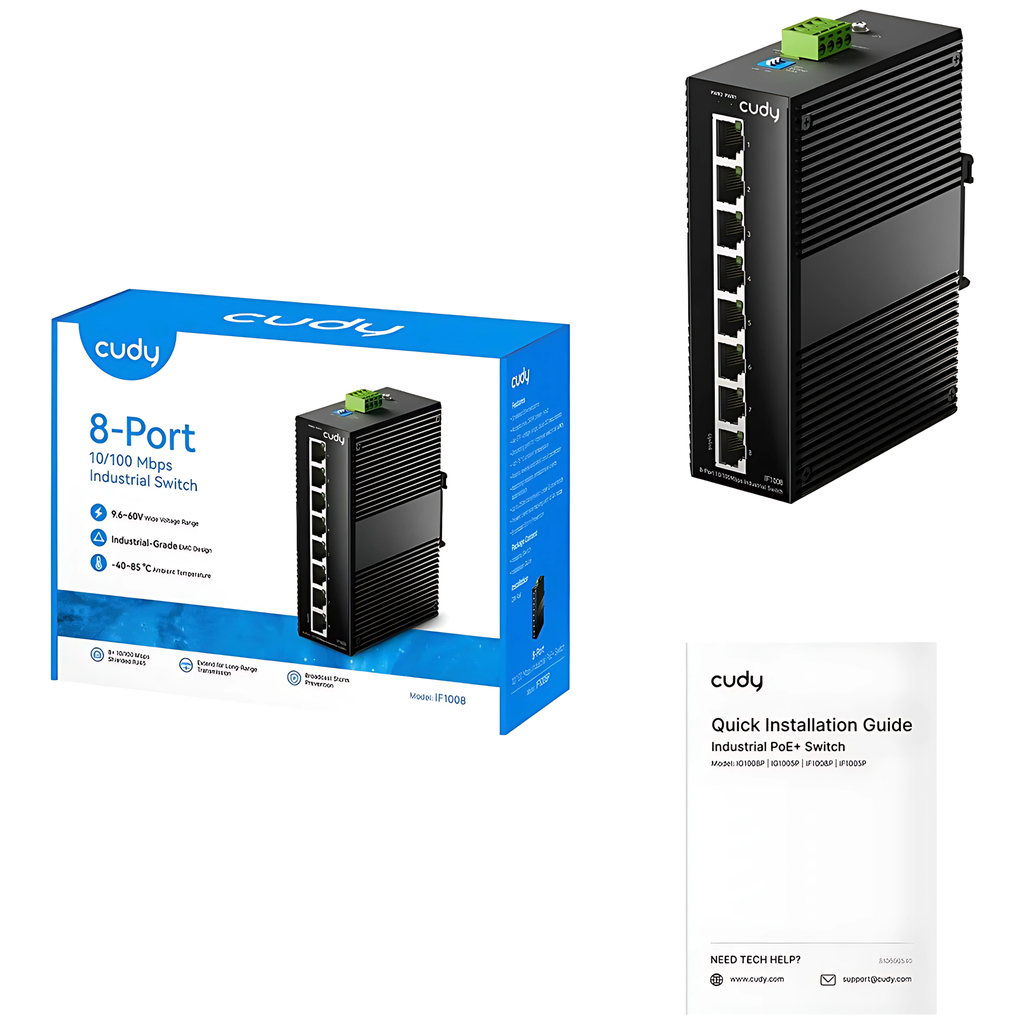

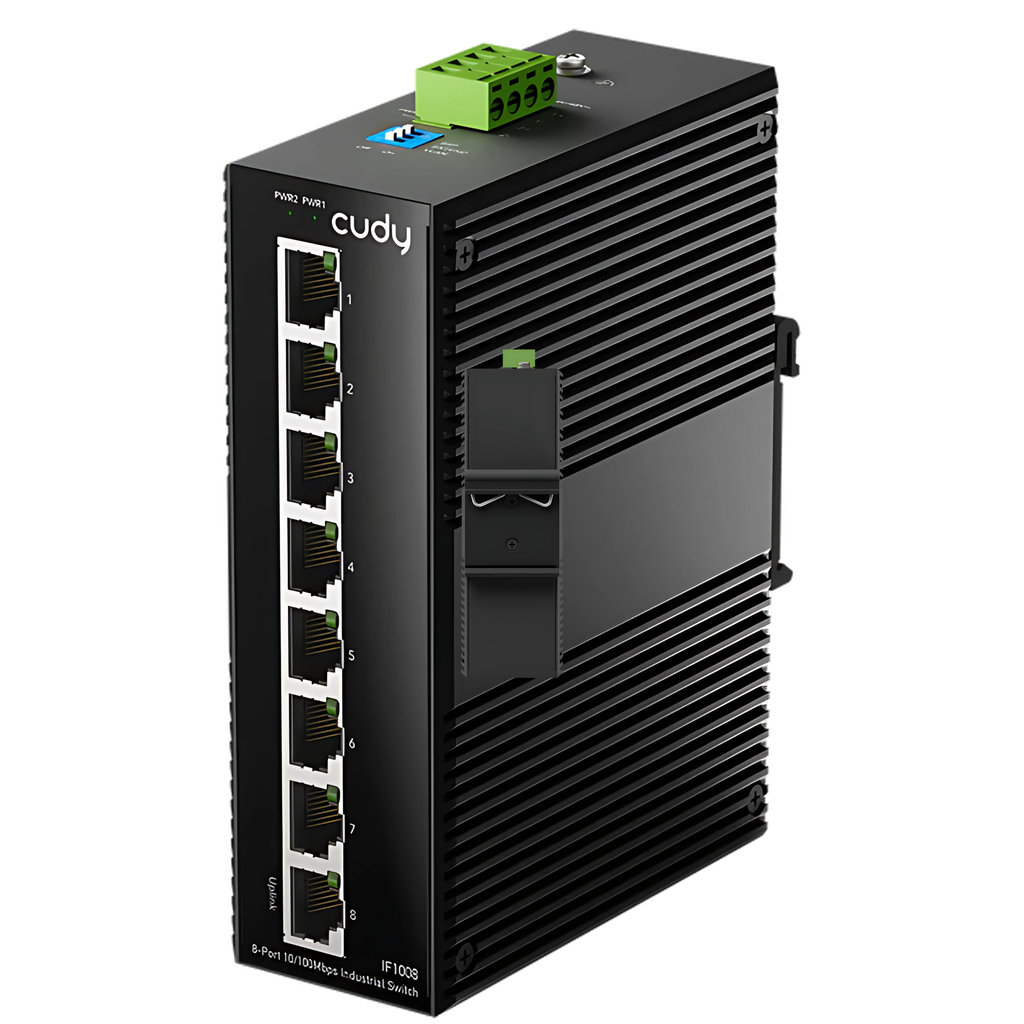

Cudy 8-Port 10/100M Industrial Switch Model: IF1008

https://www.danoun-tech.com/web/image/product.template/2898/image_1920?unique=682af66

$ 30.00 30.0 USD $ 30.00

$ 30.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
Brand: Cudy
Cudy
Cudy
Model Number :
IF1008
Categories :
Switches
Tags :

Cudy 8-Port 10/100M Industrial Switch Model: IF1008

A 8-FE industrial switch for networking in harsh conditions such as manufacturing, transportation, maritime, oil & gas, and mining.

  •  8× FE, Shielded, ±6kV Surge Resistant
  •  IP40, -40~85°C (-40~185°F)
  •  Dual-Power Redundancy, 9.6~60V Range
  •  Polarity Reverse Protection
  •  Short Circuit Protection
  •  Broadcast Storm Prevention On/Off
  •  Extend On/Off, VLAN On/Off

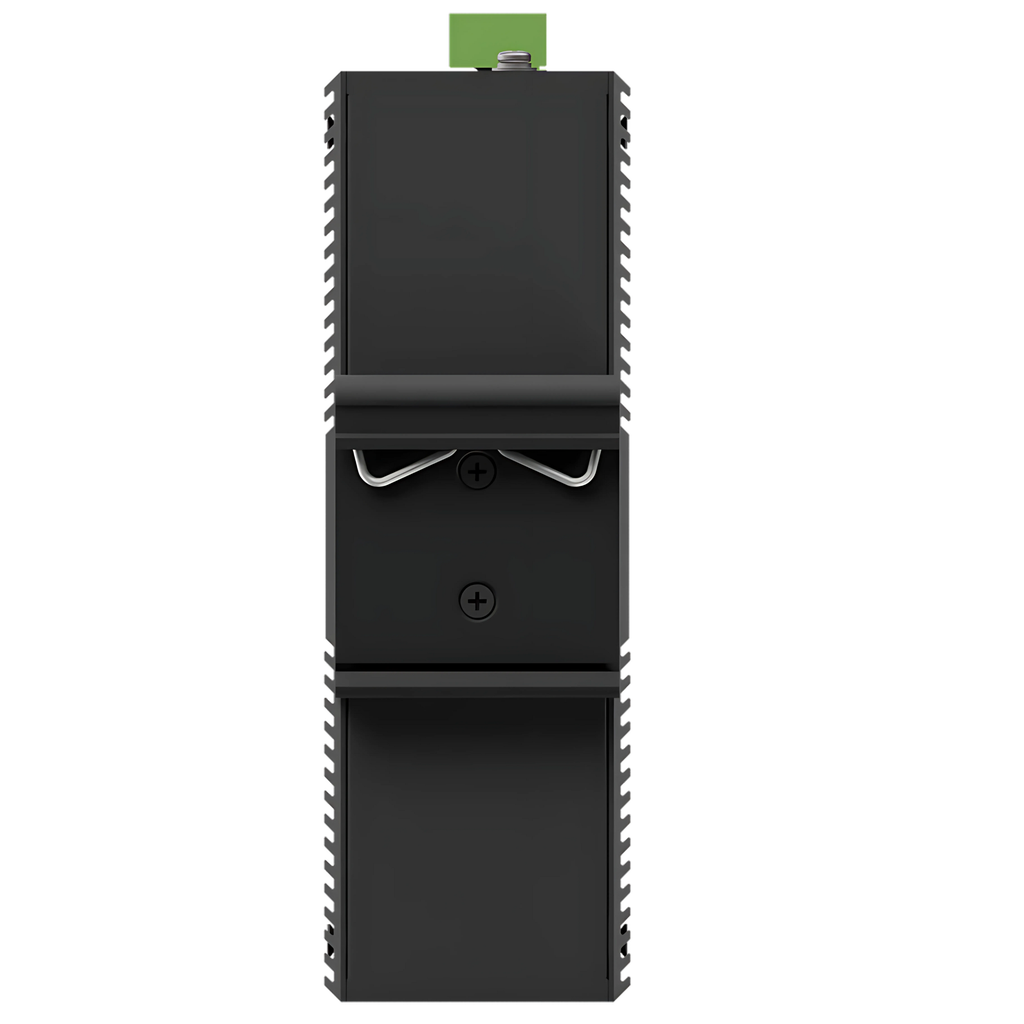

  •  Integrated DIN-Rail Bracket


Interfaces10/100 Mbps RJ45 Ports8
Shielded RJ45 PortTrue
Extend Mode Ports#1~#4
VLAN Mode Ports#1~#7
LED
  • Power 1
  • Power 2
  • Link/ACT of Each Ethernet Port
Power Input4-Pin Terminal Block
Physical Buttons
  • VLAN On/Off
  • Extend On/Off
  • Broadcast Storm Prevention On/Off
PerformanceCopper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table2048
Max Switching Capacity1.6 Gbps
Max Forwarding Rate1.1904 Mpps
Jumbo Frame2 KB
Packet Buffer768 Kbit
PowerPower MethodsDC
Power RedundancyDual Inputs
DC9.6-60V⎓
Max Power Consumption1.0W
Idle Power Consumption0.25W
Polarity Reverse ProtectionTrue
Short Circuit ProtectionTrue
Switching802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
ReliabilityGrounding MethodsGrounding Point
SafetyIEC/EN 62368
EMCEN55032 Class A
EN55035 Class A
EMIFCC 47 CFR Part 15B Class A
EMSIEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5 PMF
IEC/EN 61000-4-10, Level 5 DOMF
EMS NoteThe levels listed in each EMS field are the highest level defined in the IEC/EN standard.
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
Free FallIEC 60068-2-32
EnvironmentOperating Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~185 ℉)
Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
MechanicalDimension144×103×47.5 mm
5.67×4.06×1.87 inches
Product Weight483.4 g (17.05 oz.)
Casing MaterialAluminum
Ingress ProtectionIP40
InstallationDIN-Rail
