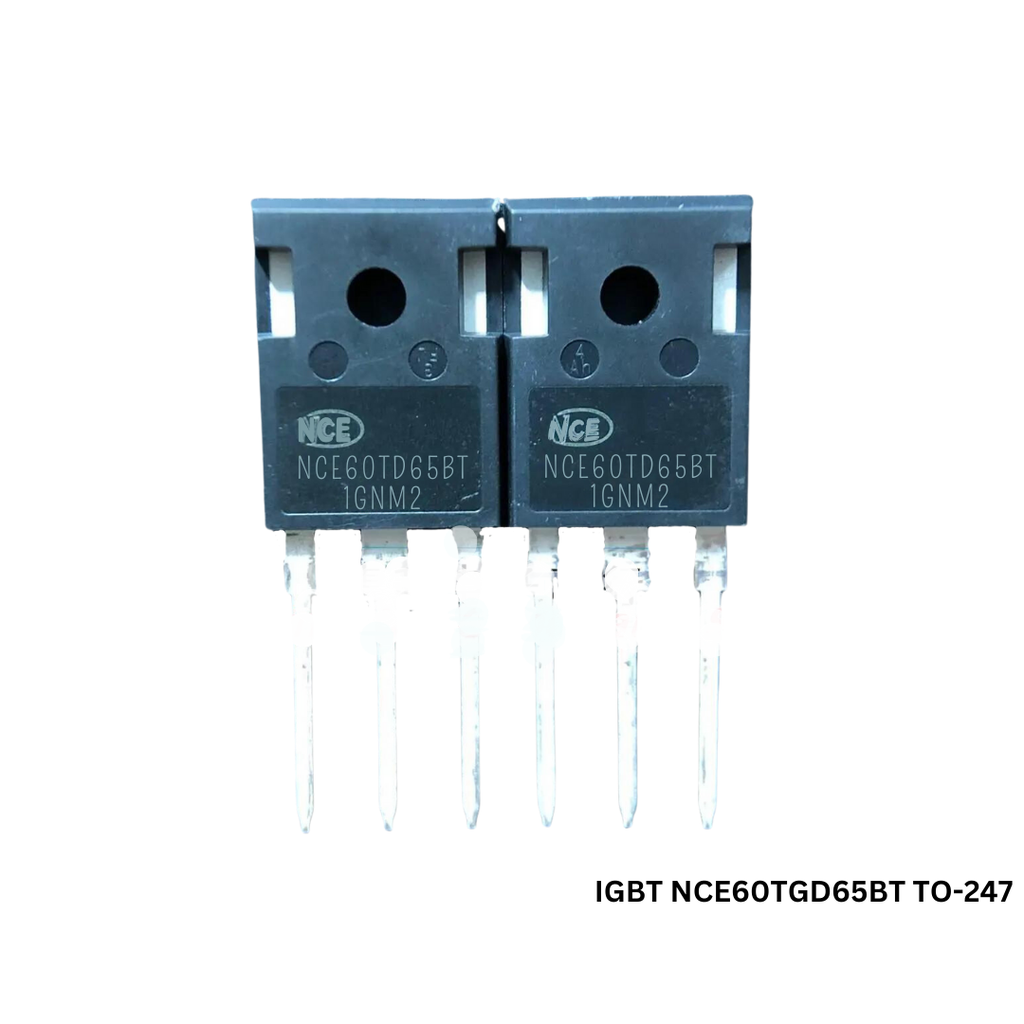

IGBT NCE60TD65BT TO-247®

The NCE60TD65BT is an IGBT (Insulated Gate Bipolar Transistor) designed for high voltage and high power applications. It is a robust and reliable device that can withstand harsh operating conditions. The NCE60TD65BT is ideal for use in motor drives, inverters, and other power electronics applications.

**Specification**

* **Voltage (VCEO):** 650V

* **Current (IC):** 60A

* **Power (PC):** 300W

* **Switching Frequency (fSW):** 100kHz

* **Gate Threshold Voltage (VGE(th)):** 3.5V

* **Gate Resistance (RG):** 10Ω

* **Operating Temperature Range:** -40°C to +150°C

**Features**

* **High voltage and high power capability**

* **Robust and reliable design**

* **Low switching losses**

* **Fast switching speed**

* **Easy to drive**

**Benefit**

* **Reduced component count and cost**

* **Improved efficiency**

* **Reduced EMI**

* **Increased power density**

**Application**

* **Motor drives**

* **Inverters**

* **Power supplies**

* **Welding machines**

* **Uninterruptible power supplies (UPS)**
