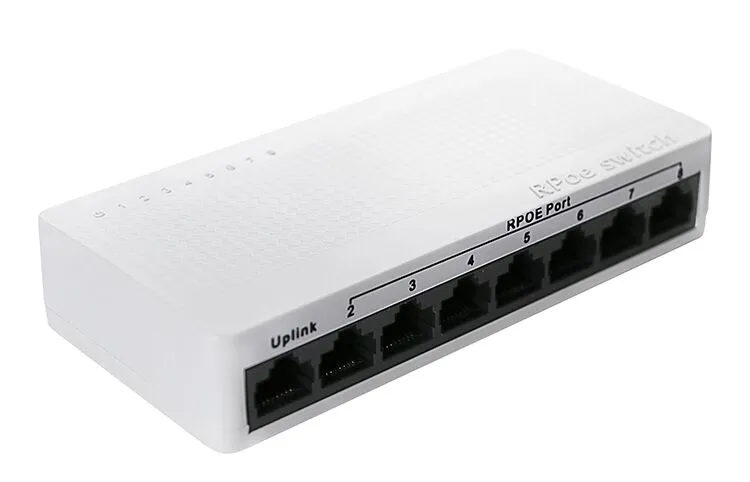

IT TECH 10/100 Reverse POE Switch 8 Ports All In All Out

-Ethernet Connector :RJ45 Jacks(8 Ports)10/100Base-TX with Auto-MDIX

                                   1*10/100/1000M Base T Data Uplink Port(port 1)

                                   7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in

-Standards: IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex

                   IEEE STD. 802.3U 100BASE-TX,10/100Mbps,Half/Full Duplex

                   IEEE STD.802.3X FLOW CONTROL AND BACK PRESSURE

                   IEEE STD.802.3AZ Energy Efficient Ethernet

-Protocols: CSMA/CD

-Transmission Method: Store and forward

-MAC ADDRESS: Support 8k MAC address

-Maximum Forwarding Packet Length: Supports 9216-byte jumbo packet length forwarding at wire speed

-Filtering/Forwarding Rates: 1000Mbps Port – 148800pps

                                              100Mbps Port – 14880pps

                                              10Mbps Port – 14880pps

-Network Cable: 4-pair UTP/STP Cat 5 cable

-LEDs: Link/Activity per Ethernet port

           Power: On/Off for switch

-Power Supply(IN):Power over Ethernet 24V @ 18W on SPARE pair ( to supply power to the HDV switch as well as a compatible POE device(e.g. CPE)

-No. of Ethernet Ports that can PowerOn the Switch & ONU: Any one /all of the seven Downlink Ports

-Power Over Ethernet: Power over Ethernet injector on Four Pair Cable

-DC Out: 12V/2A DC OUT THROUGH DC jack for powering other Device like ONU

-Ethernet Devices that can be powered: Single

-CAT-5 Cable Date Lines: Pair 1:Pins 1/2,Pair 2:Pins3/6

-CAT-5 Cable Power Lines: +VDC: Pins 4/5,-VDC:Pins 7/8

-Power consumption: 5 Watt (Poe injector) / 2 Watt (Switch)

-Operating Temperature: 0℃to 50℃

-Storage environment: 0℃ to 75℃

-Operating Humidity: 20% to 95% (non-condensing)

-Dimension of Switch: 125mm*70mm*25mm

-Weight of Switch: 0.45KG
