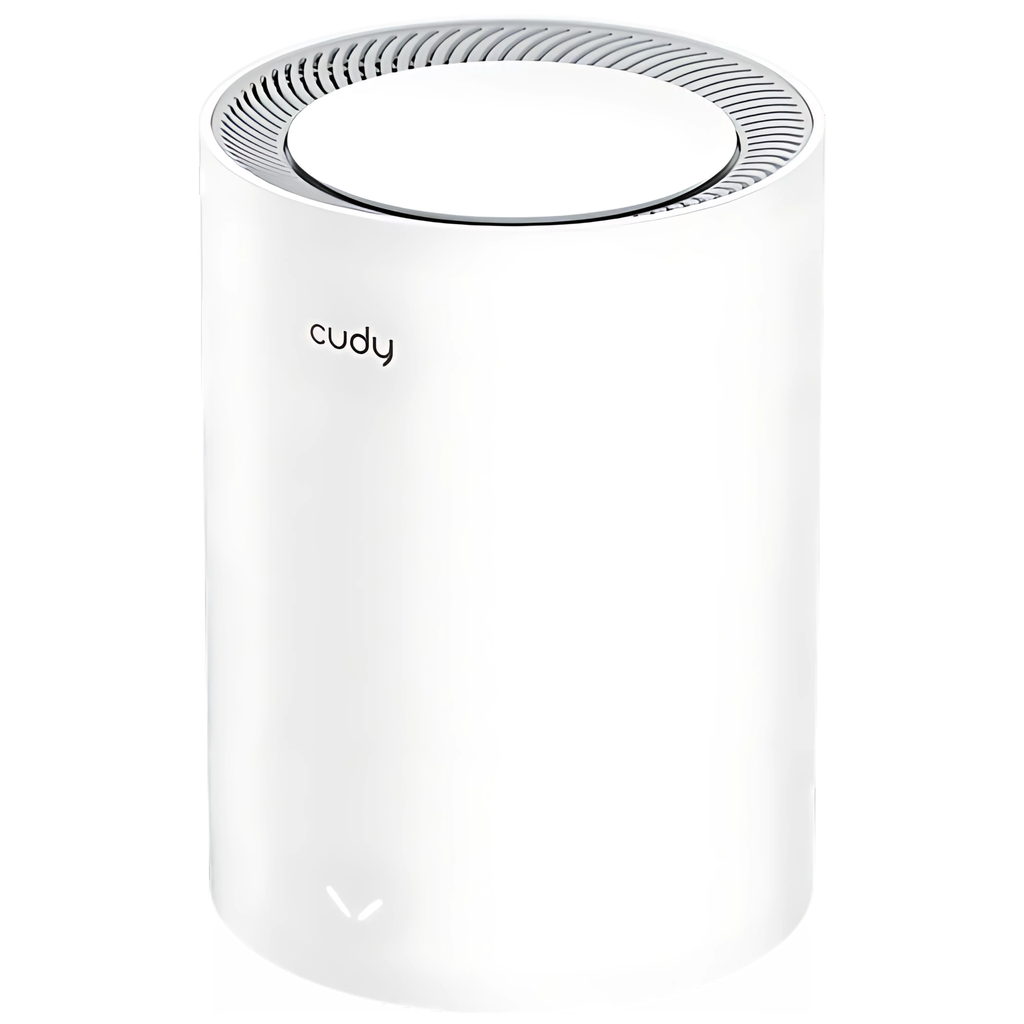

Cudy BE3600 Wi-Fi 7 Mesh Solution Model: M3600 (1-Pack)

https://www.danoun-tech.com/web/image/product.template/2892/image_1920?unique=4de7bab

$ 47.00 47.0 USD $ 47.00

$ 47.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
Brand: Cudy
Cudy
Cudy
Model Number :
M3600 (1-Pack)
Categories :
Mesh System
Tags :

Cudy BE3600 Wi-Fi 7 Mesh Solution Model: M3600 (1-Pack)

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.

  •  4-Stream Dual-Band Wi-Fi 7
  •  2882 Mbps + 688 Mbps Wi-Fi 1
  •  3× Gigabit Ethernet Ports
  •  200 Connected Devices 2
  •  Cudy Mesh, VPN Server and Client
  •  Cudy App, Cloud Control


CPUCPU Details2.0 GHz Quad-Core, ARM Cortex-A7
Memory/StorageFlash/ROM128 MB (1 Gbit) NAND
DDR/RAM512 MB (4 Gbit) DDR3L
Wireless5 GHz Wi-Fi Speed2882 Mbps
2.4 GHz Wi-Fi Speed688 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Internal
5 GHz Antenna Gain Max5.5 dBi
2.4 GHz Antenna Gain Max5.4 dBi
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
BeamformingTrue
Range PerformanceMax: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
InterfacesGigabit RJ45 Ports3
Ethernet Notes1× WAN port, the rest are LAN ports
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC Input12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)9W
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallationDesktop
DimensionΦ110×154.5 mm
Φ4.33×6.08 inches
Product Weight
  • 2-Pack | EU: 717.9 g (25.32 oz.)
  • 3-Pack | EU: 1075.8 g (37.95 oz.)
  • 1-Pack | EU: 357.6 g (12.61 oz.)


WirelessWi-Fi StandardsWi-Fi 7
Max Wi-Fi Modulation4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity512
Recommended Client Upper Limit200
Max Wi-Fi Channel Width160 MHz
Wi-Fi SecurityWPA/WPA2/WPA3
Guest Network2.4 GHz, 5 GHz
WPSTrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
MeshCudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band BackhaulTrue
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LANTrue
Online DetectionTrue
ManagementParental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLED ControlTrue
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log

M3600_1.0_Datasheet.pdf
Download
