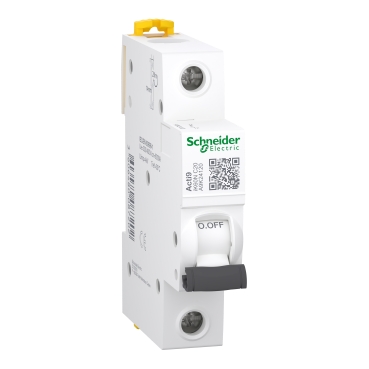

Schneider Breaker MGA9K24120 Ik60N 1P 20A C
| Brand: Schneider |
Model Number :
MGA9K24120Categories :
Circuit BreakersSchneider Breaker MGA9K24120 Ik60N 1P 20A C
Main
| Device Application | Distribution |
|---|---|
| Range | Acti9 |
| Product Name | Acti9 iK60 |
| Product or Component Type | Miniature circuit-breaker |
| Device Short Name | iK60N |
| Poles Description | 1P |
| Number of Protected Poles | 1 |
| [In] Rated Current | 20 A at 30 °C |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Breaking Capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for Isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
