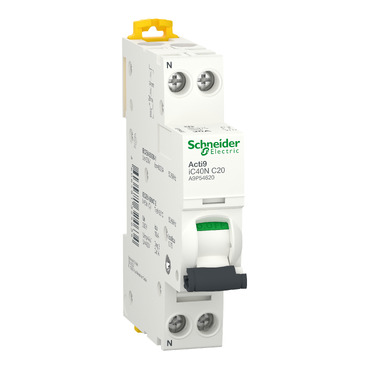

Schneider Miniature Circuit-Breaker MGA9P52620 Acti9 iC40 1P+N 20A
Model Number :
MGA9P52620Categories :
Circuit BreakersSchneider Miniature Circuit-Breaker MGA9P52620 Acti9 iC40 1P+N 20A
| Range | Acti9 |
|---|---|
| Product name | Acti9 iC40 |
| product or component type | Miniature circuit-breaker |
| Device short name | iC40N |
| Device application | Distribution |
| poles description | 1P + N |
| Number of protected poles | 1 |
| Neutral position | Left |
| [In] rated current | 20 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10 kA Icu at 230 V AC 50/60 Hz conforming to EN/IEC 60947-2 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Quality labels | AENOR RCM IMQ OVE |
