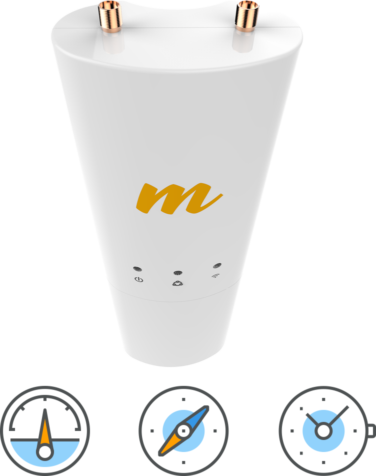

Mimosa C5C

Performance

Max Throughput PTP/PTMP: 700 Mbps IP (866 Mbps PHY)

Wireless Protocols WiFi Interop

Mimosa SRS

Modes PTMP Client

PTP Backhaul

Radio

MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM

Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;

Tunable to standard WiFi channels for WiFi Interop

Frequency Range PTMP: 4900-6400 MHz***

PTP: 4900-6400 MHz

Restricted by country of operation

*new* US/FCC 5600-5650 MHz support

FCC DFS (U-NII-2a, U-NII-2c) availability pending certification

Max Output Power 27 dBm

Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz

-90 dBm @ 40 MHz

-93 dBm @ 20 MHz

Power

Max Power Consumption 9.2 W

System Power Method Passive PoE (24-56 VDC)

PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included)

Physical

Dimensions Depth 44 mm (1.73")

Width 65 mm (2.56")

Height 188.4 mm (7.42")

Weight 295 grams (10.4 oz)

Mounting Single pole strap

Connector Type RP-SMA (x2)

Environmental

Outdoor Ingress Protection Rating IP55

Operating Temperature -40°C to +55°C (-40°F to 131°F)

Operating Humidity 5 to 100% condensing

Operating Altitude 4420 m (14501') maximum

Shock & Vibration ETS 300-019-2-4 class 4M5

Features

Gigabit Ethernet 10/100/1000-BASE-T

Management Services Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI

Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)

Dynamic auto-optimization of channel and bandwidth use

Security WPA2 + Mimosa 802.1x Client**

QoS Supports 4 pre-configured QoS levels

Regulatory + Compliance

Approvals FCC Part 15.407 and Part 90Y, IC RSS210,

CE, ETSI 301 893/302 502

Other National Regulations

RoHS Compliance Yes

Safety UL/EC/EN/ 60950-1 + CSA-22.2
