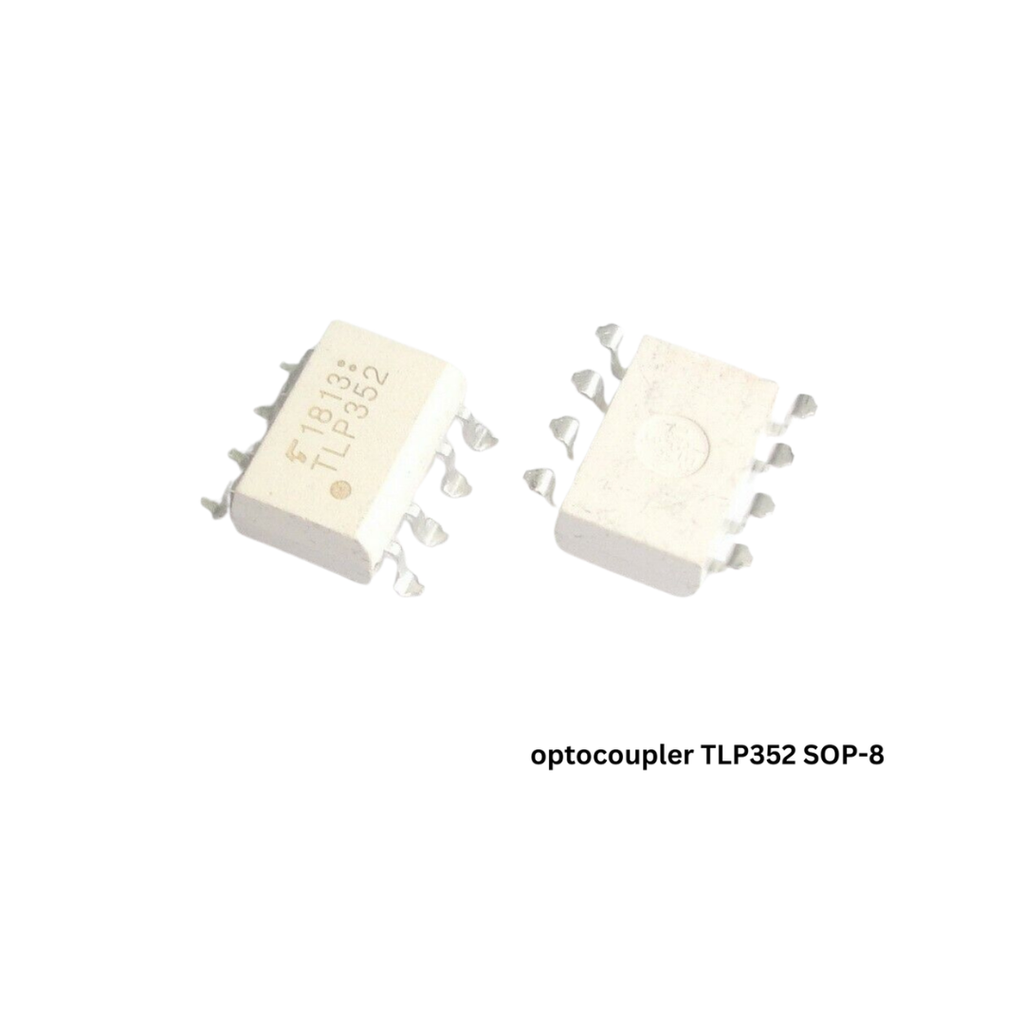

Optocoupler TLP352 SOP-8®

Description:

The TLP352 SOP-8 is an optocoupler that is commonly used to isolate digital circuits from high voltage or noise signals.

Features:

Peak output current: IO = ±2.5A (max)

Supply current: ICC = 3.0 mA (max)

Power supply voltage: VCC = 15 to 30 V

Threshold input current: IFLH = 5 mA (max)

Propagation delay time: 200 ns (max)

Common mode transient immunity: ±20 kV/μs (min)

Isolation voltage: 3750 Vrms (min).

The TLP352 SOP-8 optocoupler is widely used in various applications, including industrial automation, power supply control, motor control, and digital signal isolation. It provides protection against voltage spikes, electromagnetic interference, and noise, ensuring reliable and safe operation of connected circuits.
