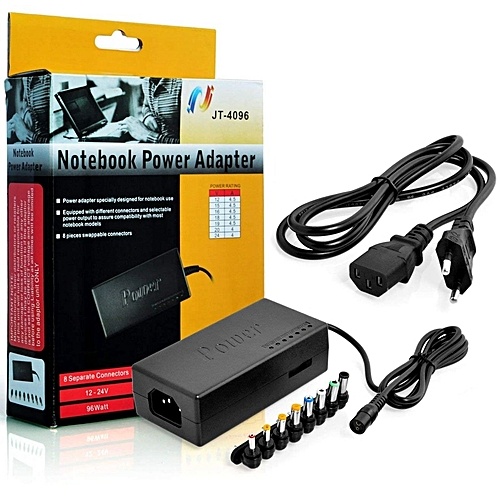

NoteBook Power Adapter Universal

power supply for laptop, operating at input AC voltage 100V to 240V or output DC voltage of 12-24V or 15-24V

This model is an universal switching power supply for laptop, operating at input AC voltage 100V to 240V or output DC voltage of 12-24V or 15-24V,with many protection functions, use for the notebook computer power supply.

· This adapter has protection against short circuit and overload.

· Stabilized output, low ripple and low interference.

· Adjustable output voltage.

· High efficiency and low power consumption.

· Power LED to monitor power

. Simply change the voltage selector switch to use on different devices.

· Fits most notebooks and laptop computers.

· 8 interchangeable tips for flexible adaptability for different models of laptops

· Products that have output in this range can be used. With 7 adjustable gears.

· The 7 gear positions are: 12V15V16V18V19V20V24V DC: (4.0 * 1.7mm) (4.8 * 1.7mm) (5.0 * 1.4mm) (5.5 * 1.5mm) (5.5 * 2.1mm) (5.5 * 2.5mm) (6.0 * 1.4mm) (6.3 * 3.0mm) Rated Input Voltage: AC 110V/240V Input Voltage Range: AC95V-265V Out Power: 70w/90w/96w/100w Input Rated Current(AC): 0.5AMP Input Power: 0.1A Output voltage: 12V/15V/16V/18V/19V/20V/24V(0~+0.5V NOLOAD): DC12V-24V Output voltage: 15V/16V/18V/19V/20V/22V/24V(-0.4/0.5V Rating LOAD): DC12V-24V USB Output: 5V DC Efficiency: 100W Input Power : >88% (TYP) Overload protection: yes Short Circuit Protection: YES Ripple Noise: 500mv Line Regulation: 1% Load Regulation: 1% Operating Cautions Don’t change the output voltage when the adapter is working! Normal operating temperature and humidity Operating temperature: 0 to 40 degrees C; Humidity: 20% to 80%. Abbreviation: 12V4.5A 15V4.5A 16V4.5A 18V4.5A 19V4.5A 20V4A 24V4A
