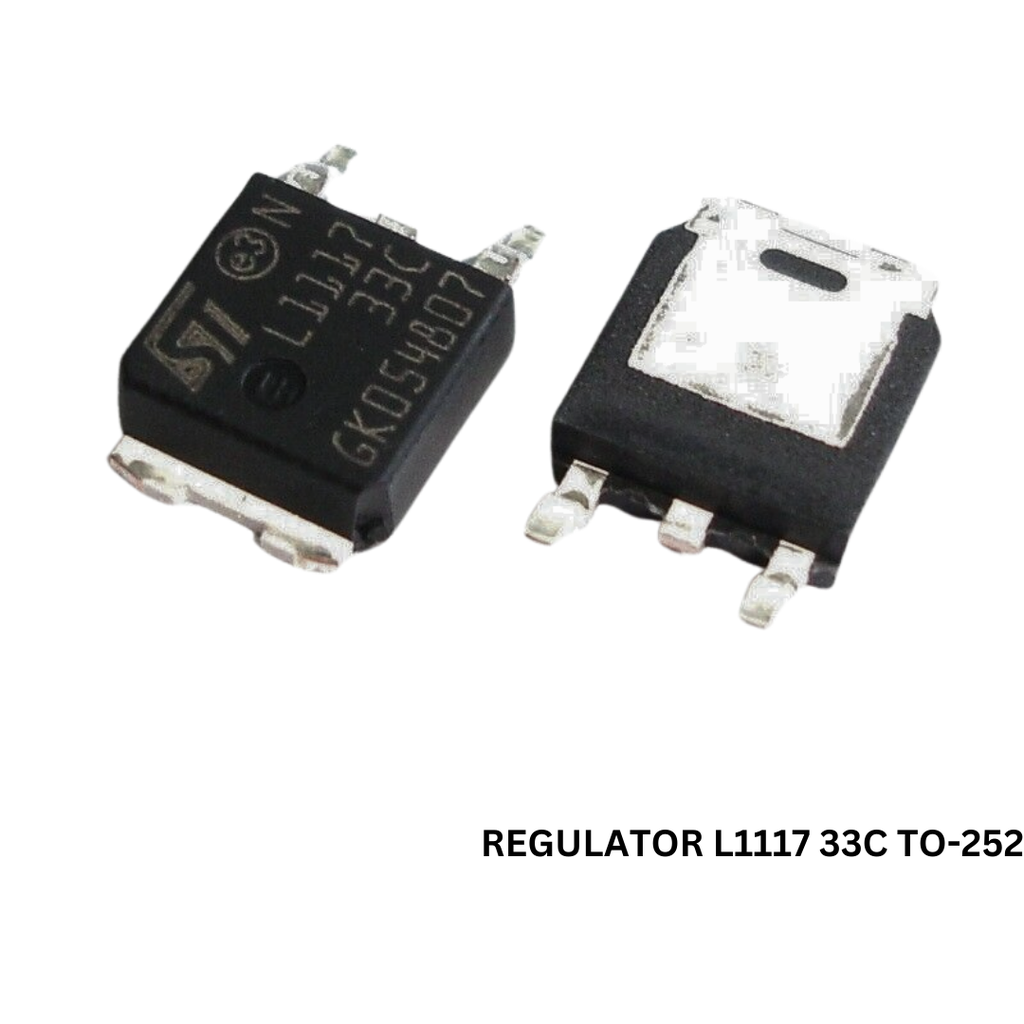

Regulator L1117 33c TO-252 ®

The Regulator L1117 is a voltage regulator with a 3.3V output. It is in a TO-252 package and has the trademark symbol ®.

DESCRIPTION: The L1117 voltage regulator is used to regulate and stabilize the output voltage to 3.3V. It is designed to handle a maximum input voltage of 25V and provides a continuous output current of up to 800mA.

SPECIFICATIONS: The L1117 has a dropout voltage of 1.3V, meaning the input voltage must be at least 1.3V higher than the desired output voltage for the regulator to function properly. It has a low quiescent current of 5mA, making it suitable for battery-powered applications. The regulator also has built-in over-temperature and over-current protection features.

FEATURES: Some key features of the L1117 voltage regulator include:

- 3.3V fixed output voltage

- Low dropout voltage

- Low quiescent current

- Over-temperature and over-current protection

- TO-252 package for easy installation and heat dissipation

BENEFITS: The L1117 regulator offers several benefits, such as:

- Stable and regulated output voltage of 3.3V

- Efficient power conversion with low dropout voltage

- Low power consumption during idle or standby mode

- Protection against excessive heat and current fluctuations

APPLICATIONS: The L1117 voltage regulator is commonly used in various electronic applications, including:

- Embedded systems

- Microcontroller-based projects

- Powering sensors and actuators

- Portable electronic devices

- Battery-powered devices

- Voltage regulation in automotive electronics

Overall, the L1117 33c TO-252 ® voltage regulator provides a reliable and efficient solution for maintaining a stable 3.3V output voltage in various electronic applications, while offering protection against over-temperature and over-current conditions.
