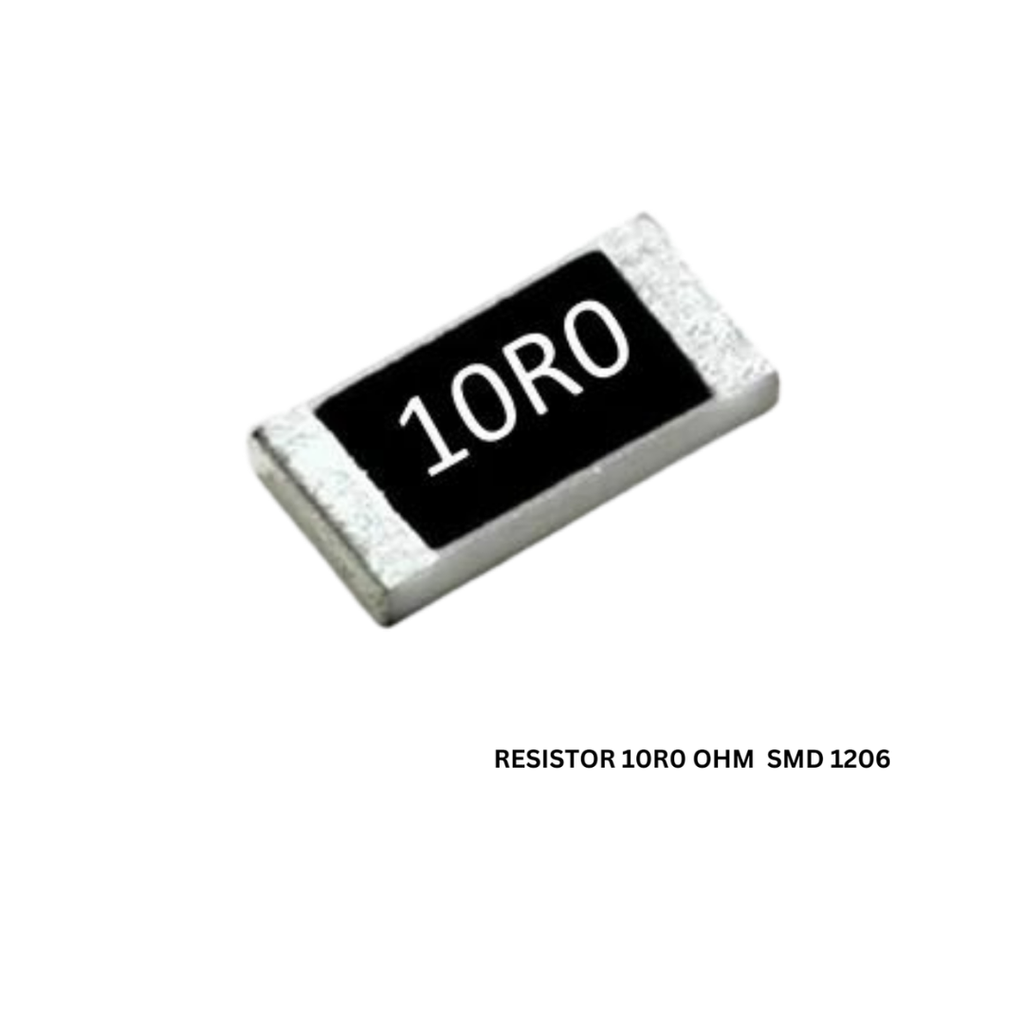

Resistor 10R0 SMD-1206 ®

DESCRIPTION

The Resistor 10R0 SMD-1206 is a surface-mount resistor with a resistance of 10 ohms and a tolerance of ±1%. It is composed of a metal film deposited on a ceramic substrate. The resistor is encapsulated in a plastic case with a flame-retardant coating.

SPECIFICATION

* Resistance: 10 ohms

* Tolerance: ±1%

* Power rating: 0.25 watts

* Operating temperature range: -55°C to +125°C

* Storage temperature range: -55°C to +155°C

* Dimensions: 1.27mm x 0.63mm x 0.45mm

FEATURE

* Compact size

* High accuracy

* Low noise

* Low power consumption

* Excellent stability

BENEFITS

* Easy to mount

* Saves board space

* Suitable for high-frequency applications

* Long lifespan

APPLICATION

* Consumer electronics

* Automotive electronics

* Industrial electronics

* Telecommunications

* Medical electronics
