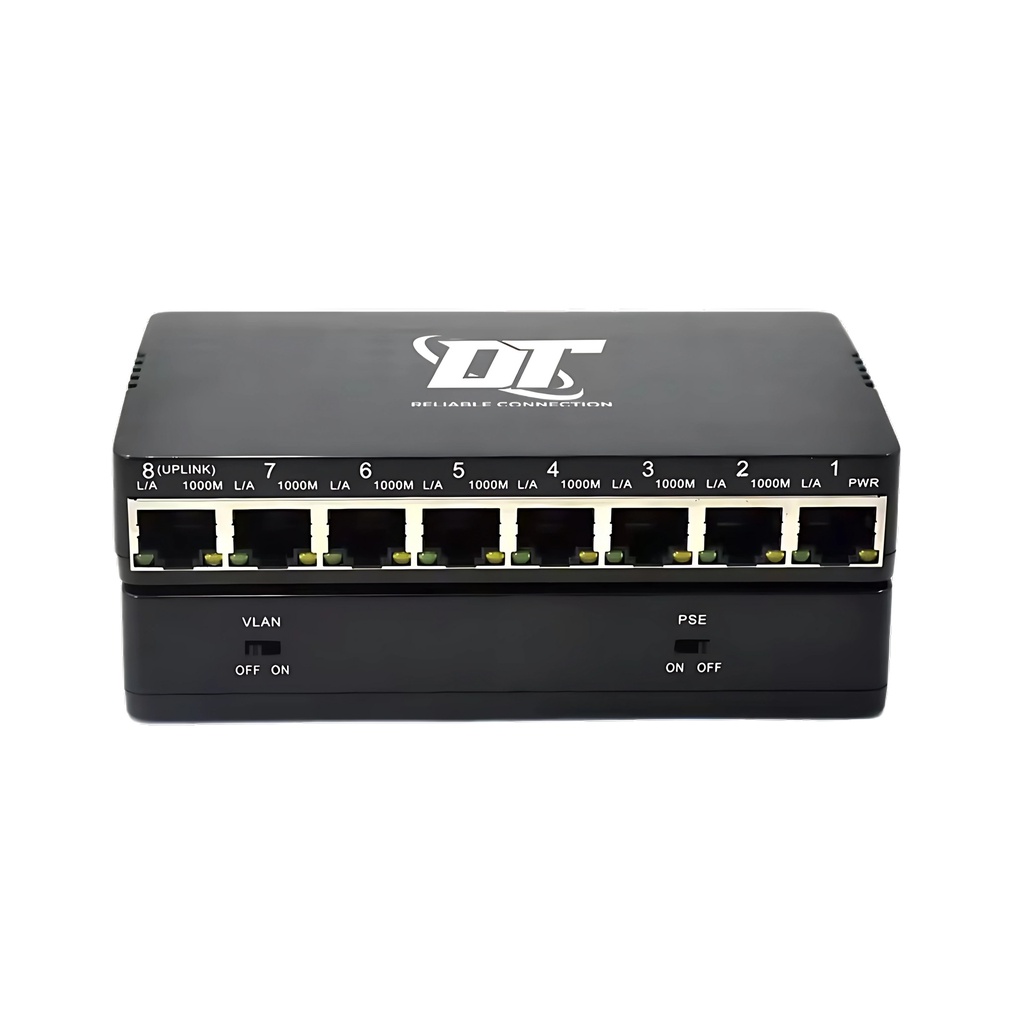

Reverse Switch 8*10/100 Mbps - 7 In + 1 Out Model: SF08RP-2SÂ
10/100Mbps reverse PoE, 8 port PoE out VLAN Support
| Model | SF08RP-2S-White | |
Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3x flow control |
Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiateï¼› | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP） 100Base-TX: ≤100m（CAT3,4,5 UTP） | |
Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 768Kb | |
| Jumbo frames | 2048b | |
| Packet Forwarding Rate | 1.1904Mpps@64byte | |
| Bandwidth | 1.6G（non-blocking） | |
LED indicator | Power indicator | Green, power |
| Ethernet indicator | Green, per ethernet port | |
Power parameters | Input voltage | 14V- 48V DC |
| Power consumption | ≤2W | |
| PoE pin | 4/5+,7/8- | |
Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
Physical properties | Size | 130×76×25mm |
| Weight | Net weight:150g |
