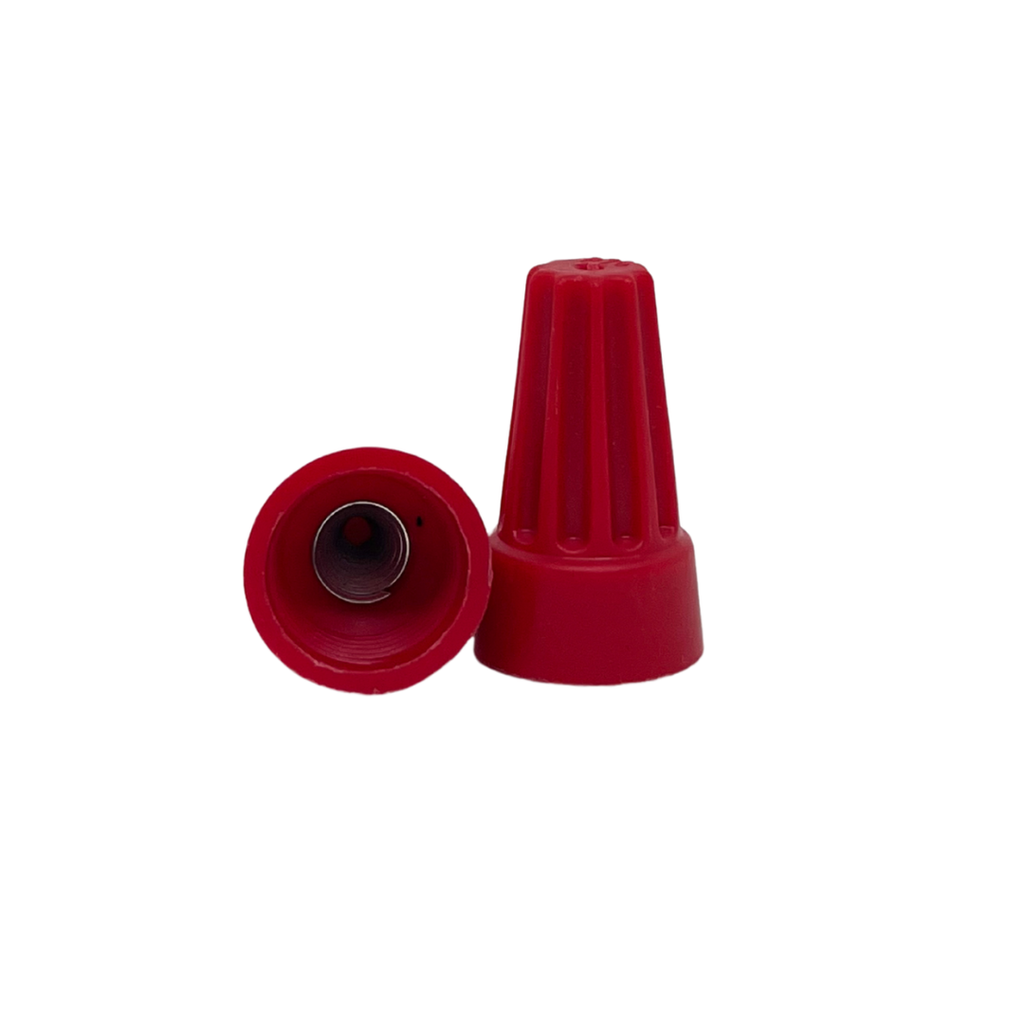

Screw On Wire Connector P6
Description:
P6 screw-on wire connectors are compact electrical connectors used to secure and insulate wires in electrical installations. These connectors are commonly employed to join two or more conductors securely. They offer a convenient and mess-free alternative to traditional soldering or crimping methods.
Specifications:
- Size: P6 (suitable for wires with a cross-sectional area ranging from 0.14 to 0.25mm²)
- Material: High-quality brass or copper alloy
- Insulation: Thermoplastic material (e.g., nylon)
- Voltage Rating: Typically up to 250V or 450V (depending on the specific model)
- Current Rating: Typically up to 10A or 15A (depending on the specific model)
- Wire Range: Accommodates wires with diameters ranging from 0.5mm to 1.5mm
Features:
- Twist-and-lock design: The connectors feature a simple twist-and-lock mechanism that ensures secure and fast wire connection with a twist of the hand.
- Compact design: With a compact form factor, these connectors take up minimal space and are suitable for confined spaces.
- Insulation cap: A protective insulation cap is provided, which covers the connector and provides electrical insulation, preventing accidental contact and short circuits.
- Transparent window: The transparent window allows for easy inspection of the wires inside the connector, ensuring proper connection and aiding in troubleshooting.
- Screw-on connection: The screw-on design ensures a strong and secure hold on the wires. The screws are made from conductive material, ensuring good electrical connection.
Benefits:
- Quick and convenient: P6 screw-on wire connectors offer a simple and efficient method for connecting wires, eliminating the need for soldering or crimping, which saves time and effort.
- Reusable: These connectors are reusable, allowing for multiple connection and disconnection cycles. This flexibility is beneficial during maintenance or troubleshooting.
- Improved safety: The insulation cap provides protection against electrical shocks and reduces the risk of short circuits, ensuring user safety.
- Transparent window: The transparent window enables easy visual inspection of the wire connections, helping identify any loose or improperly connected wires.
- Reliable and secure connection: The screw-on mechanism guarantees a reliable and secure connection between the wires, ensuring uninterrupted electrical flow.
Applications:
- Home electrical repairs and installations: P6 screw-on wire connectors are commonly used in residential electrical projects, including lighting fixtures, outlets, switches, and appliance connections.
- Automotive electrical systems: These connectors are employed in automotive wiring, where they help connect wires for lights, sensors, motors, and other electrical components.
- Industrial machinery: In industrial settings, P6 connectors are utilized to connect wires within control panels, motors, and various machinery components.
- Commercial electrical applications: In commercial buildings, these connectors are used in wiring systems for lighting, power outlets, communication networks, and security systems.
