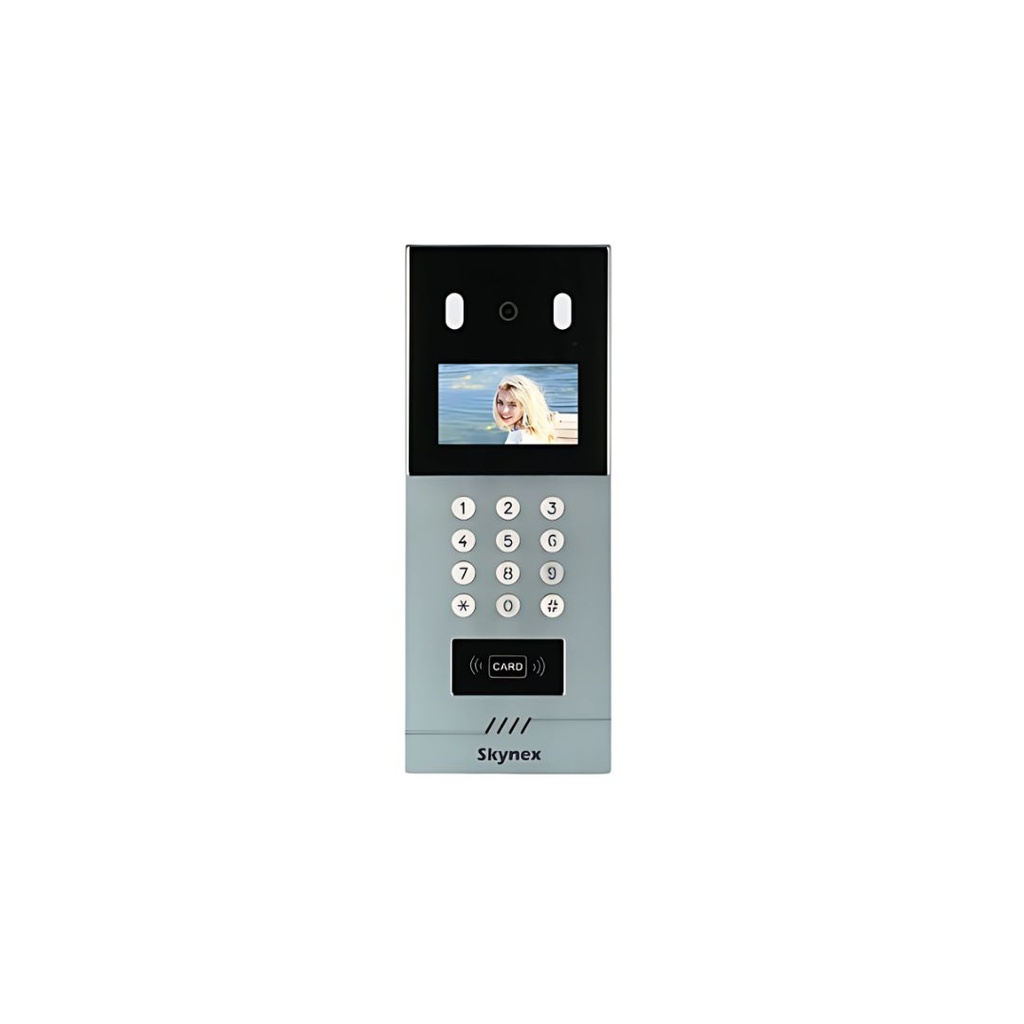

Skynex 4.3-inch IP Apartments Outdoor Station Press Button Model Nb: SKY-IP-D22

Features

1. 4.3 inch display, Aluminum alloy shell ,physical press

button, metal material , Embedded box.

2. HD camera light compensation with night vision

3.Dual way call , talk , intercom , unlock

4.Enter 1/ 2 /3 or 4digit room number to call. for

example 1, 11 , 111 ,1111.

5.Various unlock ways: ID/ IC card; NFC card; public &

private

passcode ; indoor monitor; management center guard

staion, management PC application to open the door.

6. IP54 water proof, weather protection.

7.Can connect with electric/ magnectic/ cathode lock

,etc.

8.Call lift function can be realized via lift control linkage

module and RS 485 protocol .

9.Support picture , video advertisement broadcast

function on screen.

Specifications

●Resolution: 1080P , 2 MP , 1 camera

●Display: 4.3 TFT LCD

●130° wide view angle

● support connect 9999 households

●Resolution: 480*272

●Material: Aluminum alloy shell + Metal

physical press button

●Network Transmission Mode: TCP/IP

protocal

●Connection: CAT5/ CAT 6

●Ethernet interface:RJ45

●Charge: non-standard POE switch /

Power

●IC Card Capacity: no limited

●Operation Current: ≤1A

●Operation Voltage: DC 12-15V

●Operation Temperature: -40℃~ +70℃

●Outline Dimensions: 360*140*50mm

●Installation Dimensions:

350*130*50mm

●Installation: Flush/ Embedded
