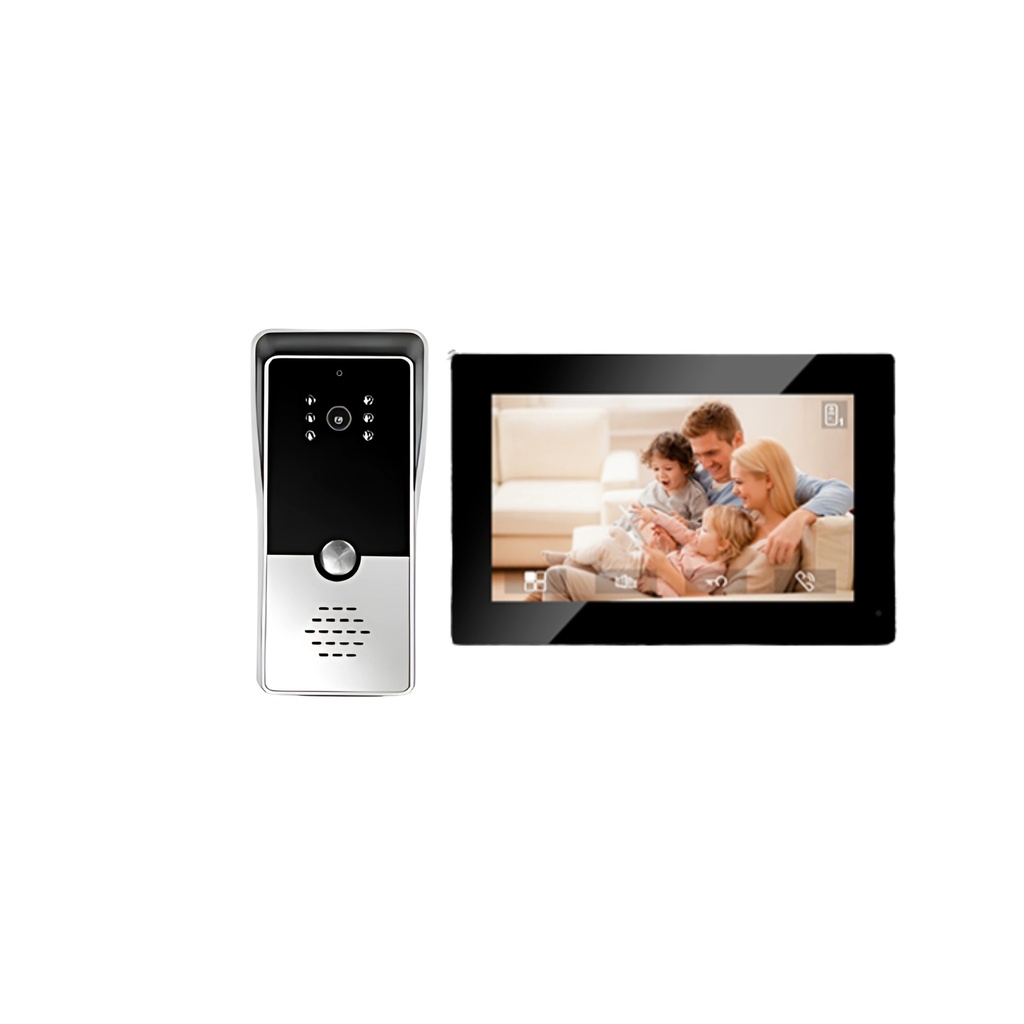

Skynex 4 Wire 7 Inch Analog Villa Kit Model Nb: SKY-LNX-M72T-4W + SKY-LNX-P5-4W

Features

1. Indoor monitor:  7 Inch full touch screen, external  power adpter , simple UI Icon to operate.

2. Outdoor station: wide angle 100º , IP65waterproof ,weather protection.

3. White light LED compensation: high-definition night vision  ,better color effect, HD video .

4. Power supply: indoor Monitor power fromadapter ; outdoor station can get power from indoor monitor adapter directly.

5. Max system: 2 call panels+  4 indoor monitors direct series.

6. Unlock 2 door :  (1 unlock signal connect to indoor monitor ,anothor unlock signal connect to outdoor station)

7. Connect door lock : if  connect electronic lock, both outdoor station and electronic lock can get power from indoor monitor adapter (save the cost of  lock power).  If connect to magnetic lock  need power supply to magnetic lock.

8. Transmission distance : 100 meters, good audio & video effect

Specifications

●4-wire RVV Cable connection

●Installation : Wall mounted

●Net weight: 1.3 kg

►Indoor Monitor

●Display: 7 inch LCD 800*480 pixel

●Power: DC 18V 1A (powered by

adapter)

●Material: ABS plastic + Acrylic Panel+

Full Touch Screen

●Operating Temperature:-20℃~55℃

●Color: White/Black

●Dimensions:190(L)x18(W)x122(H)mm

►Outdoor Station

●Camera: HD 1000TVL

●Viewing Angle: 100º

●Night Vision: White light, 6 pcs White

LEDS

●Power: DC18V 1A (powered by indoor

unit)

●Material: ABS plastic + Acrylic Panel

●Operating Temperature:-30℃~70℃

●Color: Silvery+Black

●Dimensions: 62(L)*38(W)*132(H)mm
