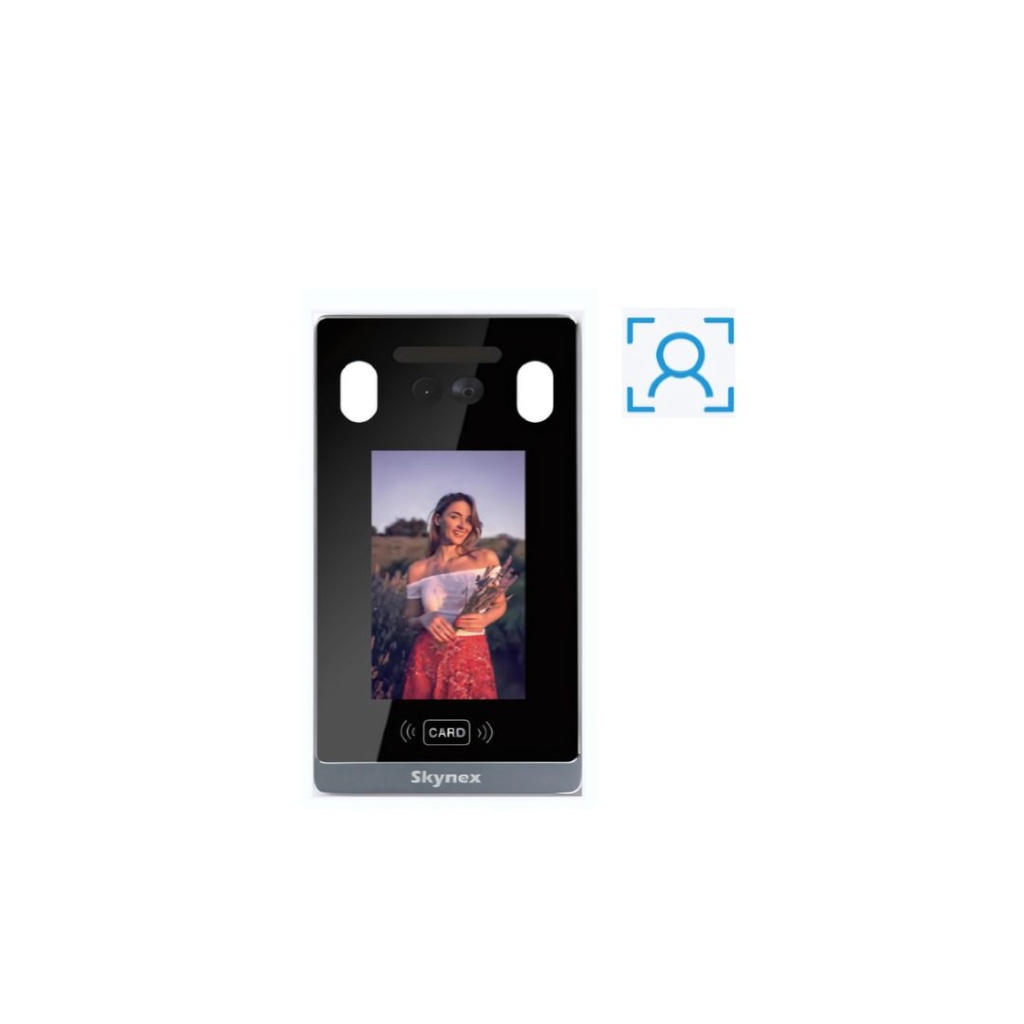

Skynex 5 inch IP Apartments Outdoor Station Touch Screen Face Recognition Model Nb: SKY-IP-D50A

Features

1. 5 inch display, Aluminum alloy shell ,touch screen,,

metal material , Embedded box.

2. HD camera light compensation with night vision

3.Dual way call , talk , intercom , unlock

4.Enter 1/ 2 /3 or 4digit room number to call. for

example 1, 11 , 111 ,1111.

5.Various unlock ways: ID/ IC card; NFC card; public &

private passcode ; indoor monitor; management center

guard staion, management PC application to open the

door.

6. IP54 water proof, weather protection.

7.Can connect with electric/ magnectic/ cathode lock

,etc.

8.Call lift function can be realized via lift control linkage

module and RS 485 protocol .

9.Support picture , video advertisement broadcast

function on screen.

10. Two camera with face recognition: live detection,

20000 face local storage, management center backup,

recognition time less than 0.5 s.

Specifications

●Camera: 1/3 CMOS HD 2 camera

●Resolution: 1080P 2 MP

●130° wide view angle

● support connect 9999 households

●Display: 5 inch TFT LCD IPS

●Resolution: 1280*800

●Material: Aluminum alloy shell + touch

button

●Network Transmission Mode: TCP/IP

protocal

●Charge: non-standard POE switch /

Power

●Ethernet interface:RJ45

●Connection: CAT5/ CAT 6

●IC Card Capacity: no limited

●Face ID Capacity: ≤20000

●Operation Current: <700mA/12VDC

●Operation Voltage: DC 12-15V

●Operation Temperature: -40℃~ +70℃

●Outline Dimensions: 225*125*48mm

●Installation Dimensions：215X115x40

㎜

●Installation: Flush/ Embedded
