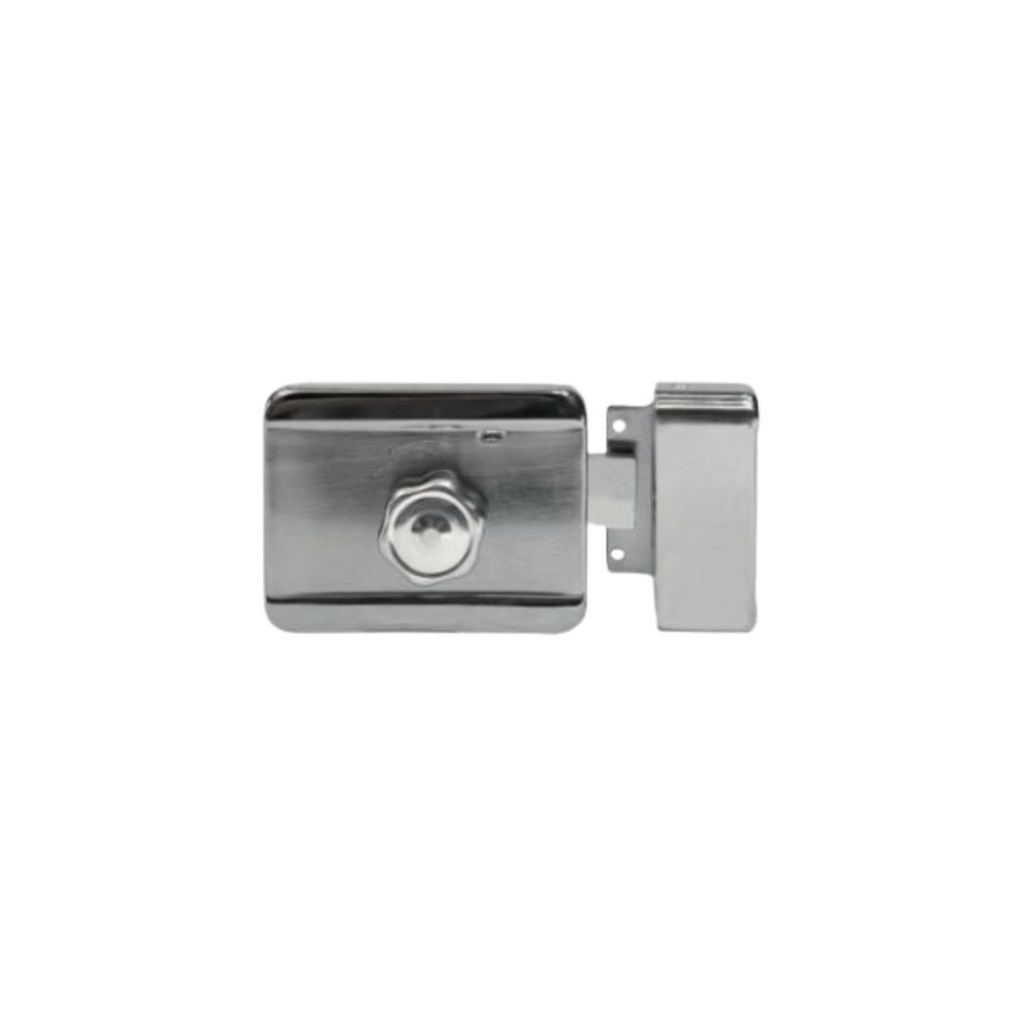

Skynex Electric Lock + 1 Lock Head Model Nb: SKY-280DJS-1

Features

1. compatible with building system and access control system.

2. when turns out the lock tongue after opening the door, automatically

retract the lock tongue and lock normally.

3. Can install in left door, right door, inside door, outside door and

other door.

4. Automatic lock status check function, the door is automatically

locked in 5~8 seconds after opening the lock by mistake or no one

enters.

5.Service life of more than 500,000 times

6. high switch sensitivity , low power consumption, unlocking noise is

small.

7.open door from inside by rotate lock, open door from outside by

keys. Specially for apartment

Specifications

●Operating voltage: DC12-DC 18V

●Switch lock current: < 350mA

●Static current: < 25mA

●Unlocking time: < 1S
