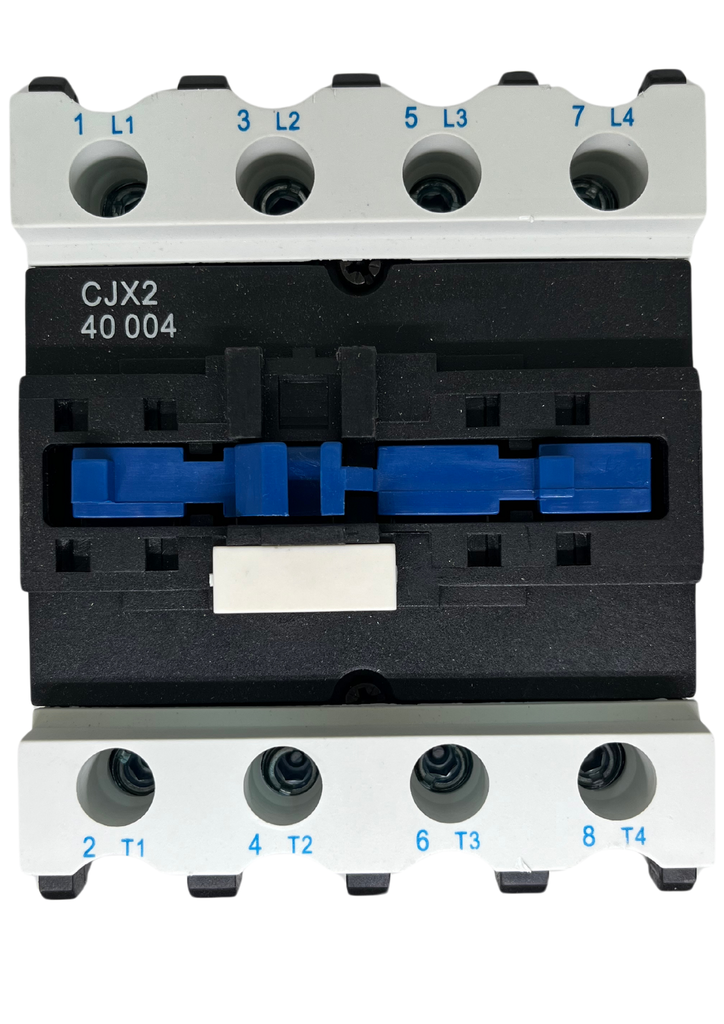

Turnmooner Contactor 4 poles (3 Poles+N) CJX2-40004 CNT0121 LC1D40004(40A-60A) 220V

**Description:**

The CJX2-40004 CNT0121 LC1D40004 contactor, a four-pole (3 poles + N) electrical device used for switching electrical circuits. The file consists of binary data, including specifications, features, and applications of the contactor.

**Specifications:**

- Number of Poles: 4 (3 main poles + 1 neutral pole)

- Current Rating: 40A-60A

- Voltage Rating: 220V

- Coil Voltage: 220V

- Contact Material: Silver alloy

- Mechanical Life: 10 million operations

- Electrical Life: 1 million operations

- Insulation Resistance: ≥ 500MΩ at 500VDC

- Dielectric Strength: 1500V AC for 1 minute

- Operating Temperature: -5℃ to +40℃

- Storage Temperature: -25℃ to +55℃

- Weight: 0.86kg

- Dimensions: 112 x 78 x 57mm

**Features:**

- Compact and lightweight design

- High breaking capacity

- Long mechanical and electrical life

- Low power consumption

- Easy to install and maintain

- Suitable for both AC and DC circuits

- CE and RoHS certified

**Benefits:**

- Space-saving design allows for easy installation in tight spaces.

- High breaking capacity ensures safe and reliable operation in demanding applications.

- Long mechanical and electrical life reduces the need for frequent replacements, resulting in cost savings.

- Low power consumption helps conserve energy and reduce operating costs.

- Easy installation and maintenance minimize downtime and simplify maintenance procedures.

- Suitable for both AC and DC circuits, providing versatility in application.

- CE and RoHS certifications ensure compliance with international safety and environmental standards.

**Applications:**

- Motor control

- Lighting control

- Heating and ventilation control

- Refrigeration and air conditioning control

- Industrial machinery control

- Power distribution systems

- Building automation systems
