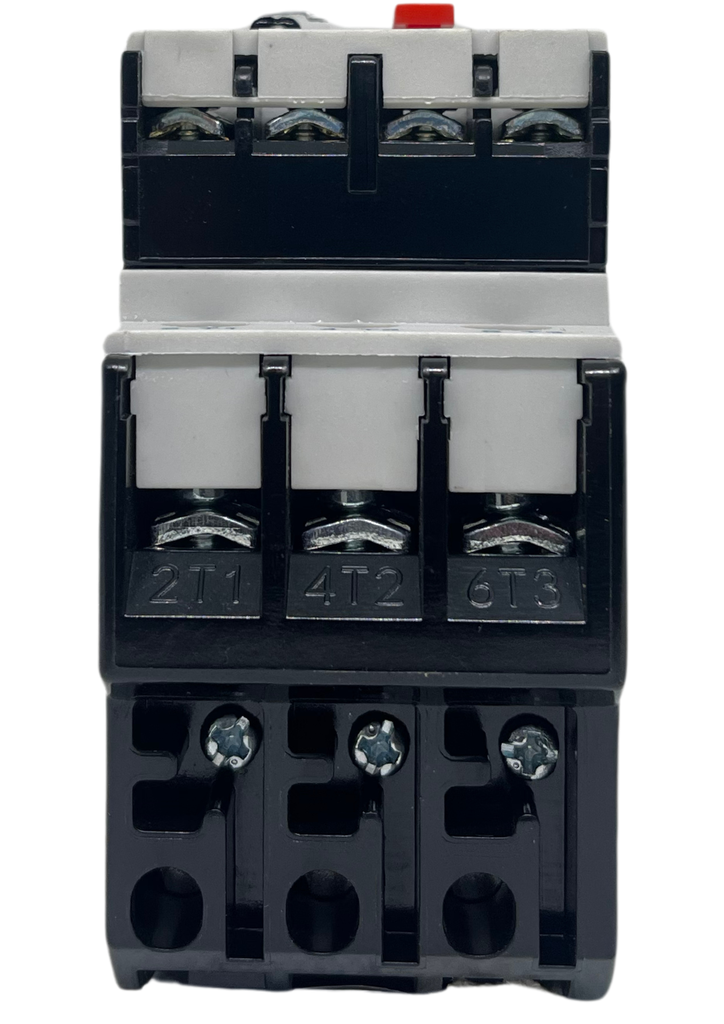

The Turnmooner Thermal Relay LR2D1308 is a reliable and compact thermal relay designed to protect motors from overloads and phase imbalances. It features a bimetallic strip that responds to temperature changes to trip the circuit when an overload condition is detected. With its adjustable trip current range of 2.5A to 4A, the LR2D1308 offers precise protection for various motor applications.
*Specification:*
* Model: LR2D1308
* Rated Current: 2.5 - 4A
* Number of Poles: 3
* Contact Configuration: 1NO + 1NC
* Power Supply Voltage: 24-240VAC/DC
* Contact Material: Silver Alloy
* Protection Class: IP20
* Mounting Method: Screw or DIN Rail
* Operating Temperature: -20°C to +60°C
* Dimensions: 90 x 45 x 36 mm
*Features:*
* Adjustable trip current range (2.5A - 4A)
* Bimetallic strip for accurate overload detection
* Manual reset button for easy operation
* Clear trip indication for quick troubleshooting
* Compact design for space-saving installation
*Benefit:*
* Precise motor protection against overloads and phase imbalances
* Extended motor life due to timely tripping during abnormal conditions
* Reduced downtime and maintenance costs by preventing motor damage
* Easy installation and maintenance with screw or DIN rail mounting options
* Improved safety and reliability in electrical systems
*Application:*
The Turnmooner Thermal Relay LR2D1308 is suitable for various motor applications, including:
* Pumps
* Fans
* Compressors
* Conveyors
* Machine tools
* Industrial machinery
* HVAC systems
* Refrigeration systems
Its compact size and adjustable trip current range make it an ideal choice for a wide range of motor protection needs.
