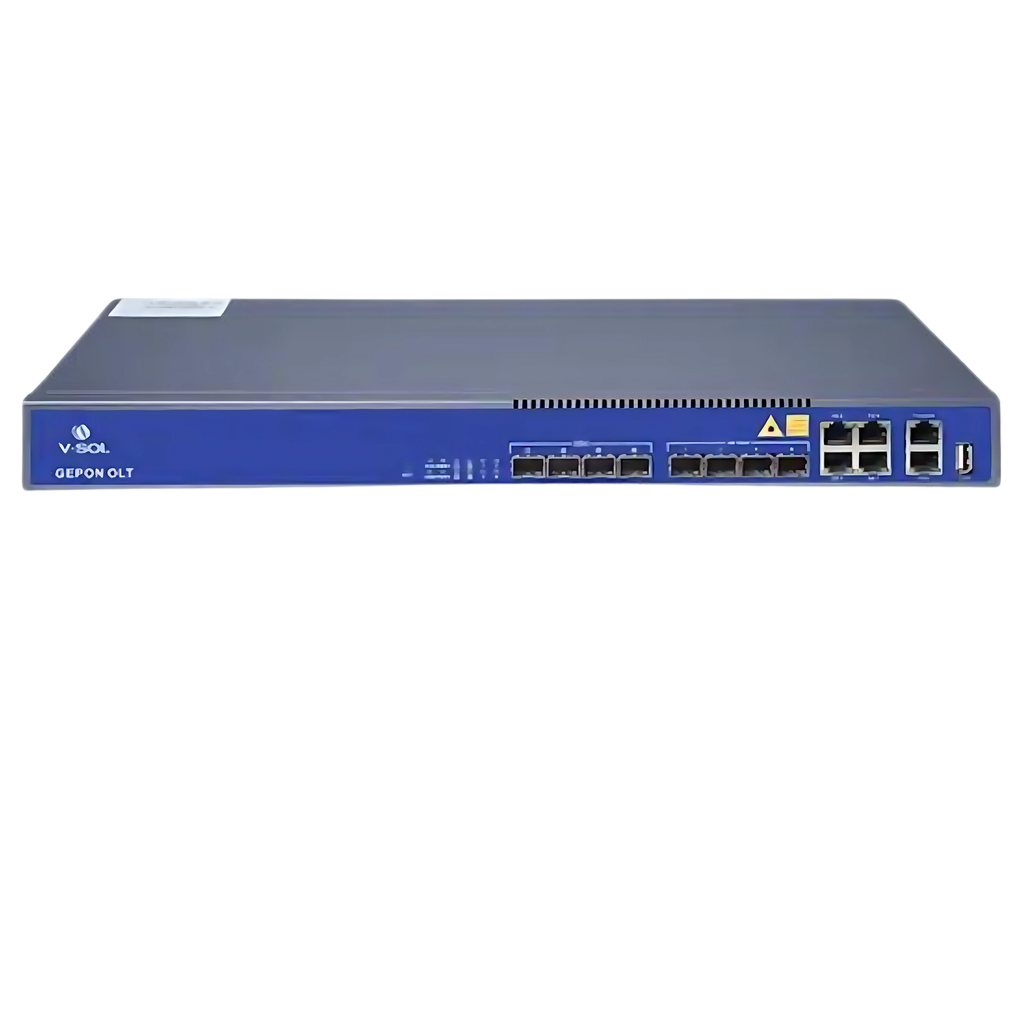

V.SOL GEPON OLT 4 Ports V1601E04-DP

V1601E04-DP/BT   Layer3 4 Ports EPON OLT

Chassis

Rack

1U 19 inch standard box

Uplink Port

QTY

8

RJ45

4

SFP/SFP+

4

EPON Port

QTY

4

Physical Interface

SFP Slots

Max splitting ratio

1:64

Supported PON module level

PX20, PX20+, PX20++, PX20+++

Backplane Bandwidth (Gbps)

128

Port Forwarding Rate (Mpps)

71.424

Dimension (L×W×H)

442mm*200mm*43.6mm

Weight

2.705KG

Power Supply

AC 100~240 V, 50/60 Hz

DC Power Supply

DC: -36V ~ -75V

Power Consumption

30W

Operating

Environment

Working Temperature

-20 ~ +60°C

Storage Temperature

-40 ~ +70°C

Relative Humidity

5~95% (non-condensing)

Power supply

AC

Working Voltage Range: 100 ~ 240V,

Rated Voltage: 110V/220V

DC

Working Voltage Range: -36 ~ -75V,

Rated Voltage: -48V/-60V
