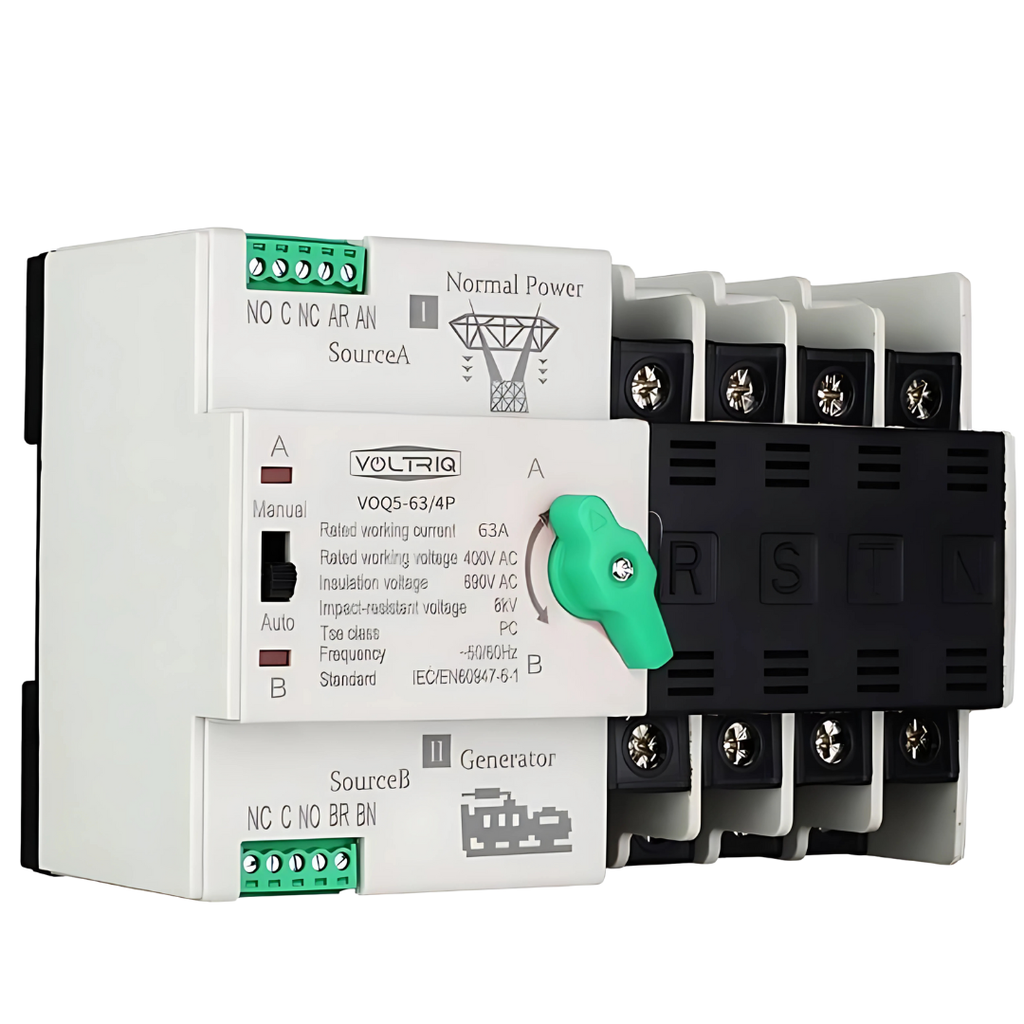

VOLTRIQ ATS 4P 63A City to Generator
| Parameter | Details |
|---|---|
| Rated Current | 63A |
| Poles | 4P (Four Pole – supports 3-phase + neutral) |
| Rated Operational Voltage | AC 230V / 400V, 50/60Hz |
| Rated Insulation Voltage | 690V |
| Rated Impulse Withstand Voltage | 6kV |
| Switching Time | Typically <4 seconds (brief delay during transition) |
| Installation Type | DIN Rail or Panel Mounted |
| Operation Mode | Automatic / Manual |
| Control Logic | Prioritizes city power; switches to generator when city power fails |
| Short-Circuit Capacity | Up to 7.65kA making capacity |
| Mechanical Durability | 10,000 cycles |
| Electrical Durability | 6,000 cycles |
| Environmental Conditions | -25°C to +70°C operating; -35°C to +85°C storage |
| Compliance Standards | IEC 60947-6-1, GB/T 14048.11 |
| Application | Ideal for residential, commercial, and light industrial generator backup |
| Keywords | ATS switch, automatic transfer switch, generator backup, 3-phase power |
