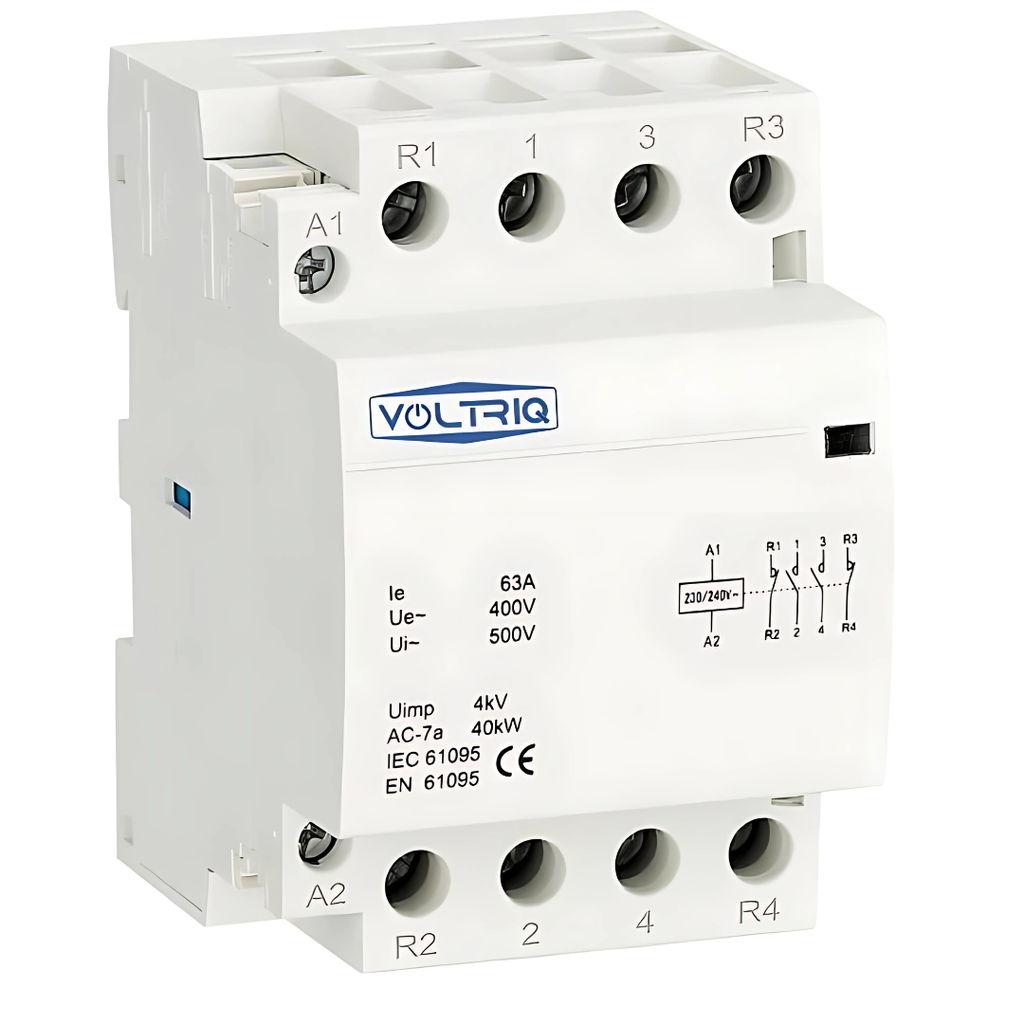

VOLTRIQ Contactor 4P 63A 2NO 2NC
| Parameter | Details |
|---|---|
| Rated Current (Ie) | 63A |
| Poles | 4P (Four Pole) |
| Contact Configuration | 2 Normally Open (NO) + 2 Normally Closed (NC) |
| Rated Operational Voltage (Ue) | AC 400V |
| Control Voltage (Uc) | AC 220V–240V, 50Hz |
| Rated Insulation Voltage (Ui) | 500V |
| Impulse Withstand Voltage (Uimp) | 4kV |
| Mounting Type | DIN Rail |
| Application Category | AC-7a: 14kW / AC-7b: 4.5kW |
| Mechanical Endurance | Up to 100,000 cycles |
| Electrical Endurance | Up to 30,000 cycles |
| Max Switching Frequency | 6 operations per minute |
| Protection Rating | IP20 (IP40 when enclosed) |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W × H × D) | Approx. 85mm × 54mm × 60mm |
| Standards Compliance | IEC/EN 61095 |
| Keywords | modular contactor, 2NO 2NC, 4P, DIN rail, power control |
