VOLTRIQ Single Phase Electricity Meter
| Brand: VOLTRIQ |
Categories :
Adjustable & Voltage RegulatorsTags :

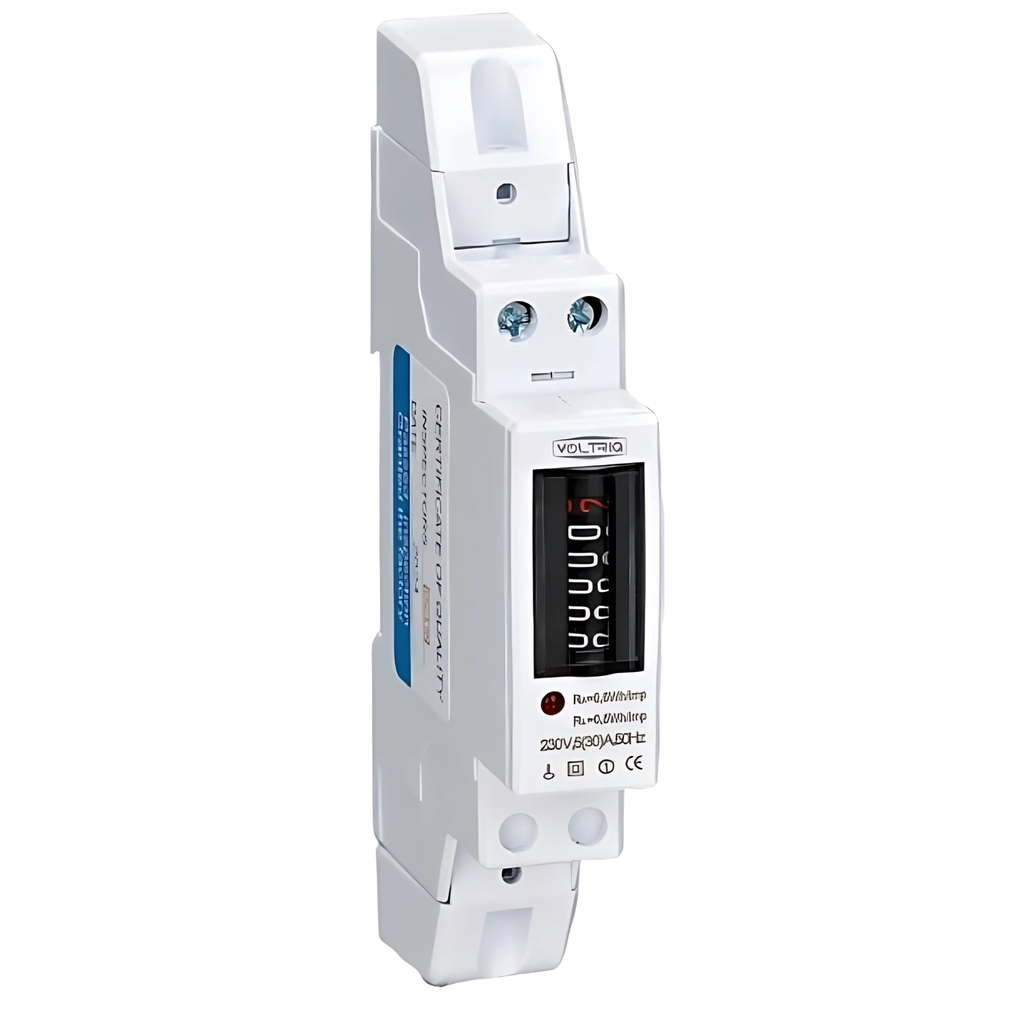

VOLTRIQ Single Phase Electricity Meter
| Parameter | Details |
|---|---|
| Phase/Wire Configuration | Single Phase, 2 Wire |
| Rated Voltage | AC 220V–240V |
| Frequency | 50Hz / 60Hz |
| Accuracy Class | Class 1.0 (±1% error margin) |
| Display Type | LCD (Backlit, real-time energy data) |
| Measured Parameters | kWh (energy), Voltage, Current, Power Factor, Frequency |
| Communication Options | Optional: RS485, WiFi (Tuya Smart), Bluetooth |
| Tamper Detection | Yes – reverse current, magnetic field, terminal cover open |
| Mounting Type | DIN Rail or Flush Mounted |
| Data Logging | Internal memory for consumption history |
| Protection Features | Overvoltage, Undervoltage, Overcurrent alerts |
| Operating Temperature | -25°C to +55°C |
| Compliance Standards | IEC 62052-11, IEC 62053-21, IS 13779 |
| Keywords | energy meter, single phase, smart meter, electricity monitoring |
