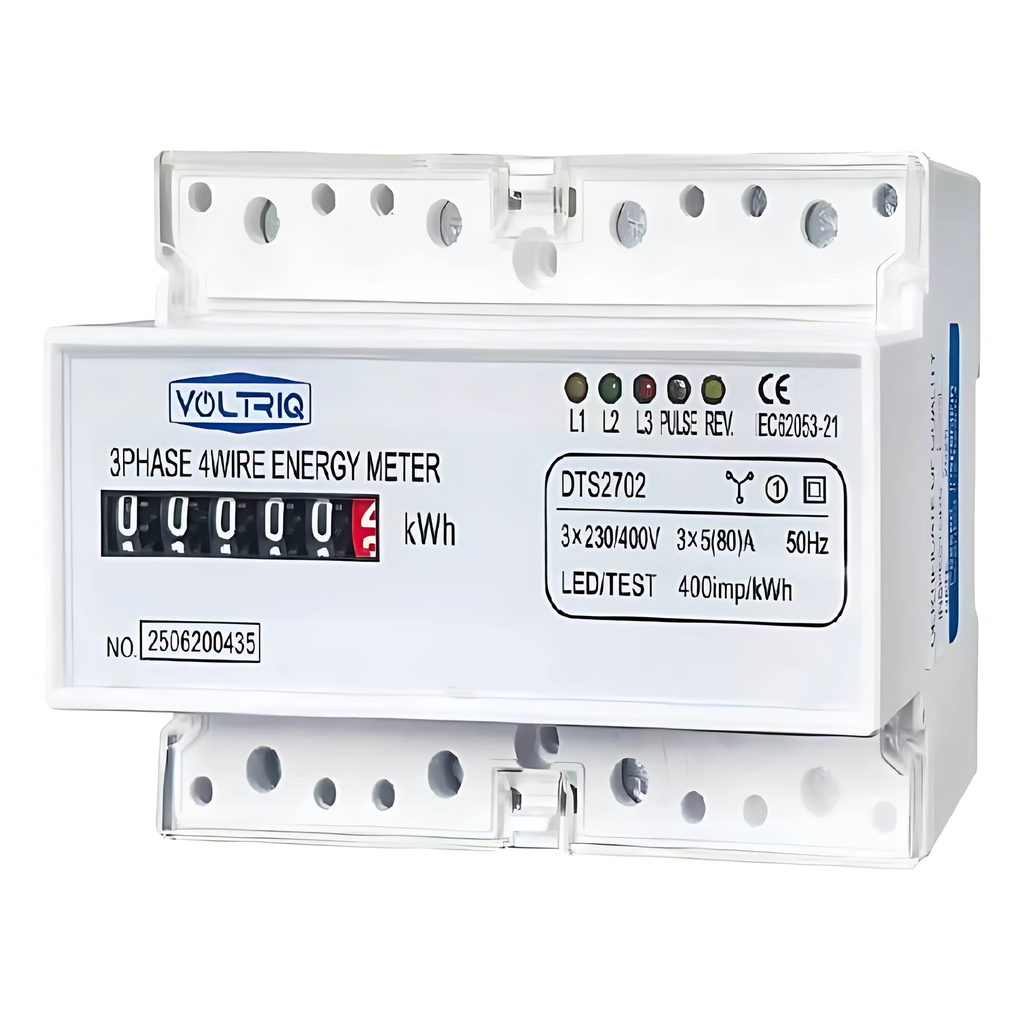

VOLTRIQ Three Phase 4 Wire 80A
| Brand: VOLTRIQ |
Categories :
Adjustable & Voltage RegulatorsVOLTRIQ Three Phase 4 Wire 80A
| Parameter | Details |
|---|---|
| Rated Current | 80A (Direct connection) |
| Phase/Wire Configuration | Three Phase, 4 Wire |
| Rated Voltage | AC 400V, 50/60Hz |
| Accuracy Class | Class 1.0 (±1% error margin) |
| Display Type | 8-digit LCD display (backlit, real-time data) |
| Measured Parameters | kWh, Voltage, Current, Power Factor, Frequency, Active/Reactive Power |
| Communication Interface | RS485 MODBUS (built-in) |
| Mounting Type | DIN Rail (typically 4 DIN modules wide) |
| Certification | MID Certified – suitable for billing applications |
| Tamper Detection | Reverse current, magnetic interference, terminal cover open |
| Data Logging | Internal memory for consumption history |
| Environmental Conditions | Operating Temp: -25°C to +55°C; Humidity: ≤95% RH |
| Compliance Standards | IEC 62052-11, IEC 62053-21 |
| Keywords | 3-phase meter, 4-wire, energy monitoring, MODBUS, billing-grade |
