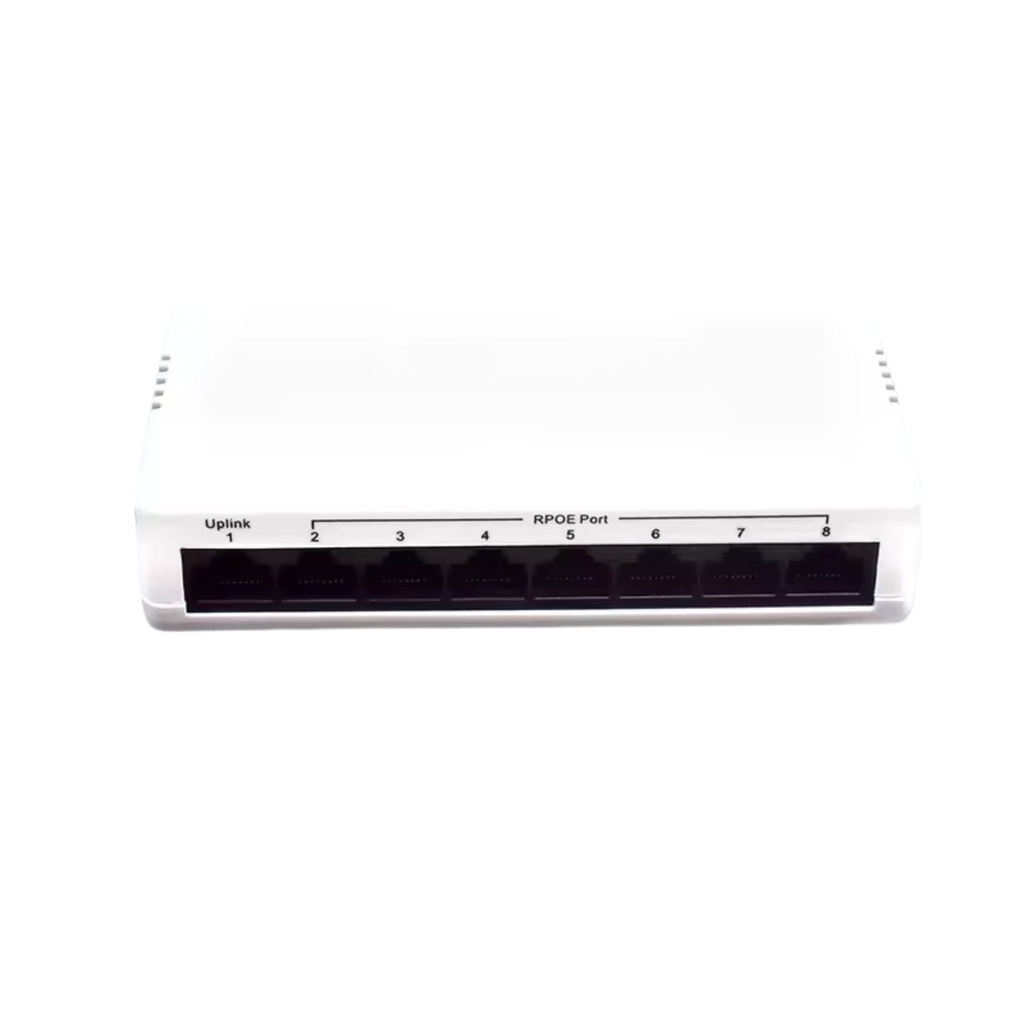

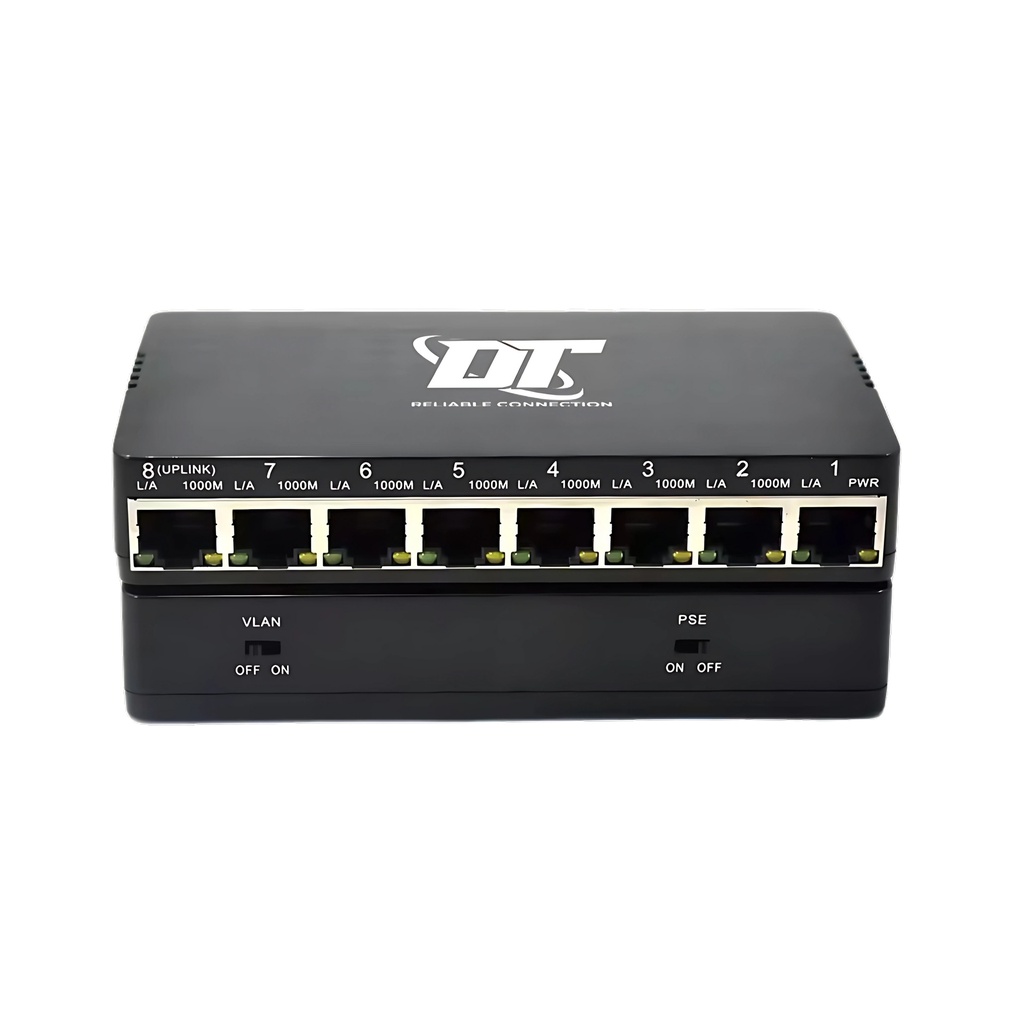

WOR-SG08RP-2S Two button 8* 10/100/1000Mbps reverse PoE switch 1-7 port PoE in, 8 port PoE out VLAN Support

https://www.danoun-tech.com/web/image/product.template/2414/image_1920?unique=e3e3e8a

$ 13.00 13.0 USD $ 13.00

$ 13.00

Not Available For Sale


  • Brand

This combination does not exist.

Brand: WANGLINK


Categories :
Switches

10/100/1000Mbps reverse PoE switch, 8 port PoE out VLAN Support

ModelWOR-SG08RP-S
ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.1p tagged frames
IEEE 802.3x flow control


Ethernet port
Characteristic
Connector Type1×8 RJ45
Transmission rate10/100/1000Mbps auto-negotiateï¼›
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)
100Base-TX: ≤100m(CAT3,4,5 UTP)
1000Base-T:≤100m(CAT3,4,5 UTP)





Exchange performance
Forward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table4K
Case space1.5MB
Jumbo frames9216b
Packet Forwarding Rate11.904Mpps@64byte
Bandwidth16G(non-blocking)

LED indicator
Power indicatorGreen, power
Ethernet indicatorGreen, per ethernet port


Power parameters
Input voltage14V- 48V DC
Power consumption≤3W
PoE pin4/5+,7/8-


Environment
Operating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation

Physical properties
Size130×76×25mm
WeightNet weight:150g
