Cudy AC1200 Wi-Fi Router, Model: WR1200

Price:

20.00


Mini Display Port to VGA Adapter (Cable)
Mini Display Port to VGA Adapter (Cable)
4.50
4.50
Cudy AC1200 Gigabit Wi-Fi Mesh Router, Model: WR1300
Cudy AC1200 Gigabit Wi-Fi Mesh Router, Model: WR1300
25.00
25.00

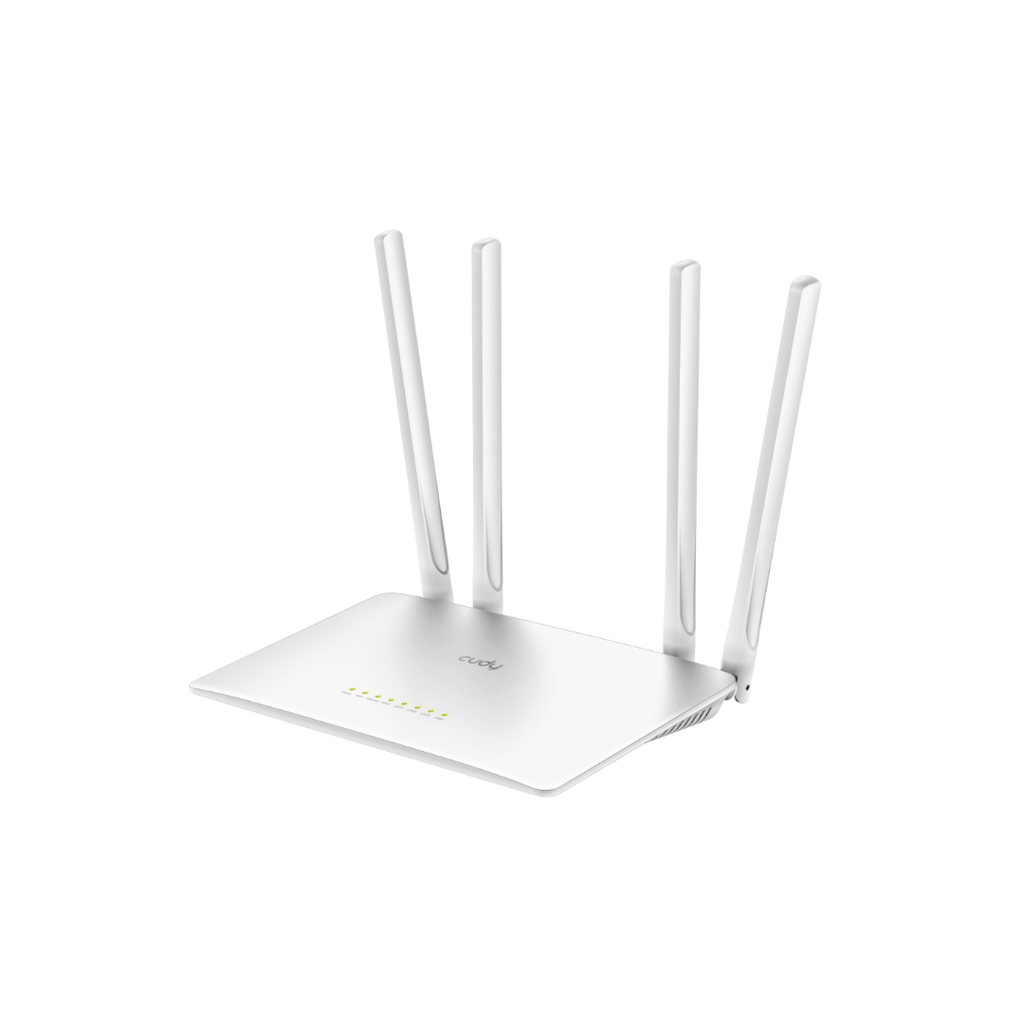

Cudy AC1200 Wi-Fi Router, Model: WR1200

https://www.danoun-tech.com/web/image/product.template/758/image_1920?unique=3da8fa4

20.00 20.0 USD 20.00

15.00

Not Available For Sale


  • Brand

This combination does not exist.

Brand: Cudy


Model Number :
WR1200
Categories :
Routers
Tags :

Cudy AC1200 Wi-Fi Router WR1200

● Speedy AC1200 Wi-Fi

● 5× 10/100 Mbps Ethernet Ports

● 4× 5 dBi High-Gain Antennas

● Beamforming, MU-MIMO

● SPI Firewall

● Guest Network

● WireGuard/OpenVPN/PPTP/L2TP VPN Client

● Multi-Mode: Router/AP/RE/WISP


Specifications:


Hardware Specs

Model VersionWR1200 2.0
CPUCPU Details580 MHz Single-Core, MIPS24KEC
Memory/StroageFlash/ROM8 MB (64 Mbit ) NOR
DDR/RAM64 MB (512 Mbit) DDR3
Wireless5 GHz Wi-Fi Speed867 Mbps
2.4 GHz Wi-Fi Speed300 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Fixed
Range PerformanceMax: 120 m (394 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 3.8 cm (1.5'')
One concrete wall with thickness < 20 cm (7'')
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)
Interfaces10/100 Mbps RJ45 Ports5
Ethernet Notes1× WAN port, the rest are LAN ports
LED
  • Power
  • Internet
  • Speed/Link/ACT of Each Ethernet Port
  • Wi-Fi
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
MechanicalInstallation
  • Desktop
  • Wall-Mounting
Dimension220×135×30 mm
8.66×5.31×1.18 inches
Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformaitonRetail Package Dimension290×250×64 mm
11.42×9.84×2.52 inches
Units per Carton16
Carton Dimension53.8×51.6×31.3 cm


Software Specs

Model VersionWR1200 2.0
WirelessWi-Fi StandardsWi-Fi 5
Max Wi-Fi Modulation256-QAM
Wi-Fi EfficiencyMU-MIMO
Wi-Fi Efficiency NoteMU-MIMO available on 5 GHz
Max Capacity128
Recommended Client Upper Limit40
Max Wi-Fi Channel Width80 MHz
Wi-Fi SecurityWPA-PSK (WPA/WPA2)
Guest Network2.4 GHz, 5 GHz
WPStrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Client
  • Wireguard
  • OpenVPN
  • PPTP
  • L2TP
VPN Performance
  • WireGuard Client (UL/DL): 49 / 43 Mbps
  • WireGuard Server (UL/DL): 43.6 / 48 Mbps
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
Wake on LANtrue
Online Detectiontrue
ManagementAll Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLocal Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • TR069/TR098/TR111/TR181
  • Config Page via HTTP
Firmware UpgradeLocal Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • German
  • Spanish
  • French
  • Hebrew
  • Italian
  • Portuguese
DashboardPanelInternet Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
ChartsInternet Speed, WISP Speed, Wi-Fi Speed
