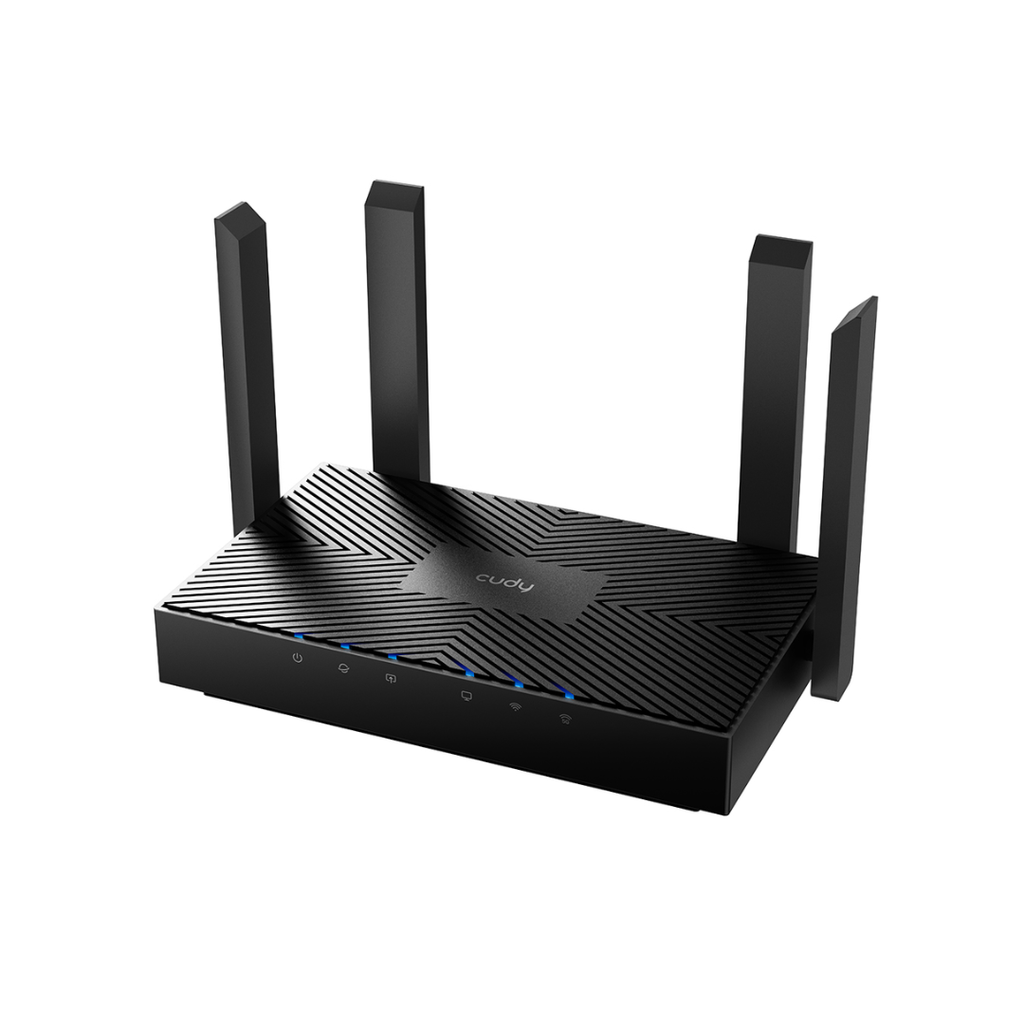

Cudy AX3000 Gigabit Wi-Fi 6 Mesh Router, Model: WR3000
Brand: Cudy |
Cudy AX3000 Gigabit Wi-Fi 6 Mesh Router, Model: WR3000
● Super-Fast AX3000 Wi-Fi 6
● 1.3 GHz Dual-Core Cortex-A53 CPU
● 4× 10/100/1000Mbps Ethernet Ports
● 160 MHz Channel Width
● DL/UL OFDMA and DL/UL MU-MIMO
● Wireguard/OpenVPN/L2TP/PPTP VPN Server and Client
● Cudy Mesh
● IPv4/IPv6
● TR069/TR098/TR181/TR111
Specifications:
Hardware Specs
Model Version | WR3000 1.0 | |
---|---|---|
CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
Memory/Stroage | Flash/ROM | 16 MB (128 Mbit) NOR |
DDR/RAM | 256 MB (2 Gbit) DDR3 | |
Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
Wi-Fi Bands | EU + DFS, US + DFS | |
2.4 GHz Wi-Fi Speed | 574 Mbps | |
5 GHz Wi-Fi Streams | 3T3R (3×3 MIMO) | |
2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
Wi-Fi Antennas | 4× Fixed | |
5 GHz Anntenna Gain Max | 4.8dBi | |
2.4 GHz Antenna Gain Max | 3.4dBi | |
FEM or PA/LNA |
| |
Range Performance | Max: 130 m (427 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
Wall Performance | Three wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') | |
Wi-Fi Transmission Power |
| |

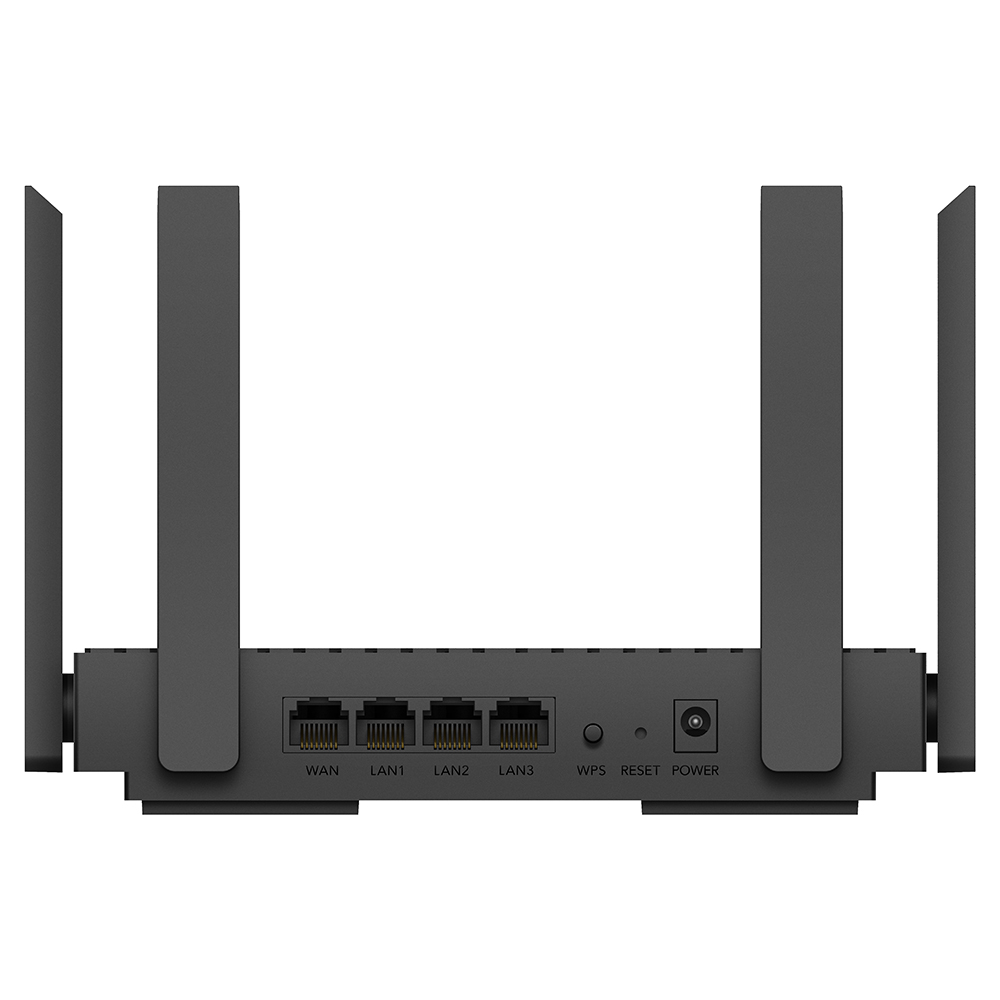

Interfaces | Gigabit RJ45 Ports | 4 |
Ethernet Notes | 1× WAN port, the rest are LAN ports | |
LED |
| |
Physical Buttons |
| |
Power Input | DC Jack | |
Power | Power Methods | DC |
DC | 12V 1A | |
Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
Max Power Consumption (W) | 7.5W | |
Reliability | Environment |
|
Mechanical | Installation |
|
Dimension | 183.3×109×35 mm 7.22×4.29×1.38 inches | |

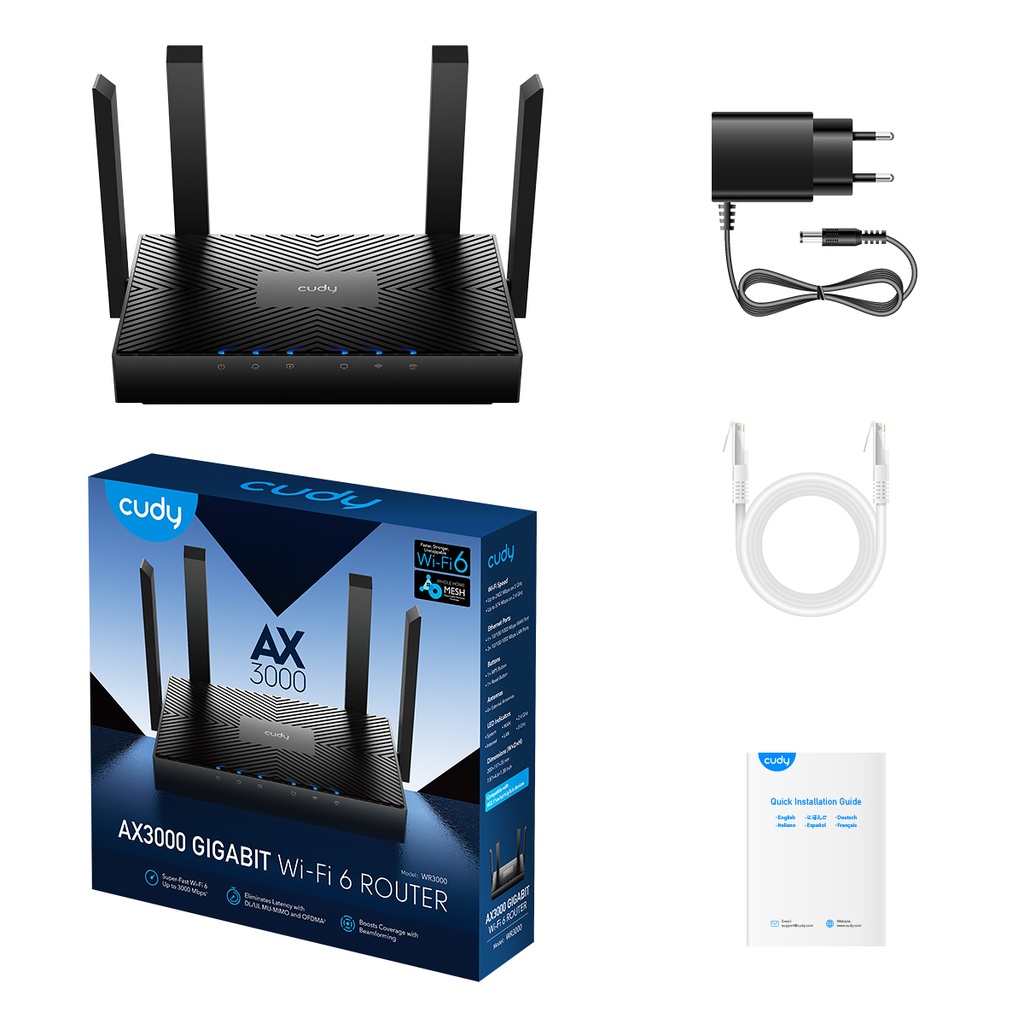

Package Content |
| |
Ordering Informaiton | Retail Package Dimension | 240×230×60 mm 9.45×9.06×2.36 inches |
Units per Carton | 20 | |
Carton Dimension | 49.5×32.5×48 cm | |
Carton Gross Weight | 13 kg (28.66 lbs) | |
Carton Net Weight | 12 kg (26.46 lbs) |
Software Specs
Model Version | WR3000 1.0 | |
---|---|---|
Wireless | Wi-Fi Standards | Wi-Fi 6 |
Max Wi-Fi Modulation | 1024-QAM | |
Wi-Fi Efficiency |
| |
Max Capacity | 512 | |
Recommended Client Upper Limit | 200 | |
Max Wi-Fi Channel Width | 160 MHz | |
Wi-Fi Security | WPA-PSK (WPA/WPA2/WPA3) | |
Guest Network | 2.4 GHz, 5 GHz | |
WPS | true | |
General | Operation Modes |
|
Mesh | Cudy Mesh | |
Mesh Backhaul |
| |
Multi-Band Backhaul | true | |
WAN Mode |
| |
Network | QoS | Per-User Rate Limiting |
DHCP |
| |
IP Versions | IPv4/IPv6 | |
IPv6 Protocols |
| |
IPTV/VLAN |
| |
TTL Customization |
| |
IGMP |
| |
Forwarding |
| |
Firewall |
| |
Application Layer Gateway |
| |
Utilities | VPN Server |
|
VPN Client |
| |
VPN Performance |
| |
DNS Options |
| |
DNS over TLS Providers |
| |
Captive Portal | true | |
Wake on LAN | true | |
Online Detection | true | |
Max Concurrent VPN Tunnels | , | |
Management | All Devices Management |
|
Per-Devices Management |
| |
Content Management |
| |
System | Local Control Method |
|
Remote Control Method |
| |
Firmware Upgrade |
| |
Reliability |
| |
Diagnostic Tools |
| |
Languages |
| |
Dashboard | Panel | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
