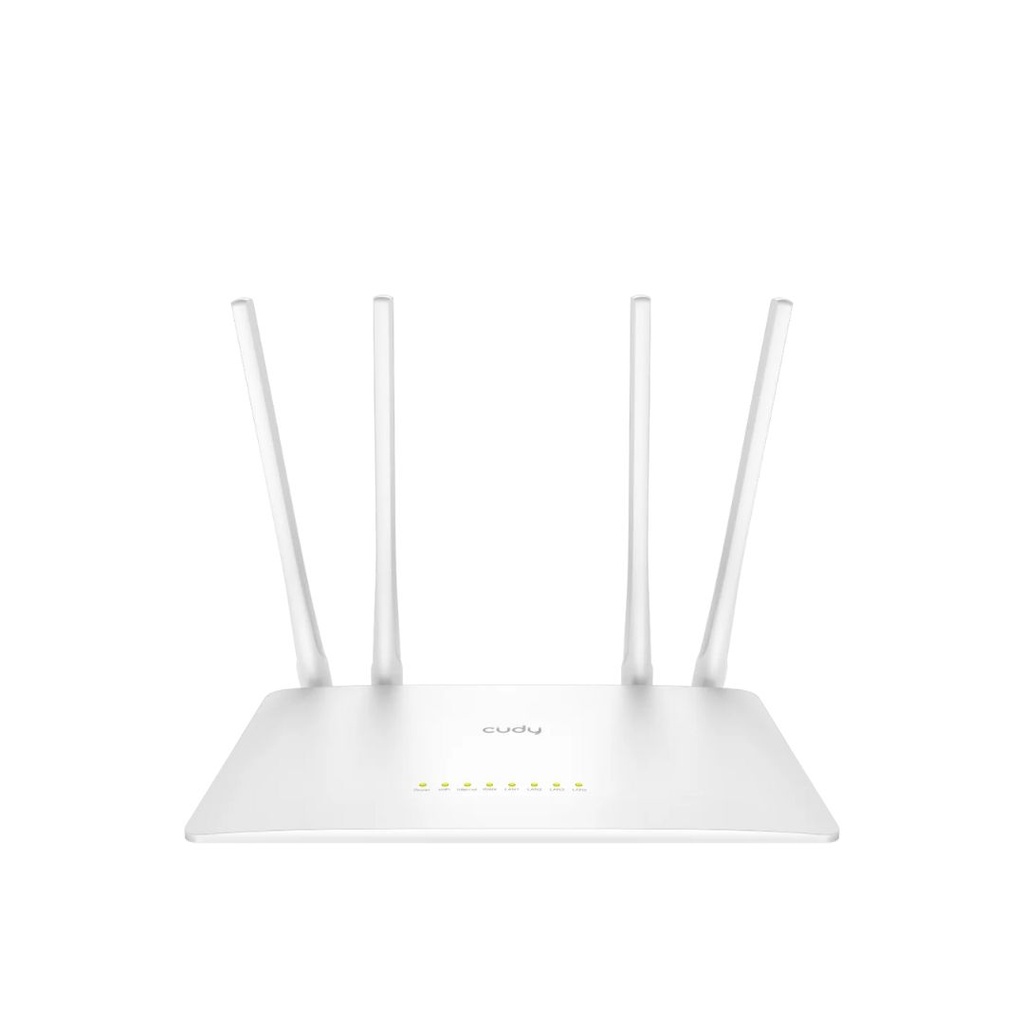

Cudy 300 Mbps Multi-Mode Wi-Fi Router Model: WR300S

https://danoun.odoo.com/web/image/product.template/2678/image_1920?unique=eae3ee1

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
Brand: Cudy
Cudy
Cudy
Model Number :
WR300S
Categories :
Routers , Coming Soon
Tags :
  • A WiFi router with five Ethernet ports and four antennas built for long-range coverage allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.
    •  300 Mbps Wi-Fi 1
    •  5× Fast Ethernet Ports
    •  Covers 90 m² (950 ft²) 2
    •  Router/AP/RE/WISP/Client/Mesh Modes
    •  VPN Client of WireGuard, PPTP, L2TP
    •  Cudy App

Hardware Specs :

Model VersionWR300S 1.0
CPUChipsetMT7628
CPU Details580 MHz Single-Core, MIPS24KEC
Memory/StorageFlash/ROM8 MB (64 Mbit ) NOR
DDR/RAM64 MB (512 Mbit) DDR2
Wireless2.4 GHz Wi-Fi Speed300 Mbps
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Fixed
FEM or PA/LNA2.4 GHz: 2× Internal
Range PerformanceMax: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces10/100 Mbps RJ45 Ports5
Ethernet Notes1× WAN port, the rest are LAN ports
LED
  • System
  • Wi-Fi
  • Internet
  • WAN
  • LAN
Physical ButtonsReset/WPS Button
Power InputDC Jack
PowerPower MethodsDC
DC5V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 5V 1A DC
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallation
  • Desktop
  • Wall-mount
Dimension220×135×30 mm
8.66×5.31×1.18 inches
Product Weight249.8 g (8.81 oz.)
Package Content
  • WR300S
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformationRetail Package WeightEU: 612.5 g (21.61 oz.)
Retail Package Dimension290×250×64 mm
11.42×9.84×2.52 inches
Units per Carton16
Carton Dimension53.8×51.6×31.3 cm
21.18×20.31×12.32 inches
Carton Gross WeightEU: 10.9 kg (24.03 lbs)
Carton Net WeightEU: 9.8 kg (21.61 lbs)



Software Specs:

Model VersionWR300S 1.0
WirelessWi-Fi StandardsWi-Fi 4
Max Wi-Fi Modulation64-QAM
Max Capacity64
Recommended Client Upper Limit30
Max Wi-Fi Channel Width40 MHz
Wi-Fi SecurityWPA/WPA2/WPA3
Guest Network2.4 GHz
WPSTrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
MeshCudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Internet Failover Sequence
  • WAN
  • WISP
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Client
  • Wireguard
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LANTrue
Online DetectionTrue
ManagementAll Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLED ControlTrue
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • TR069/TR098/TR111/TR181
Firmware UpgradeLocal Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
DashboardPanel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
