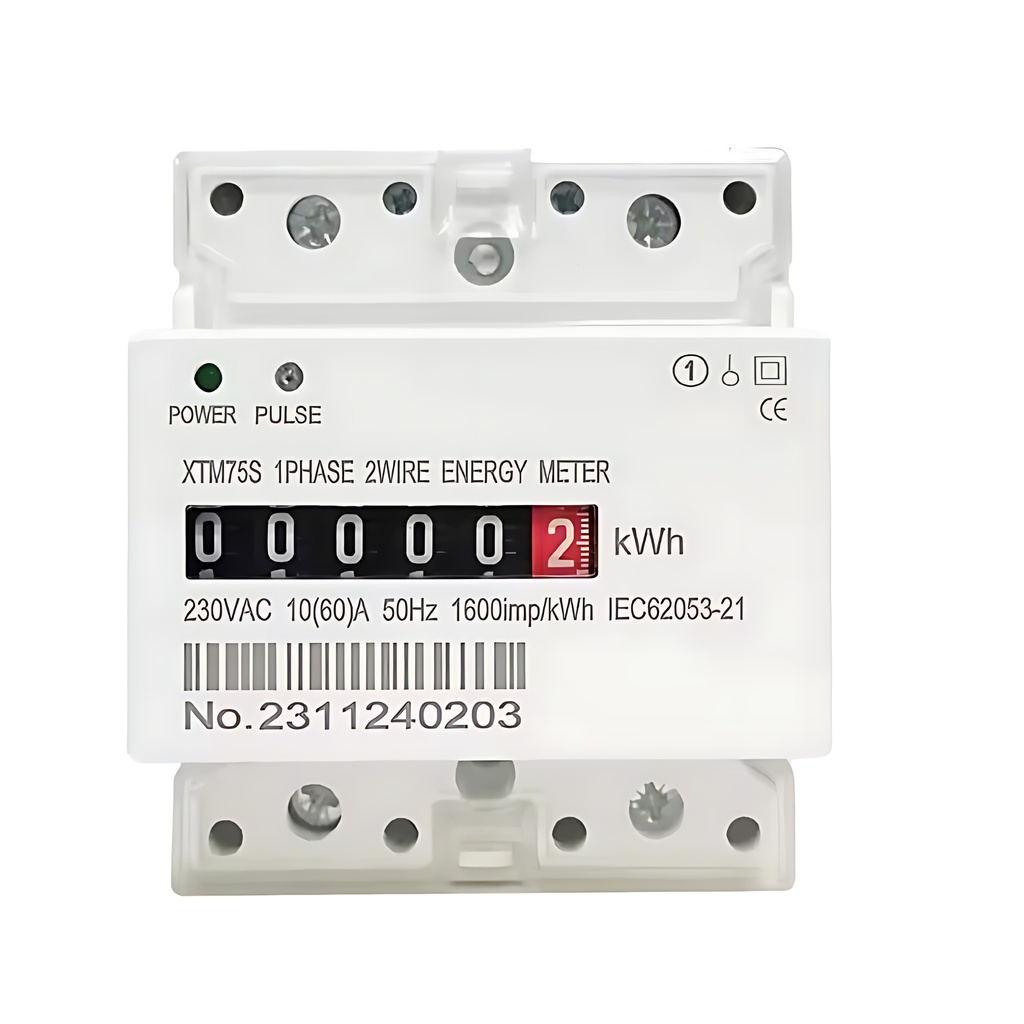

XTM75S 1 Phase 2 Wire Energy Meter
| Brand: XTM |
Model Number :
XTM75SCategories :
Adjustable & Voltage RegulatorsXTM75S 1 Phase 2 Wire Energy Meter
| Model | XTM75S-1 |
| Rated Voltage | 120V/230V |
| Rated Current | 2.5(10),5(20), 10(40),15(60), 20(80),30(100), |
| Accuracy Class | 1 |
| Starting Current | 0.04% |
| Insulation Performance | Power frequency AC voltage of 2kV for 1 minute, impulse voltage of 6kV |
| Port | Pulse |
| Communication Protocol | None |
| Display Type | Register |
| Active Power | Yes |
| Voltage | None |
| Current | None |
| Power | None |
| Power Factor | None |
| Frequency | None |
| Rate | None |
| Anti flaming | Self - extinguish |
| Color | White |
| Installation method | 35mm Guide Rail Type |
| Volume | 68mmx75mmx88mm |
