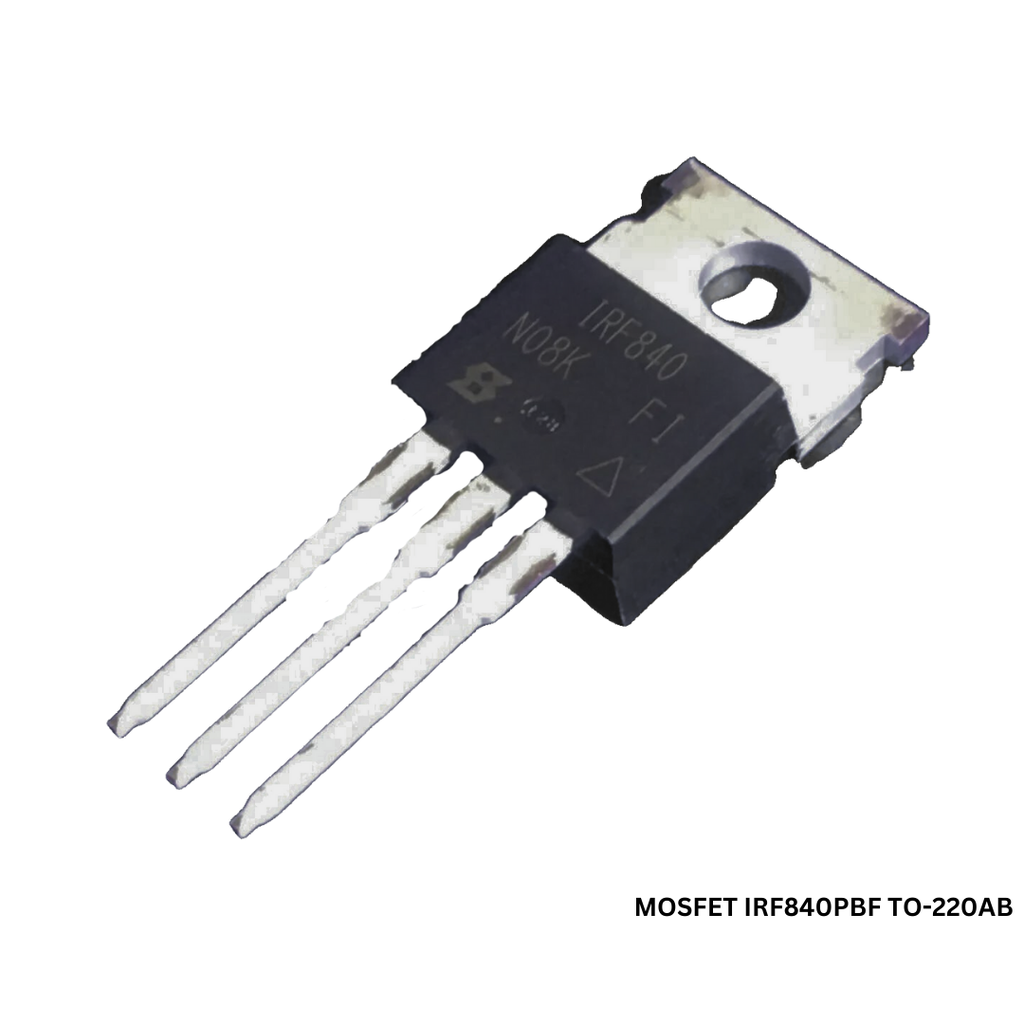

Mosfet IRF840PBF TO-220AB®

The MOSFET IRF840PBF TO-220AB® is a power MOSFET device that is designed for high-speed switching applications. It is housed in a TO-220AB package and offers low on-state resistance and fast switching speeds.

Specification:

- Package Type: TO-220AB

- Drain-Source Voltage (Vdss): 500V

- Drain-Source On-Resistance (Rds(on)): 0.85Ω

- Continuous Drain Current (Id): 8A

- Gate-Source Voltage (Vgs): ±20V

- Total Gate Charge (Qg): 94nC

- Operating Temperature Range: -55°C to 175°C

Features:

- Low on-state resistance for efficient power dissipation

- Fast switching speed for high-speed switching applications

- Enhanced avalanche ruggedness for increased reliability

- Low gate drive requirements for easy control

- High power density for compact designs

Benefits:

- Superior performance in high-speed switching applications

- Improved power dissipation for efficient operation

- Increased reliability and durability in harsh conditions

- Easy control and integration into existing systems

- Small package size allows for compact and space-saving designs

Applications:

- Switching power supplies

- DC-DC converters

- Motor control

- Audio amplifiers

- Industrial equipment

- Automotive systems

- Robotics

- LED lighting systems
