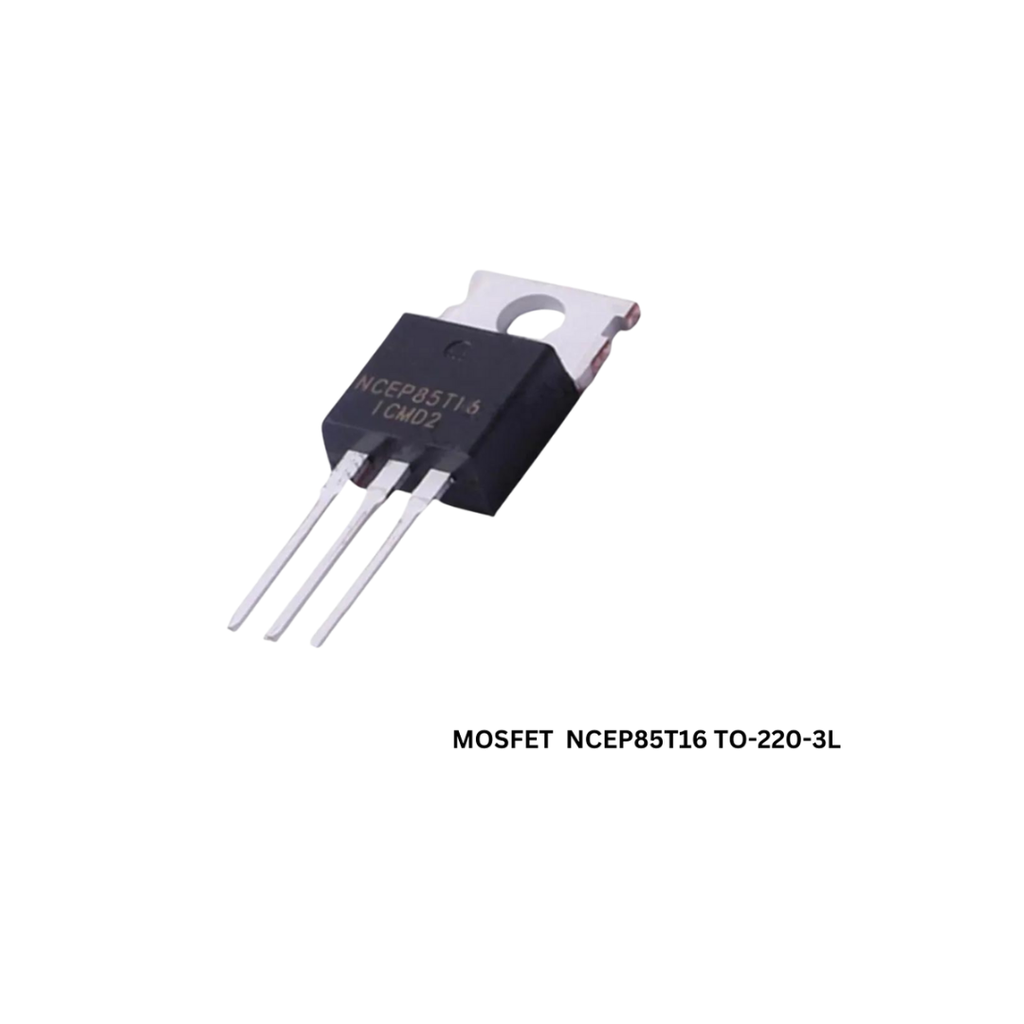

MOSFET NCEP85T16 TO-220-3L®

https://www.danoun-tech.com/web/image/product.template/1582/image_1920?unique=90b9408

$ 2.25 2.25 USD $ 2.25

$ 1.50

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    MOSFETs

    MOSFET NCEP85T16 TO-220-3L®


    The NCEP85T16 is a high-performance, N-Channel Enhancement Mode MOSFET. It is designed for use in a wide variety of applications, including power supplies, motor control, and switching. The NCEP85T16 features a low on-resistance, fast switching speed, and high-current capability. It is also easy to drive and is compatible with a wide range of microcontrollers.


    **Specification**


    * **Drain-Source Voltage (VDS):** 160V

    * **Drain Current (ID):** 85A

    * **Pulsed Drain Current (IDM):** 170A

    * **Gate-Source Voltage (VGS):** ±20V

    * **Gate-Source Threshold Voltage (VGS(th)):** 2.5V to 4.5V

    * **On-Resistance (RDS(on)):** 10mΩ (typ.)

    * **Switching Time (tr, tf):** 15ns (typ.)

    * **Capacitance (Ciss, Coss, Crss):** 1000pF (typ.)

    * **Package:** TO-220-3L


    **Applications**


    * **Power Supplies:** The NCEP85T16 is ideal for use in power supplies, where it can be used to control the flow of current.

    * **Motor Control:** The NCEP85T16 is also well-suited for use in motor control applications, where it can be used to control the speed and direction of a motor.

    * **Switching:** The NCEP85T16 can also be used in switching applications, where it can be used to turn a load on or off.


    **Features**


    * **High-Performance MOSFET:** The NCEP85T16 is a high-performance MOSFET that offers a low on-resistance, fast switching speed, and high-current capability.

    * **Easy to Drive:** The NCEP85T16 is easy to drive and is compatible with a wide range of microcontrollers.

    * **Wide Range of Applications:** The NCEP85T16 can be used in a wide range of applications, including power supplies, motor control, and switching.
