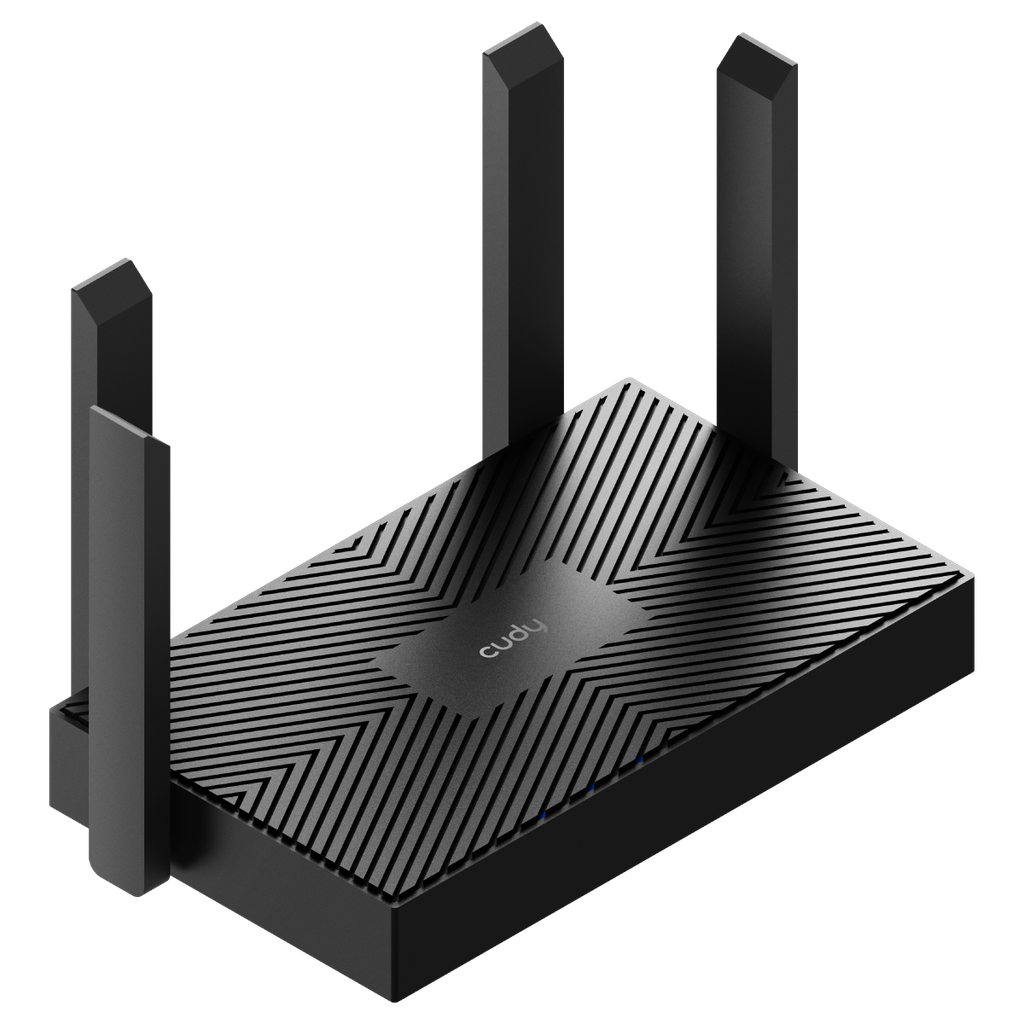

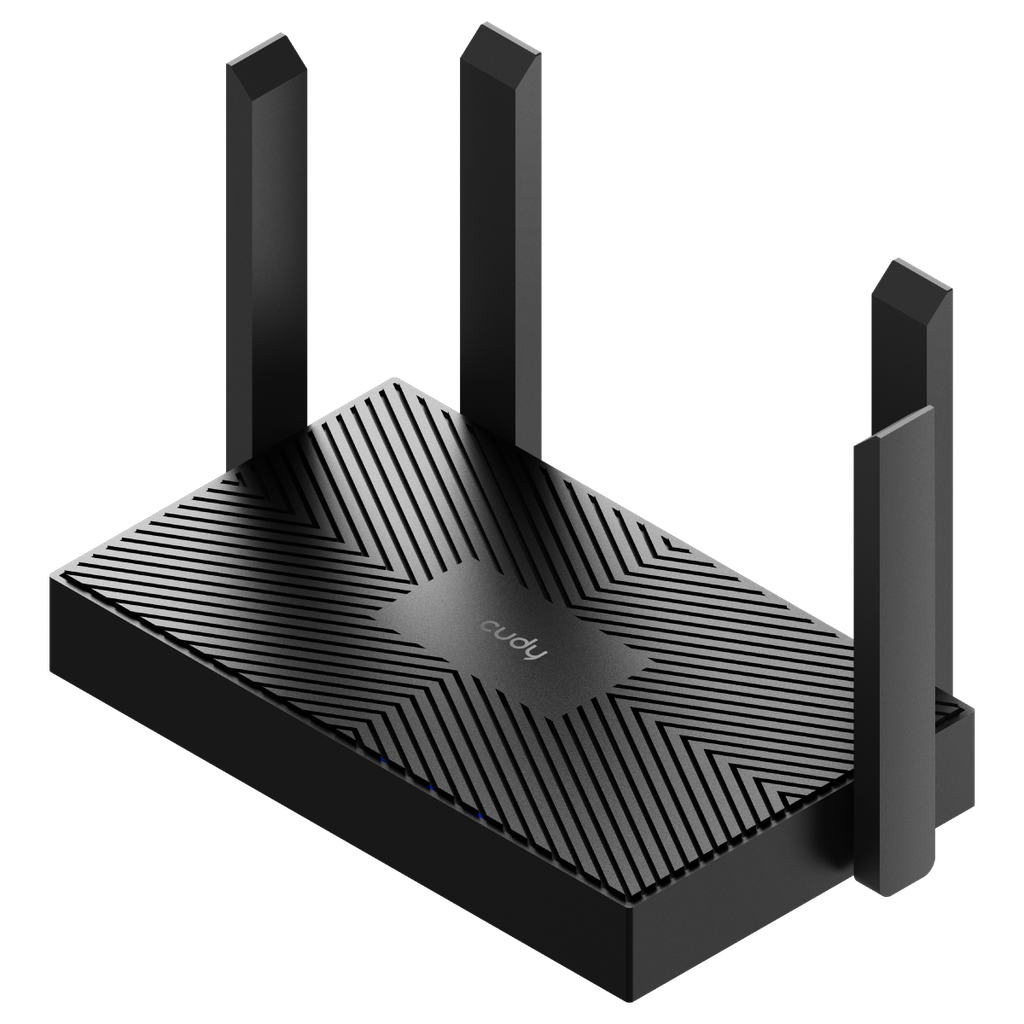

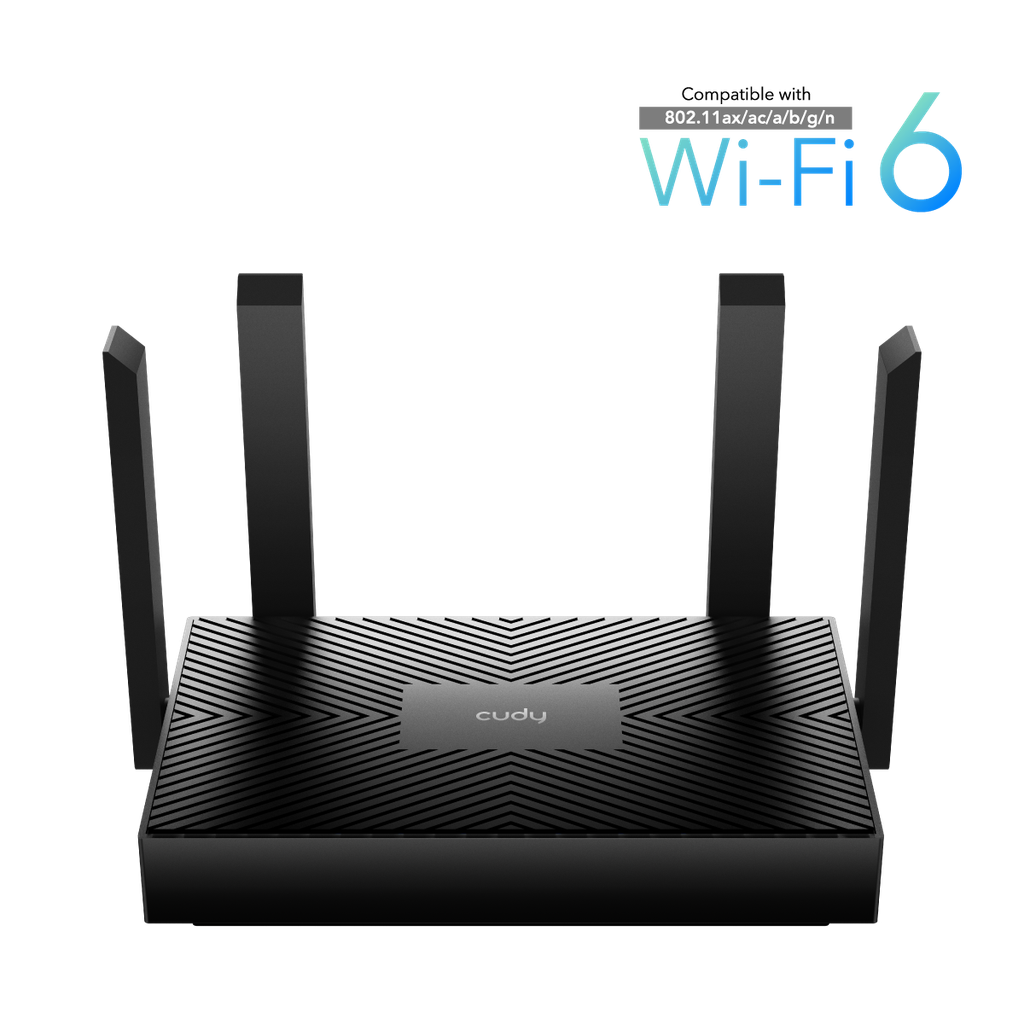

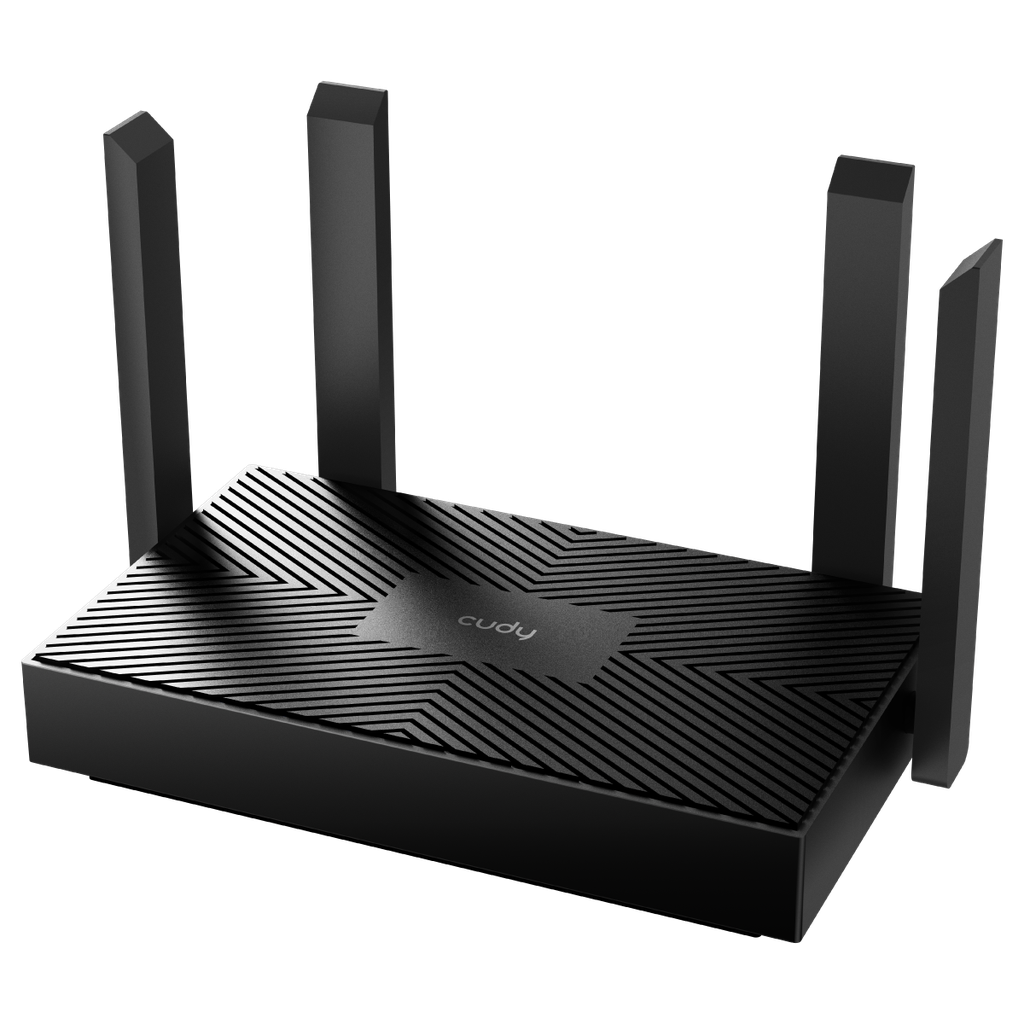

Cudy AX1500 Gigabit Wi-Fi 6 Router, Model: WR1500
| Brand: Cudy |
Cudy AX1500 Gigabit Wi-Fi 6 Router, Model: WR1500
● Super-Fast AX1500 Wi-Fi 6
● 4× 10/100/1000 Mbps Ethernet Ports
● 4× External High-Gain Antennas
● OFDMA, Beamforming and MU-MIMO
Specifications:
Hardware Specs
| Model Version | WR1500 1.0 | |
|---|---|---|
| CPU | CPU Details | 1 GHz Single-Core CPU |
| Memory/Stroage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 1201 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| Range Performance | Max: 120 m (394 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') | |
| Wi-Fi Transmission Power |
| |

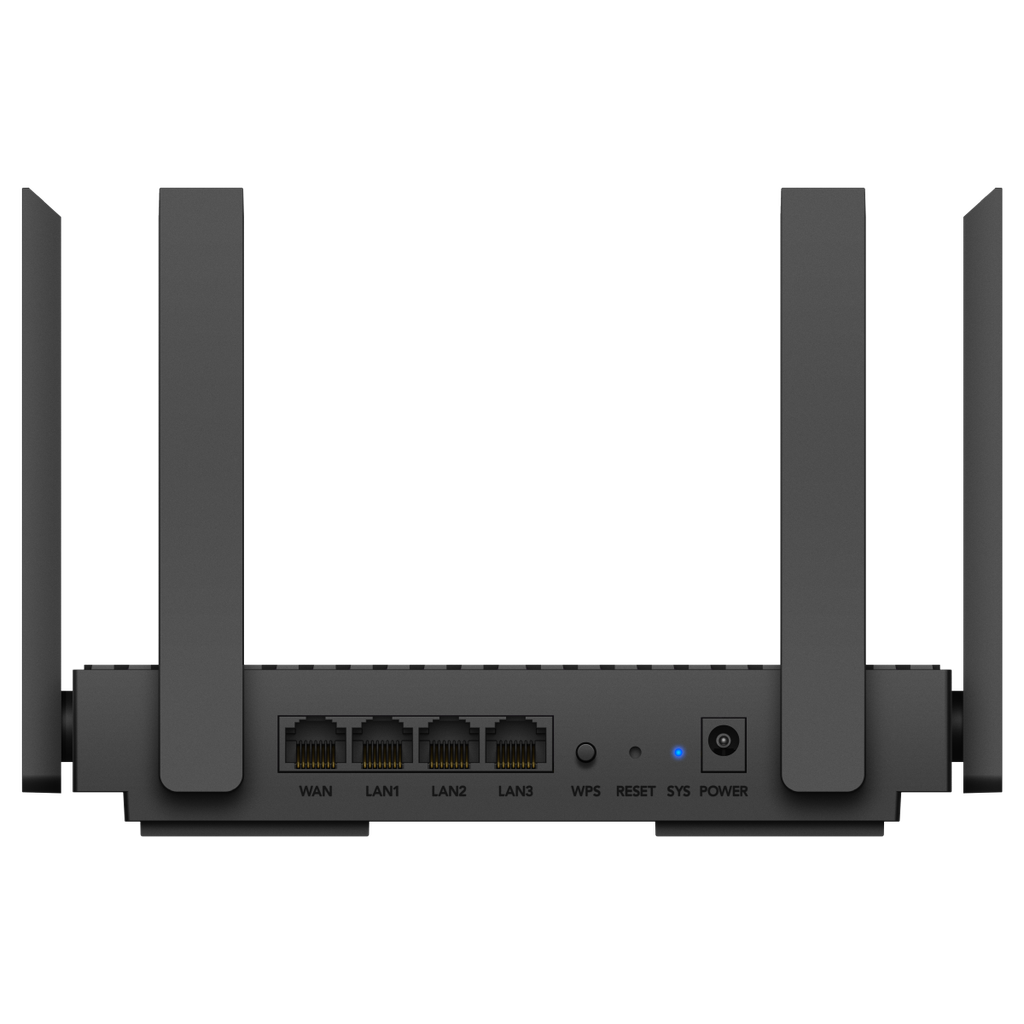

| Interfaces | Gigabit RJ45 Ports | 4 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED | System | |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Reliability | Environment |
|
| Mechanical | Installation |
|
| Dimension | 183.3×109×35 mm 7.22×4.29×1.38 inches | |
| Package Content |
| |
| Ordering Informaiton | Retail Package Dimension | 240×230×60 mm 9.45×9.06×2.36 inches |
| Units per Carton | 20 | |
| Carton Dimension | 49.5×32.5×48 cm | |
| Carton Gross Weight | 11.6 kg (25.57 lbs) | |
| Carton Net Weight | 10.7 kg (23.59 lbs) |
Software Specs
| Model Version | WR1500 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 60 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2) | |
| WPS | true | |
| General | Operation Modes |
|
| Mesh | EasyMesh R2 | |
| Mesh Backhaul |
| |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP | Server | |
| IP Versions | IPv4 | |
| IPTV/VLAN | Tag VLAN | |
| IGMP | IGMP Proxy | |
| Forwarding |
| |
| Firewall |
| |
| Utilities | VPN Client |
|
| DNS Options | Manual DNS | |
| Online Detection | true | |
| Management | All Devices Management |
|
| Content Management |
| |
| System | Local Control Method | Config Web Page |
| Remote Control Method |
| |
| Firmware Upgrade | Local Update | |
| Reliability | Backup and Restore | |
| Languages |
|
