Cudy AX1800 Gigabit Wi-Fi 6 Mesh Router, Model: X6
This product is no longer available.
| Brand: Cudy |
Cudy AX1800 Gigabit Wi-Fi 6 Mesh Router, Model: X6
● Super-Fast AX1800 Wi-Fi 6
● Powerful Dual-Core CPU
● 5× Gigabit Ports
● 4× Fixed Omni-Directional Antennas
● VPN Server and Client
● DDNS
● Cudy Mesh
Specifications:
Hardware Specs
| Model Version | X6 2.0 | |
|---|---|---|
| CPU | CPU Details | 880 MHz Dual-Core, MIPS1004Kc |
| Memory/Stroage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 1201 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| 5 GHz Anntenna Gain Max | 6.04dBi | |
| 2.4 GHz Antenna Gain Max | 5.97dBi | |
| FEM or PA/LNA |
| |
| Range Performance | Max: 120 m (394 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') | |
| Wi-Fi Transmission Power |
| |
| Interfaces | Gigabit RJ45 Ports | 5 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED | System | |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Reliability | Environment |
|
| Mechanical | Installation |
|
| Dimension | 210×85×15.6 mm 8.27×3.35×0.61 inches | |

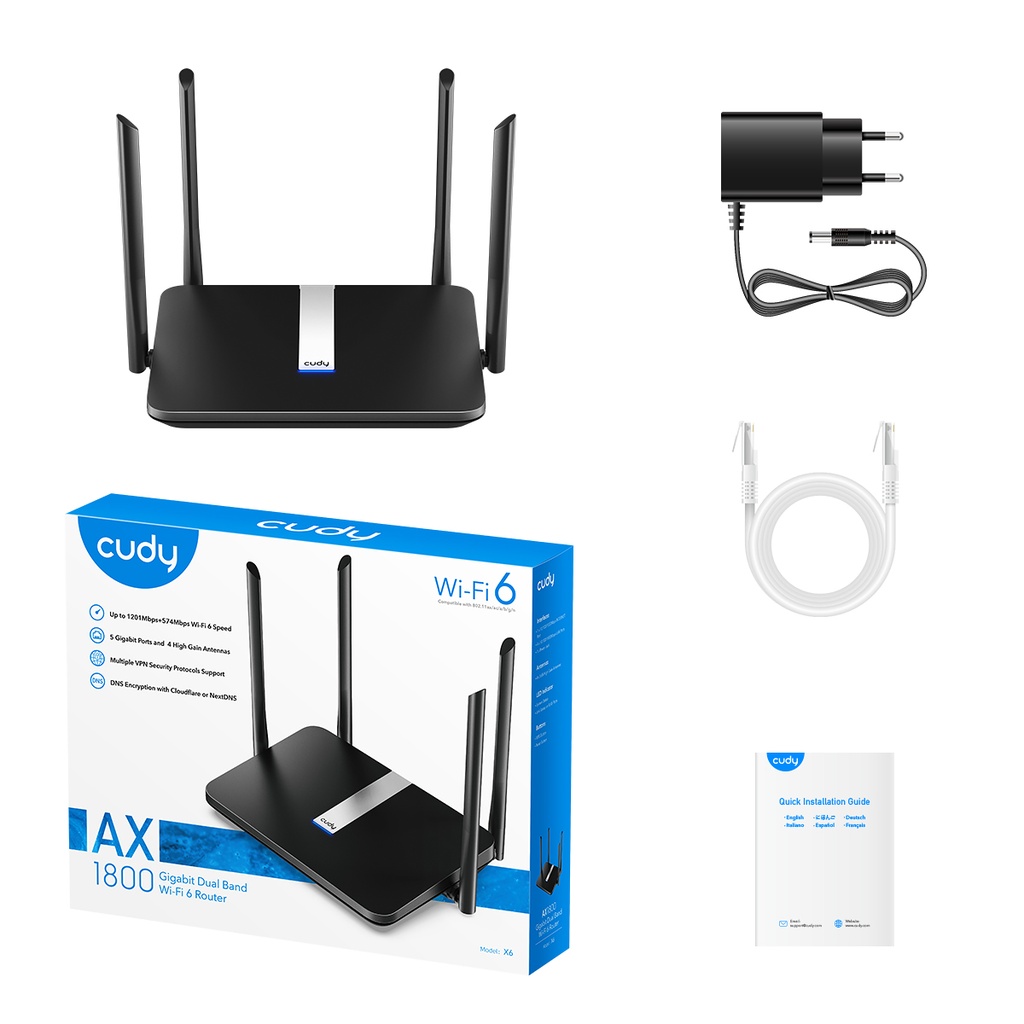

| Package Content |
| |
| Ordering Informaiton | Retail Package Dimension | 226×95.5×98.5 mm 8.9×3.76×3.88 inches |
| Units per Carton | 10 | |
| Carton Dimension | 49.5×23.8×21.5 cm |
Software Specs
| Model Version | X6 2.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency |
| |
| Max Capacity | 256 | |
| Recommended Client Upper Limit | 80 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2/WPA3) | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | true | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | true | |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Captive Portal | true | |
| Wake on LAN | true | |
| Online Detection | true | |
| Management | All Devices Management |
|
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | true |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
