Cudy AC1200 Gigabit Wi-Fi Router, Model: WR1300E

Price:

$ 18.50
  2. Shop
  3. Cudy AC1200 Gigabit Wi-Fi Router, Model: WR1300E
Cudy N300 Wi-Fi Router, Model: WR300
Cudy N300 Wi-Fi Router, Model: WR300
$ 12.00
$ 12.00
Cudy AX1500 Gigabit Wi-Fi 6 Router, Model: WR1500
Cudy AX1500 Gigabit Wi-Fi 6 Router, Model: WR1500
$ 25.00
$ 25.00

Cudy AC1200 Gigabit Wi-Fi Router, Model: WR1300E

https://www.danoun-tech.com/web/image/product.template/1815/image_1920?unique=86c5035

This product is no longer available.

Brand: Cudy
Cudy
Cudy
Model Number :
Categories :
Routers

Cudy AC1200 Gigabit Wi-Fi Router, Model: WR1300E

● AC1200 Dual Band Wi-Fi Speed

● 8 MB Flash and 128 MB RAM

● 3× Gigabit Ethernet Ports

● 4× 5 dBi High Gain Antennas

● PPTP/L2TP VPN Client

● 4-IN-1 Mode: Router/Access Point/Repeater/WISP


Specifications:

Hardware Specs

Model VersionWR1300E 1.0
CPUCPU Details880 MHz Dual-Core, MIPS1004Kc
Memory/StroageFlash/ROM8 MB (64 Mbit ) NOR
DDR/RAM128 MB (1 Gbit) DDR3
Wireless5 GHz Wi-Fi Speed867Mbps
Wi-Fi BandsUS
2.4 GHz Wi-Fi Speed300 Mbps
5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
Wi-Fi Antennas4× Fixed
5 GHz Anntenna Gain Max5.99dBi
2.4 GHz Antenna Gain Max5.24dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Range PerformanceMax: 120 m (394 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall PerformanceTwo wooden walls with thickness < 3.8 cm (1.5'')
One concrete wall with thickness < 20 cm (7'')
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz)
InterfacesGigabit RJ45 Ports3
Ethernet Notes1× WAN port, the rest are LAN ports1× WAN port, the rest are LAN ports
LED
  • 5 GHz Wi-Fi
  • 2.4 GHz Wi-Fi
  • LAN
  • Internet
  • Power
  • WPS
  • System
Physical Buttons
  • WPS Button
  • Reset Button
Power InputDC Jack
PowerPower MethodsDC
DC12V 1A
Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)7.5W
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
MechanicalInstallation
  • Desktop
  • Wall-Mounting
Dimension183.3×109×35 mm
7.22×4.29×1.38 inches

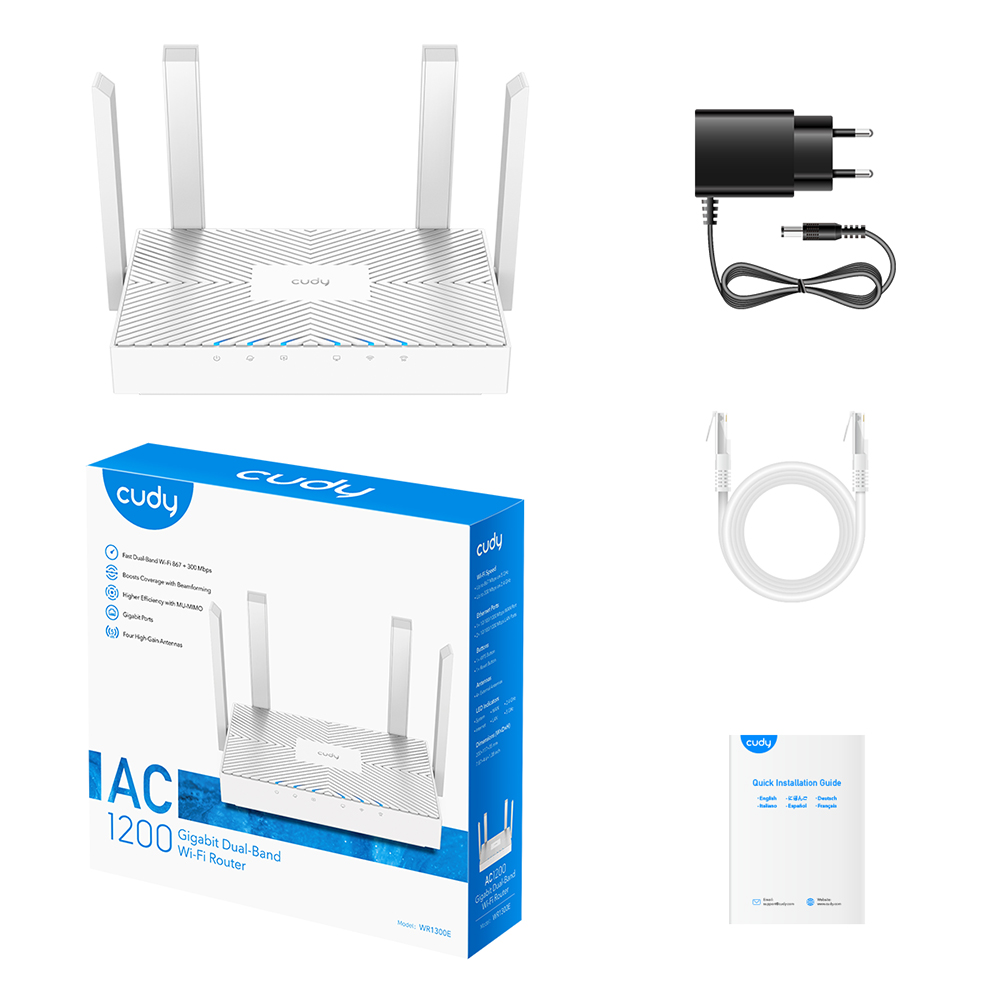

Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering InformaitonRetail Package Dimension240×230×60 mm
9.45×9.06×2.36 inches
Units per Carton20
Carton Dimension49.5×32.5×48 cm
Carton Gross Weight12.2 kg (26.9 lbs)
Carton Net Weight11.1 kg (24.47 lbs)


Software Specs

Model VersionWR1300E 1.0
WirelessWi-Fi StandardsWi-Fi 5
Max Wi-Fi Modulation256-QAM
Wi-Fi EfficiencyMU-MIMO
Wi-Fi Efficiency NoteMU-MIMO available on 5 GHz
Max Capacity128
Recommended Client Upper Limit50
Max Wi-Fi Channel Width80 MHz
Wi-Fi SecurityWPA-PSK (WPA/WPA2)
Guest Network2.4 GHz, 5 GHz
WPStrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
NetworkQoSPer-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP VersionsIPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Client
  • Wireguard
  • OpenVPN
  • PPTP
  • L2TP
VPN Performance
  • OpenVPN Client (UL/DL): 22 / 24.7 Mbps
  • OpenVPN Server (UL/DL): 22 / 20.9 Mbps
  • WireGuard Client (UL/DL): 142 / 233.9 Mbps
  • WireGuard Server (UL/DL): 213 / 152 Mbps
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
Wake on LANtrue
Online Detectiontrue
Max Concurrent VPN Tunnels
  • IPSec: 20
  • PPTP/L2TP: 16
  • OpenVPN: 16
GeneralMax Concurrent Sessions25000
ManagementAll Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
SystemLocal Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • TR069/TR098/TR111/TR181
  • Config Page via HTTP
Firmware UpgradeLocal Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • German
  • Spanish
  • French
  • Hebrew
  • Italian
  • Portuguese
DashboardPanelInternet Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
ChartsInternet Speed, WISP Speed, Wi-Fi Speed
